CRL S0GC900RB Oil Rubbed Bronze 90 Sleeve Over Glass Clamp

C.R. Laurence S0GC900RB Oil Rubbed Bronze 90 Degree "Sleeve Over" Glass Clamp is engineered to provide robust support for glass panels ranging from 5/16" to 1/2" (8 to 12 mm) thick. Crafted from solid brass, this stylish clamp not only enhances the aesthetic of your installation but also delivers exceptional durability and strength. Designed specifically for monolithic tempered glass, it effectively assists with shear forces, ensuring that your glass panels remain securely in position. The clamp is particularly beneficial during the installation process, as it holds glass panels in place while silicone sealant cures, preventing water leakage and providing the necessary pull strength to keep the panels together. No special fabrication of the glass is required, simplifying your installation efforts. The nylon-tipped Allen set screws ensure a secure fit without compromising the integrity of the glass. Included with the clamp are gaskets, further enhancing its functionality. However, please note that these clamps are not intended to replace headers or support bars. For specific applications, consulting C.R. Laurence Frameless Shower Technical Sales is advisable. With a striking oil-rubbed bronze finish, the S0GC900RB combines form and function for an elegant addition to any glass installation.

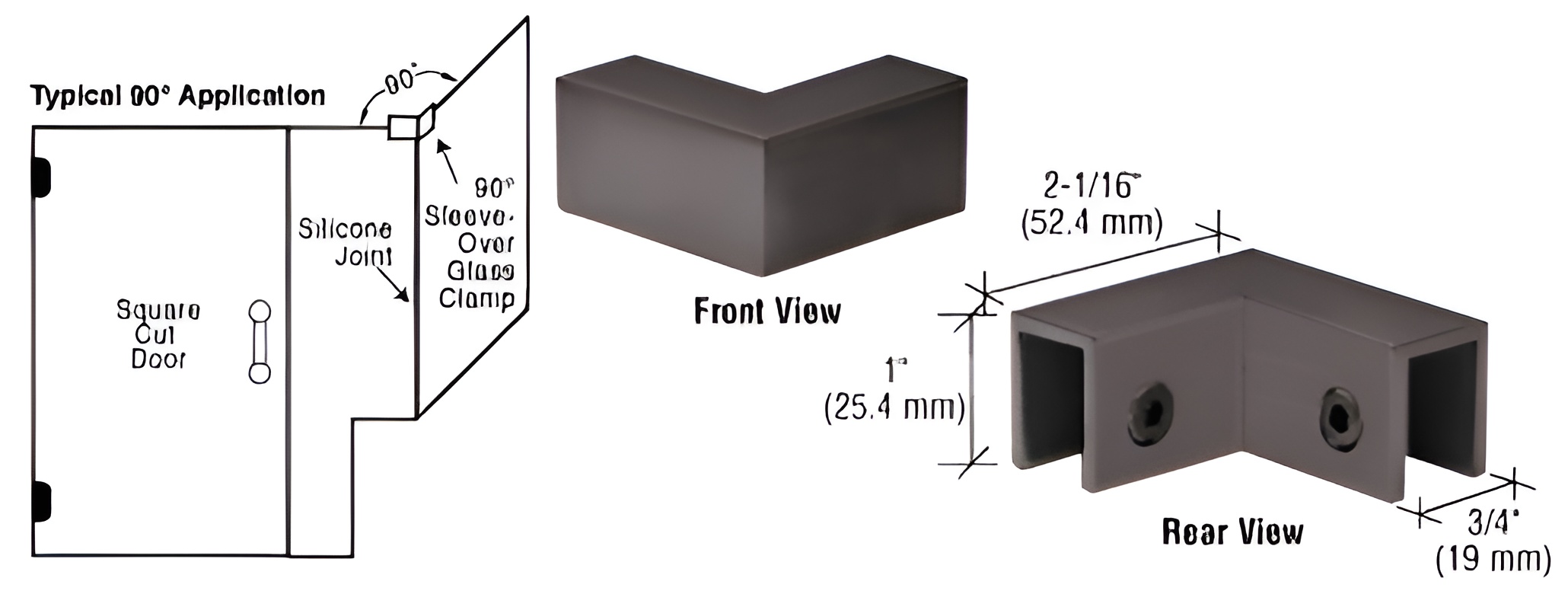

Oil Rubbed Bronze 90 Degree "Sleeve Over" Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
