CRL S0GC90BBRZ Brushed Bronze 90 Sleeve Over Glass Clamp

C.R. Laurence S0GC90BBRZ Brushed Bronze 90 Degree "Sleeve Over" Glass Clamp is engineered to securely hold glass panels at a 90-degree angle, making it an ideal choice for a variety of architectural applications. Designed for use with monolithic tempered glass ranging from 5/16" to 1/2" (8 to 12 mm) thick, this clamp provides robust support while ensuring ease of installation without the need for special glass fabrication. Constructed from solid brass, the brushed bronze finish adds an elegant touch, seamlessly blending with modern aesthetics. The clamp is instrumental in managing shear forces exerted on glass panels, effectively holding them in position as silicone sealants cure. This feature not only helps prevent water leakage but also enhances the structural integrity of the installation. Installation is straightforward, with clamps secured by nylon-tipped Allen set screws for a reliable grip. Included gaskets ensure a snug fit, boosting performance while protecting the glass surface. However, it is important to note that these clamps should not replace headers or support bars, ensuring safety and compliance. Elevate your next project with the durability and sophistication of the C.R. Laurence S0GC90BBRZ Brushed Bronze Clamp-where functionality meets design excellence.

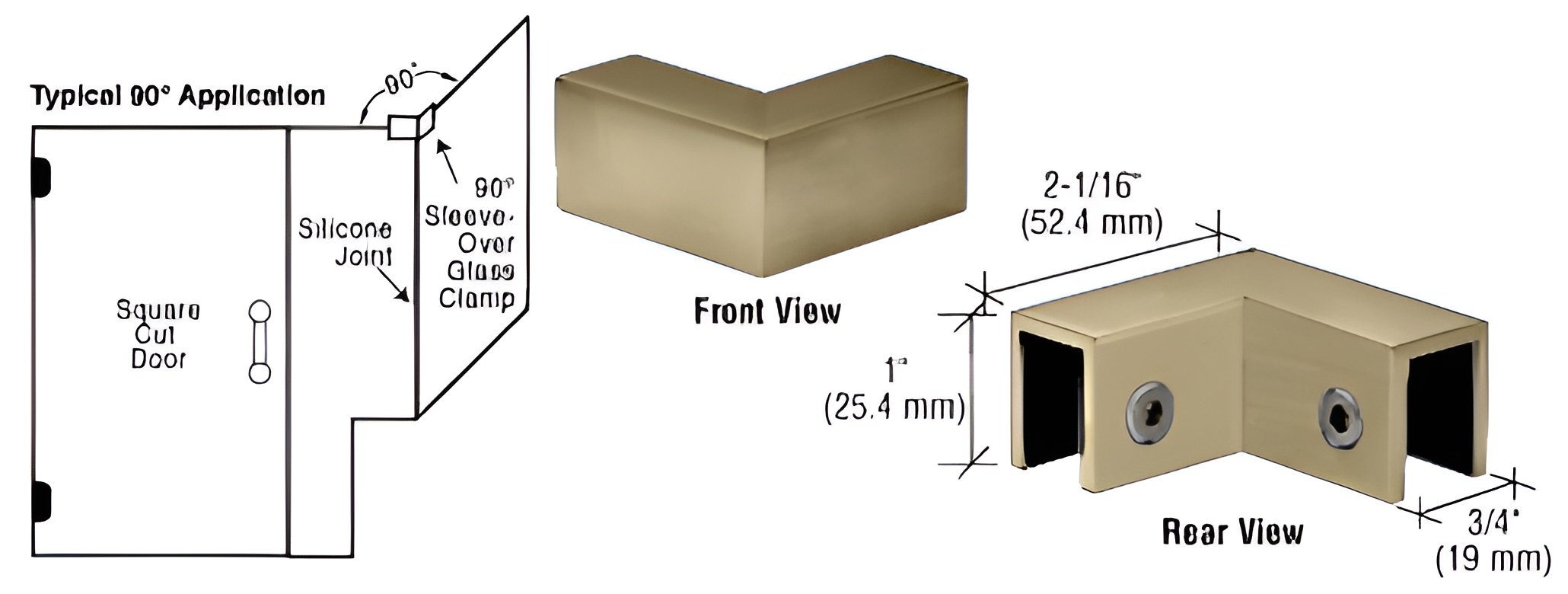

Brushed Bronze 90 Degree "Sleeve Over" Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass
• Assists With Shear Forces
• Holds Glass Panels in Position While Sealant Cures

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
