C.R. Laurence S0GC90CH Polished Chrome 90 Degree "Sleeve Over" Glass Clamp offers a robust solution for securing glass panels, designed for 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass. Crafted from solid brass and finished in polished chrome, this clamp not only enhances the aesthetic appeal of your glass installations but also ensures durability and strength. These clamps effectively manage shear forces exerted on glass panels, providing essential support during the curing process of silicone sealants. While using the clamps, no special fabrication of the glass is necessary, making installation straightforward and efficient. They hold the glass securely in place, preventing separation while the sealant adheres, thus ensuring a watertight seal. Each clamp comes equipped with gaskets and is tightened using nylon-tipped Allen set screws, ensuring a secure fit without damaging the glass. However, it’s important to note that the clamps are not designed to replace headers or support bars, making it crucial to consult CRL Frameless Shower Technical Sales for specific structural needs. Elevate your glazing projects with the reliability and elegance of the C.R. Laurence S0GC90CH clamp, perfect for both professional and residential applications.

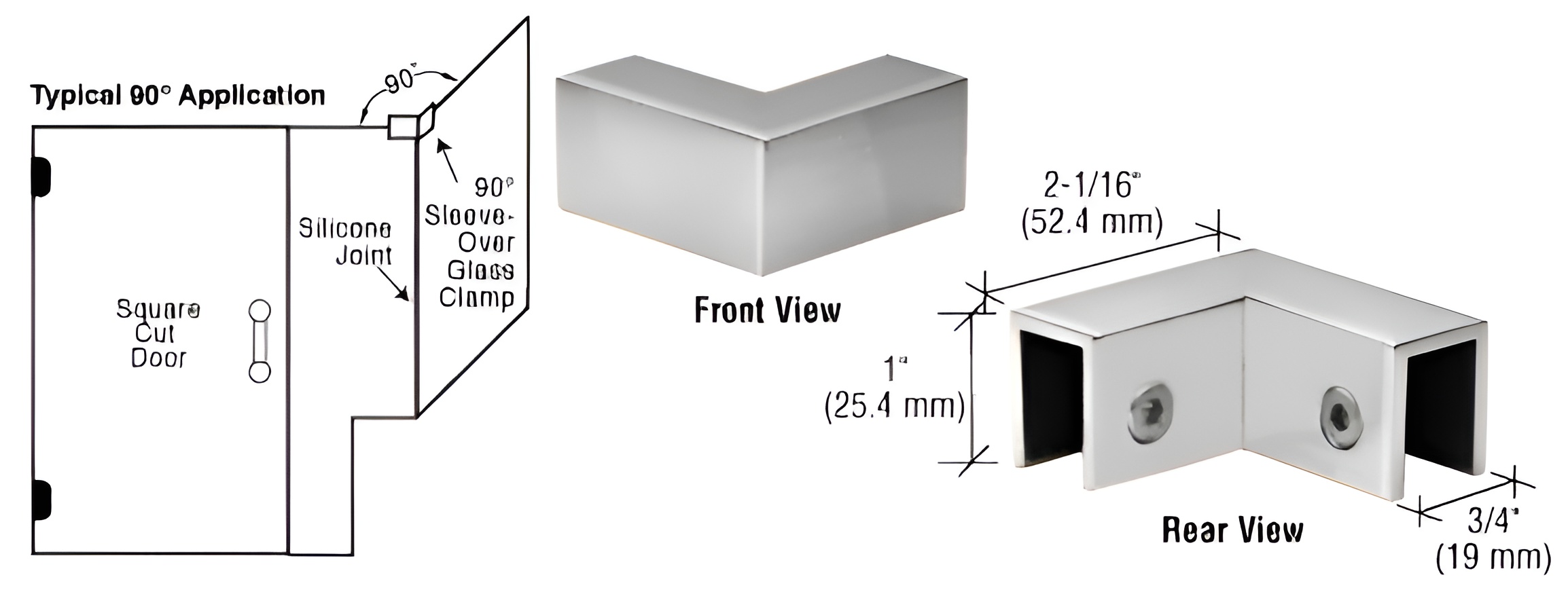

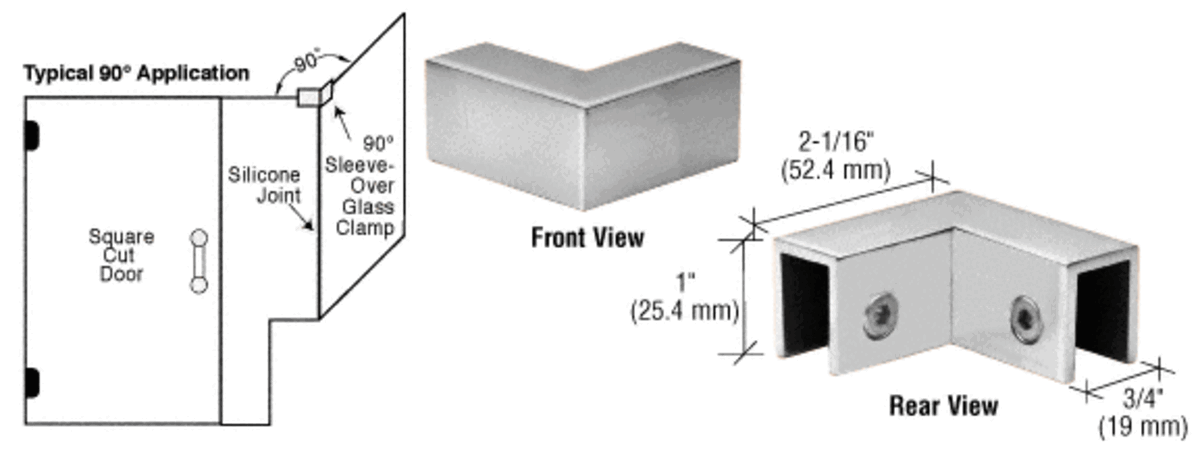

Polished Chrome 90 Degree "Sleeve Over" Glass Clamp
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glass To Glass Angle: 90
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Material: Brass
Mounting Type: Glass To Glass
Shipping Limitations: None
