C.R. Laurence S0GC90PN Polished Nickel 90 Degree "Sleeve Over" Glass Clamp is engineered for precise glass panel support, accommodating thicknesses of 5/16" to 1/2" (8 to 12 mm). Constructed from solid brass, this clamp combines durability with an elegant polished nickel finish, making it an ideal choice for modern architectural applications. Designed to work with monolithic tempered glass, the S0GC90PN effectively manages shear forces, ensuring stability and security during the installation process. This clamp plays a crucial role in holding glass panels in position while the silicone sealant cures, preventing separation and water leakage. With no special glass fabrication required, installation is straightforward and efficient. The clamp is secured with nylon-tipped Allen set screws, providing a reliable hold without compromising the glass's integrity. It is essential to note that these clamps are not a substitute for headers or support bars, making them a perfect addition to your glazing supplies when used in conjunction with proper structural support. Each unit includes gaskets for enhanced performance and ease of use. For those seeking a combination of strength and style, the C.R. Laurence S0GC90PN is a top choice in contemporary glass installation projects.

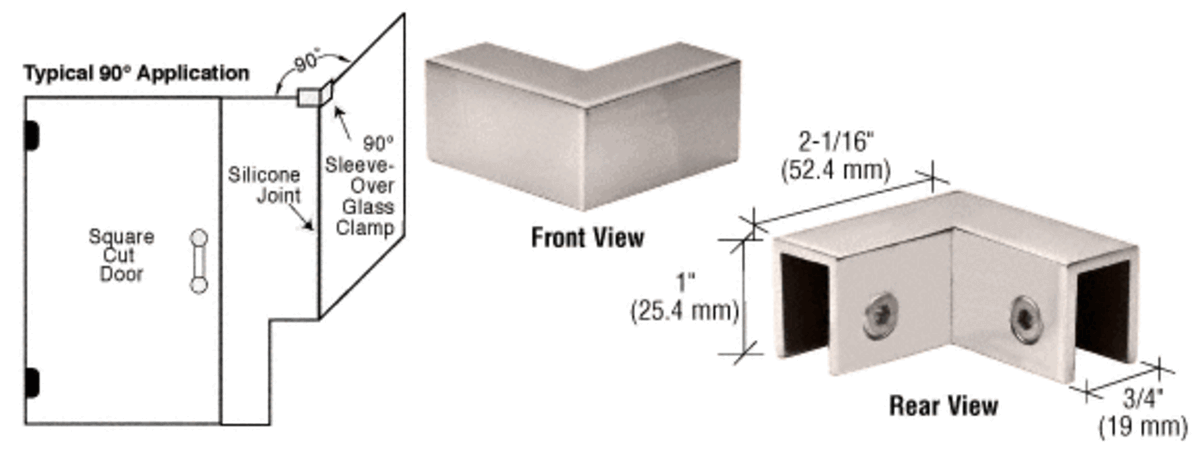

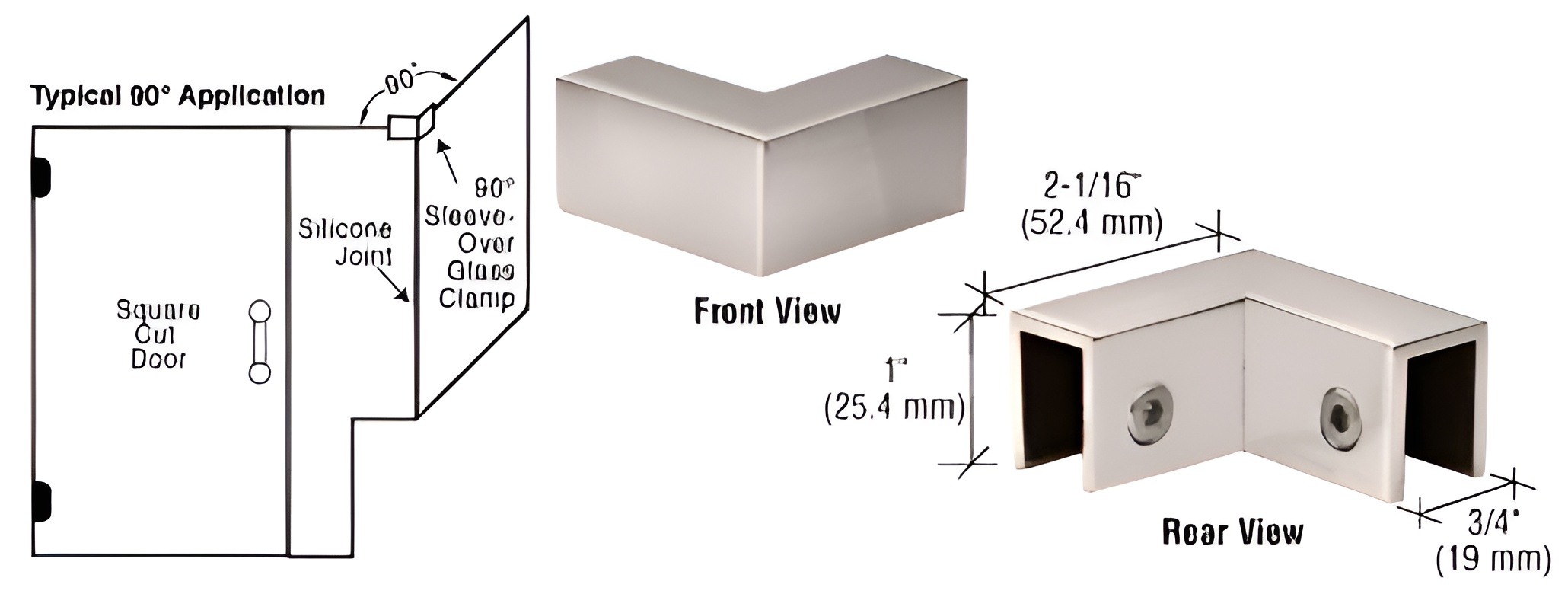

Polished Nickel 90 Degree "Sleeve Over" Glass Clamp
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Nickel
Glass To Glass Angle: 90
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Material: Brass
Mounting Type: Glass To Glass
Shipping Limitations: None
