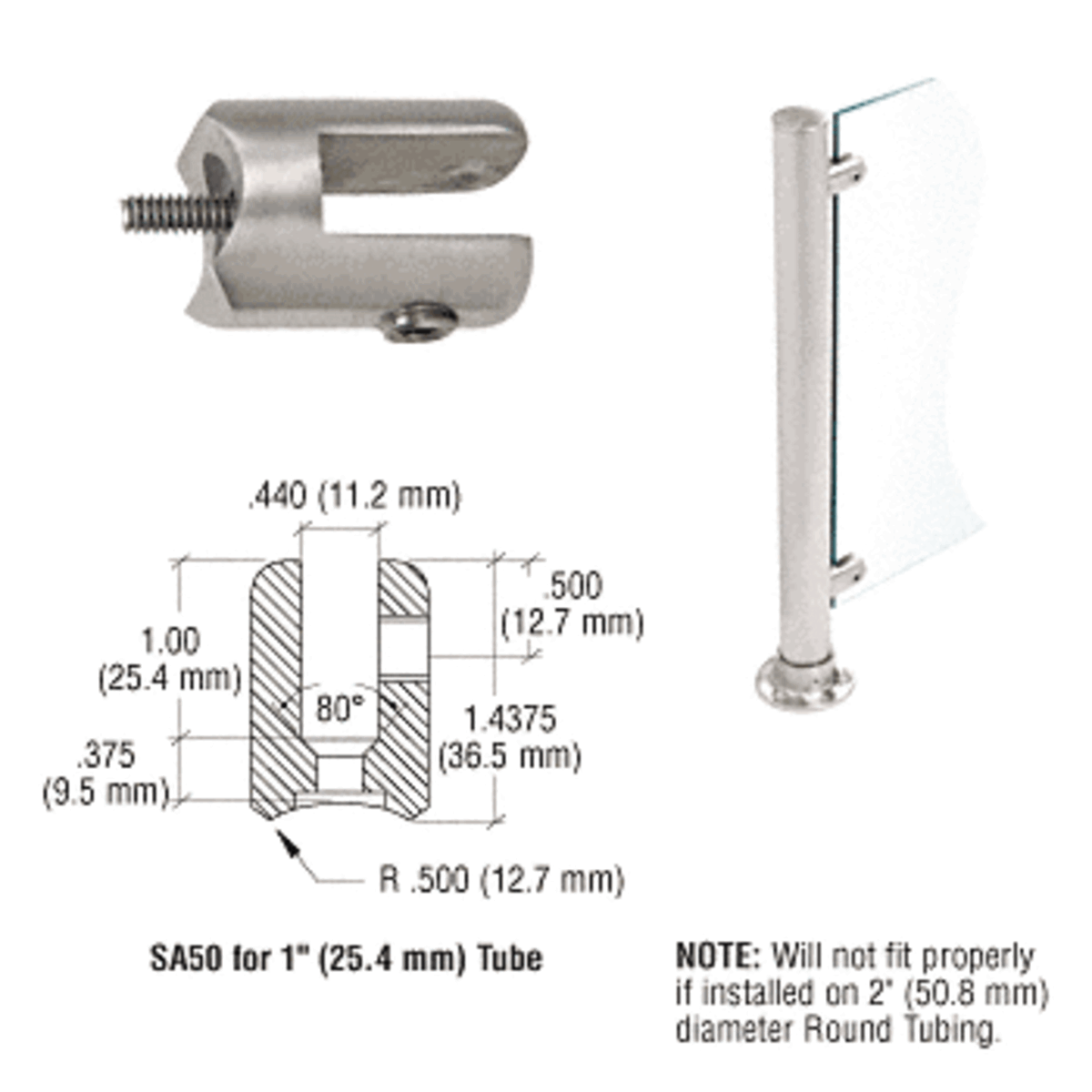

C.R. Laurence SA50BS Brushed Stainless Fixed Glass Fitting for 1" Tubing offers a sleek and modern solution for securely mounting glass panels to partition posts and sneeze guards. Constructed from durable stainless steel, this fitting is designed for use with monolithic tempered glass, accommodating thicknesses ranging from 1/4" to 3/8" (6 to 10 mm). The radius mounting base is compatible with both 1" (25.4 mm) and 1-1/2" (38.1 mm) diameter round tubing, providing versatility for various applications. Glass panels are easily secured in place with a clear vinyl gasket and a nylon-tipped set screw, ensuring a clean and polished finish. Each fitting for 1" tubing includes a 10-24 flat head screw, while the fitting for 1-1/2" tubing comes with a 1/4"-20 flat head screw, allowing for straightforward installation. It's important to note that this fitting is not suitable for 2" (51 mm) diameter round tubing. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. The C.R. Laurence SA50BS is an ideal choice for professionals seeking reliable, aesthetically pleasing glass fittings in their architectural projects.
Brushed Stainless Fixed Glass Fitting for 1" Tubing
CRL Fixed Glass Fittings offer an easy yet attractive way to secure glass panels to Partition Posts and Sneeze Guards. After mounting to the Tubing the glass panel is simply secured in place with a clear vinyl gasket and a nylon tipped set screw. Works with 1/4" to 3/8" (6 to 10 mm) glass. Can be used on 1" or 1-1/2" (25.4 or 38 mm) Tubing. Fitting for 1" (25.4 mm) tubing comes with a 10-24 Flat Head Screw; fitting for 1-1/2" (38 mm) tubing comes with a 1/4"-20 Flat Head Screw. Matching size Rivet-Nuts are available.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Fitting Type: Fixed
Glazing Thickness: 1/4 in. To 3/8 in. (6 mm To 10 mm)
Material: Stainless Steel
Shipping Limitations: None
