C.R. Laurence SA60PS Polished Stainless Fixed Glass Fitting for 1-1/2" Tubing seamlessly combines elegance and functionality, making it an ideal choice for securing glass panels in various applications, including partition posts and sneeze guards. This sleek, modern design is crafted to accommodate monolithic tempered glass with a thickness between 1/4" and 3/8" (6 to 10 mm). The radius mounting base is compatible with both 1" (25.4 mm) and 1-1/2" (38 mm) diameter round tubing, ensuring versatility in installation. Once mounted, the glass panel is held securely in place using a clear vinyl gasket and a nylon tipped set screw, providing both safety and aesthetic appeal. For added convenience, the fitting for 1" tubing includes a 10-24 flat head screw, while the fitting for 1-1/2" tubing is supplied with a 1/4"-20 flat head screw. Matching rivet-nuts are also available to complete your installation. It’s important to note that this fitting is not suitable for installation on 2" (51 mm) diameter round tubing. For optimal performance, regular maintenance is recommended to preserve the polished stainless steel finish, ensuring durability and resistance to corrosion.

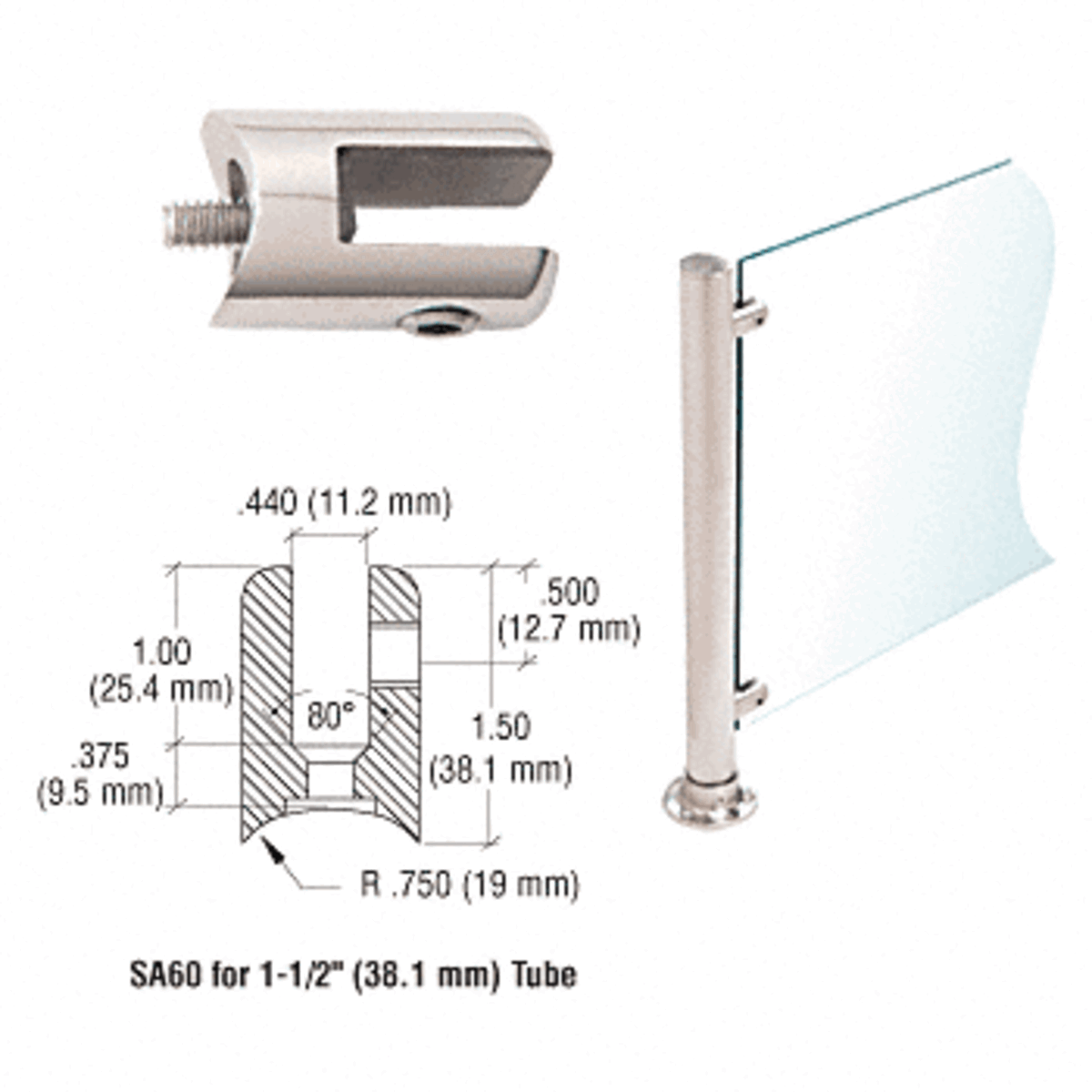

Polished Stainless Fixed Glass Fitting for 1-1/2" Tubing
CRL Fixed Glass Fittings offer an easy yet attractive way to secure glass panels to Partition Posts and Sneeze Guards. After mounting to the Tubing the glass panel is simply secured in place with a clear vinyl gasket and a nylon tipped set screw. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Can be used on 1" or 1-1/2" (25.4 or 38 mm) Tubing. Fitting for 1" (25.4 mm) tubing comes with a 10-24 Flat Head Screw; fitting for 1-1/2" (38 mm) tubing comes with a 1/4"-20 Flat Head Screw. Matching size Rivet-Nuts are available.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Fitting Type: Fixed
Glazing Thickness: 1/4 in. To 3/8 in. (6 mm To 10 mm)
Material: Stainless Steel
Shipping Limitations: None
