CRL SA61BS Brushed Stainless Steel Swivel Hinge for Glass Fittings

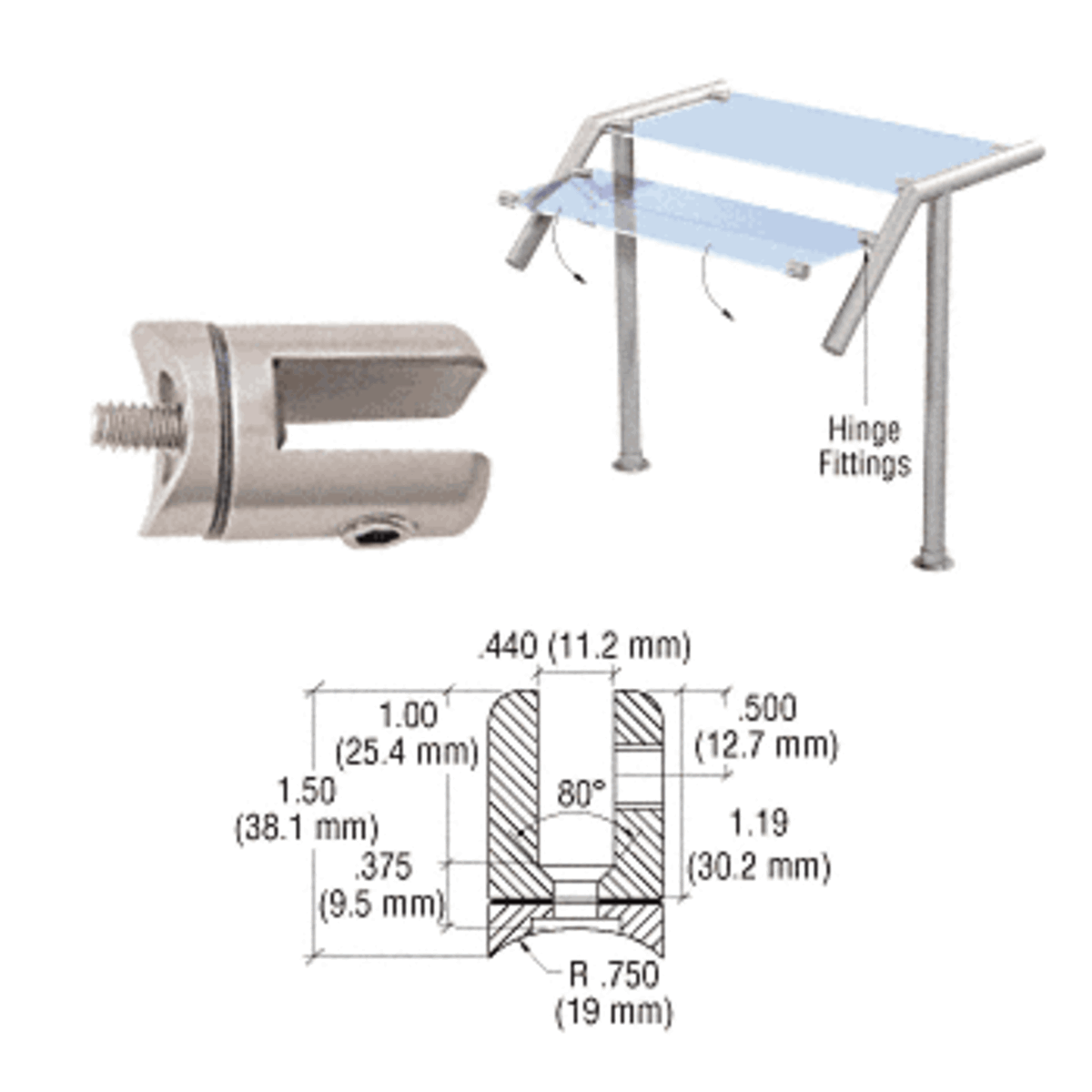

C.R. Laurence SA61BS Brushed Stainless Swivel Hinge Glass Fitting offers a sleek and functional solution for your glass installations. Designed for easy access, this hinge allows glass panels to swivel upward when mounted on 1-1/2" (38 mm) diameter round tubing. It securely accommodates monolithic tempered glass with thicknesses ranging from 1/4" to 3/8" (6 to 10 mm), ensuring a robust and reliable connection. The glass is held firmly in place with a vinyl gasket and a nylon-tipped set screw, providing both stability and ease of installation. This swivel hinge fitting comes equipped with a 1/4"-20 flat head screw, streamlining the setup process. It is important to note that the fitting is specifically designed for 1-1/2" tubing and will not function correctly with 2" (51 mm) diameter tubing. Crafted from brushed stainless steel, this fitting not only resists corrosion but also maintains a modern aesthetic that complements various architectural designs. For optimal performance, periodic maintenance is recommended to preserve the factory finish. Ideal for both professional and residential applications, the C.R. Laurence SA61BS is a versatile choice for enhancing your glass systems with style and functionality.

Brushed Stainless Swivel Hinge Glass Fitting

• Radius Mounting Base for 1-1/2" (38 mm) Diameter Round Tubing
• 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
• Use Monolithic Tempered Glass

CRL Swivel Hinge Glass Fittings allow the glass panel to be swiveled up for access when attached to our Round Tubing and the glass. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Fitting is for 1-1/2" (38 mm) Tubing and supplied with a 1/4"-20 Flat Head Screw.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
