CRL SA61PS Polished Stainless Steel Swivel Hinge for Glass Fittings

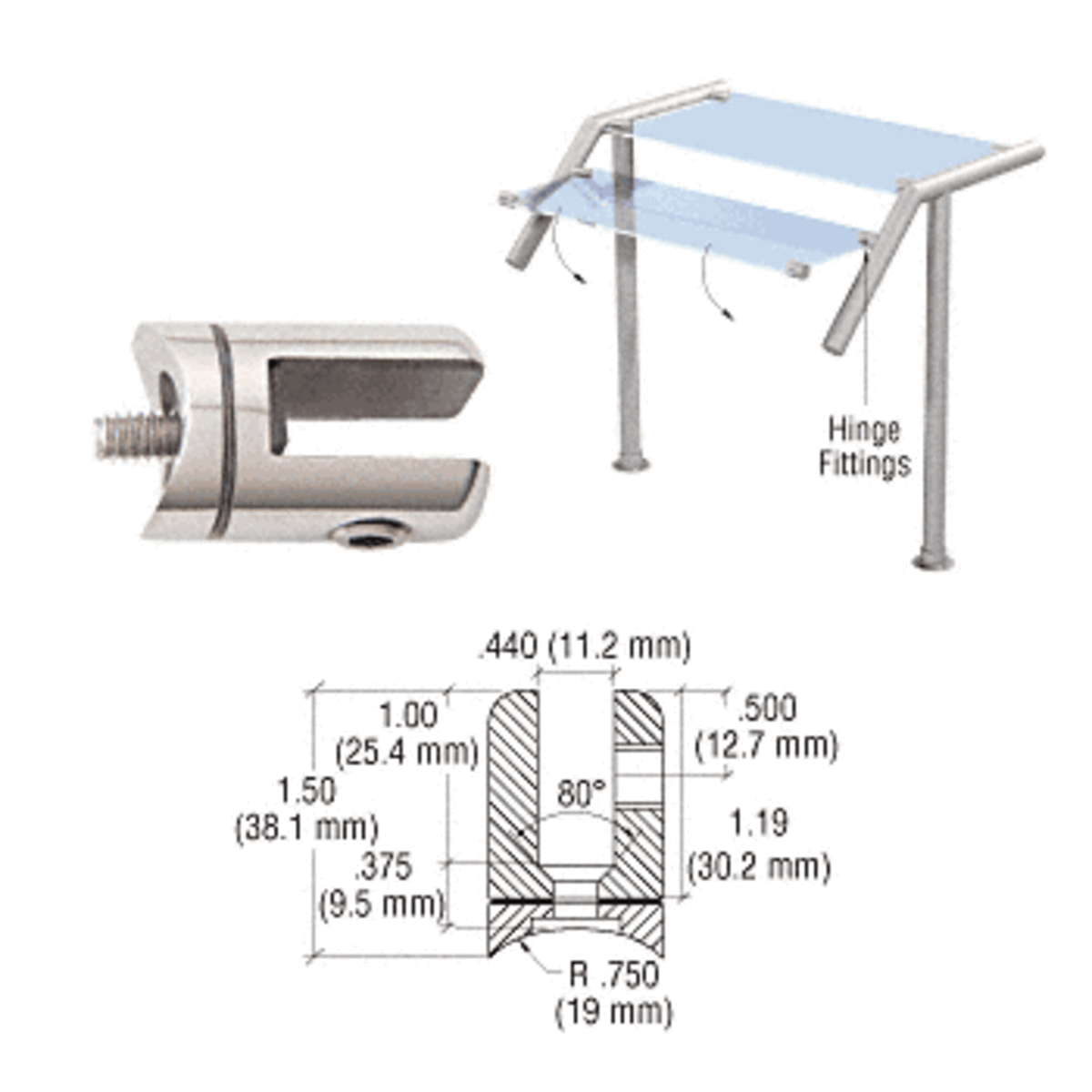

C.R. Laurence SA61PS Polished Stainless Swivel Hinge Glass Fitting is a key component for creating versatile glass installations. Designed for 1-1/2" (38 mm) diameter round tubing, this fitting accommodates glass thicknesses ranging from 1/4" to 3/8" (6 to 10 mm). It features a radius mounting base that allows for smooth swivel action of the glass panel, granting easy access when needed. The glass is securely held in place using a durable vinyl gasket and a nylon tipped set screw, ensuring stability and safety. Ideal for use with monolithic tempered glass, the SA61PS fitting is an excellent choice for both commercial and residential applications. It comes complete with a 1/4"-20 flat head screw for straightforward installation. Please note, this fitting is specifically designed for 1-1/2" tubing and will not fit on 2" (51 mm) diameter round tubing. Constructed from polished stainless steel, this swivel hinge not only provides a sleek aesthetic but also offers resistance to corrosion, making it suitable for various environments. Regular maintenance is recommended to maintain its factory finish. With no shipping limitations, the C.R. Laurence SA61PS is a reliable choice for enhancing your architectural glass projects.

Polished Stainless Swivel Hinge Glass Fitting

• Radius Mounting Base for 1-1/2" (38 mm) Diameter Round Tubing
• 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
• Use Monolithic Tempered Glass

CRL Swivel Hinge Glass Fittings allow the glass panel to be swiveled up for access when attached to our Round Tubing and the glass. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Fitting is for 1-1/2" (38 mm) Tubing and supplied with a 1/4"-20 Flat Head Screw.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
