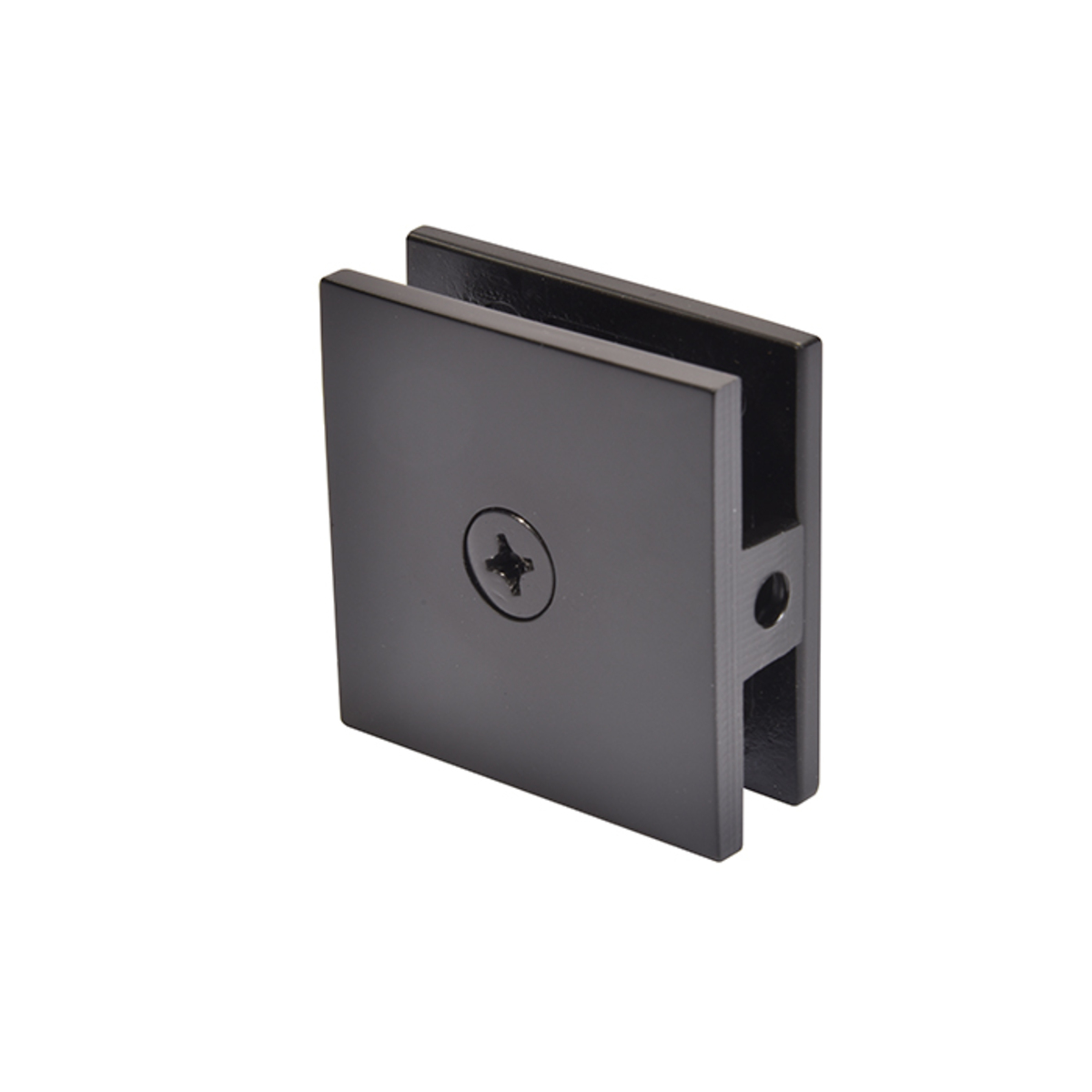

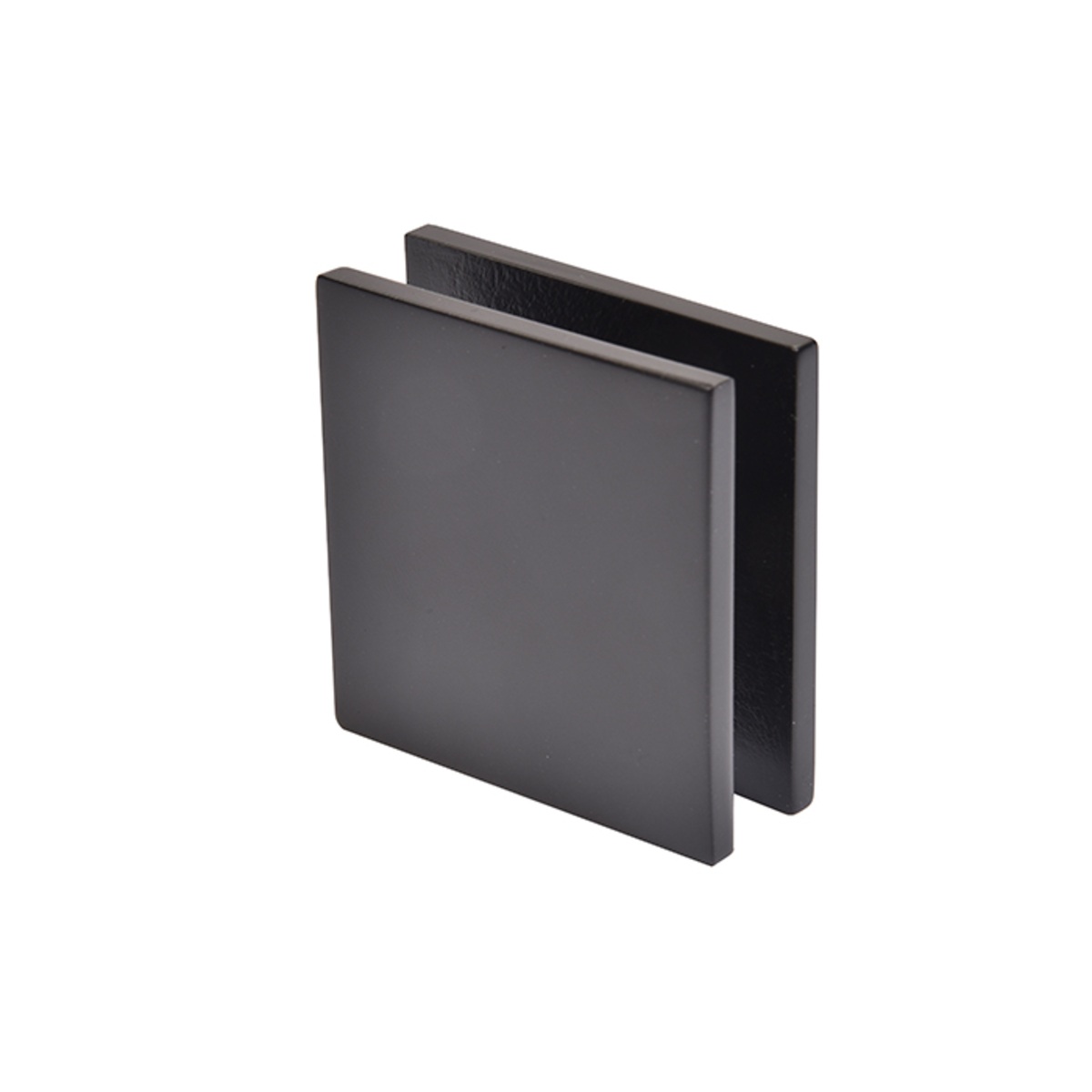

CRL SCU40RB Oil Rubbed Bronze Square Hole-in-Glass Fixed Panel U-Clamp

C.R. Laurence SCU40RB Oil Rubbed Bronze Square Style Hole-in-Glass Fixed Panel U-Clamp is an exceptional choice for securing fixed glass panels in frameless shower enclosures. Crafted from solid brass, this U-clamp not only ensures durability but also enhances the aesthetic appeal of your installation with its elegant oil-rubbed bronze finish. Its design offers a modern alternative to traditional U-channel systems, providing a seamless 'all-glass' look that elevates any bathroom space. Designed for use with monolithic tempered glass, the SCU40RB accommodates glass thicknesses ranging from 3/8" to 1/2" (10 mm to 12 mm) and requires a 5/8" or 3/4" (16 mm or 19 mm) hole in the panel. The clearance between the glass and wall is 3/16" (5 mm), allowing for a precise fit. Each clamp comes complete with mounting screws and gaskets for easy installation. Ideal for corner, niche, or tailor-made solutions, this wall-mounted clamp is perfect for achieving a sleek and functional design in any shower enclosure. For a reliable and stylish component that meets the highest industry standards, choose the C.R. Laurence SCU40RB U-Clamp as part of your glazing project.

Oil Rubbed Bronze Square Style Hole-in-Glass Fixed Panel U-Clamp

• Fabrication: 5/8" or 3/4" (16 or 19 mm) Hole in Panel
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
• Use Monolithic Tempered Glass
