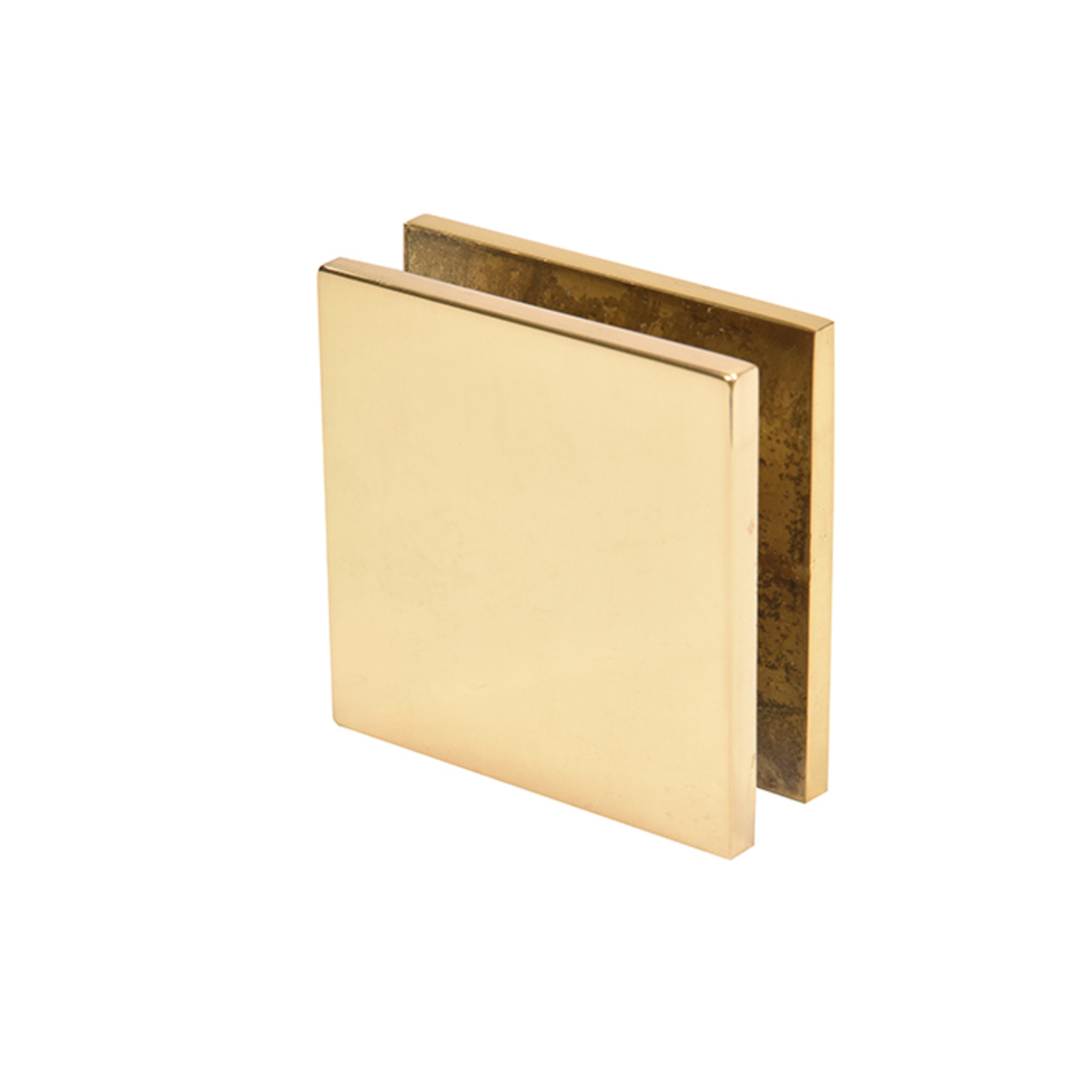

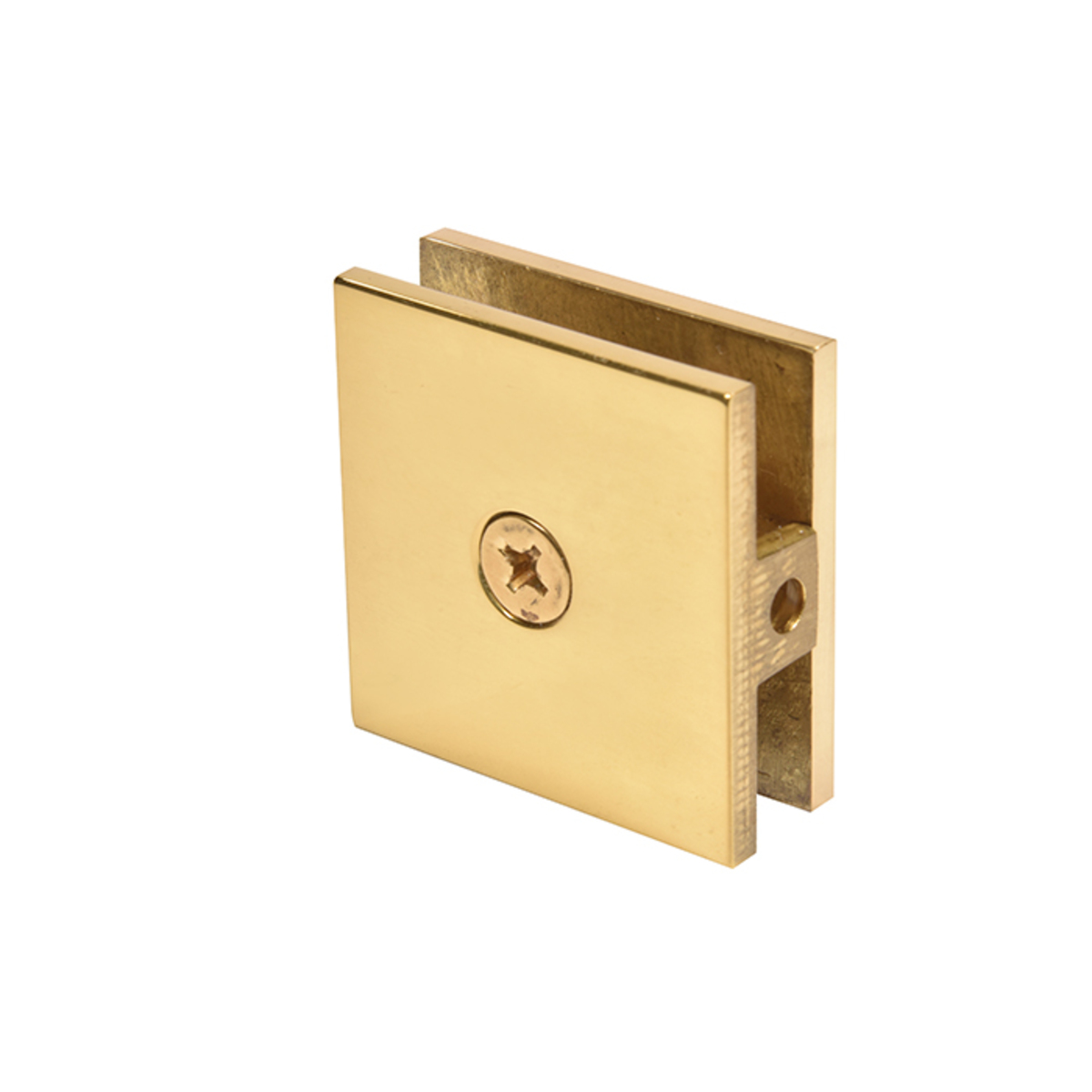

CRL SCU4BR Polished Brass Square Fixed Panel U-Clamp for Glass

Your Price: $15.61

Retail Price:$18.68

Your Savings:$3.07(16%)

Secure your frameless shower glass with the CRL SCU4BR Polished Brass U-Clamp, designed for 3/8" to 1/2" thick panels.

Part Number : CRL_SCU4BR

Availability: 3261 In Stock

Quantity

Description

CRL SCU4BR Polished Brass Square Fixed Panel U-Clamp for Glass

C.R. Laurence SCU4BR Polished Brass Square Style Hole-in-Glass Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this clamp requires a 5/8" or 3/4" (16 or 19 mm) hole in the panel, ensuring a precise fit. Crafted from solid brass, the SCU4BR not only provides durability but also enhances the aesthetic appeal of your enclosure with its sleek, modern design. This clamp serves as an attractive alternative to traditional U-channel systems, contributing to an ‘all-glass’ look that elevates the overall ambiance of your bathroom space. Installation is straightforward, as the clamp mounts directly to the wall, ceiling, or floor, maintaining a clearance of 3/16" (5 mm) between the glass and the wall. Clear silicone can be applied to create a clean, water-tight seal, ensuring longevity and functionality. Each clamp comes with mounting screws and gaskets for easy installation. Please note that while brass is durable, it is prone to oxidation, which may cause a tarnished appearance over time. For those seeking a refined glass panel solution, the SCU4BR is an excellent choice for both building professionals and discerning homeowners.

Polished Brass Square Style Hole-in-Glass Fixed Panel U-Clamp

For 3/8" to 1/2" (10 to 12 mm) Glass
Glass Fabrication: 5/8" or 3/4" (16 or 19 mm) Hole in Panel
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

CRL Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

Finish/ Color:: Polished Brass

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Height: 2 in. (51 mm)

Material: Brass

Mounting Type: Wall Mount

Replacement Clamping Screw: P615BR

Shipping Limitations: None

Width: 2 in. (51 mm)
