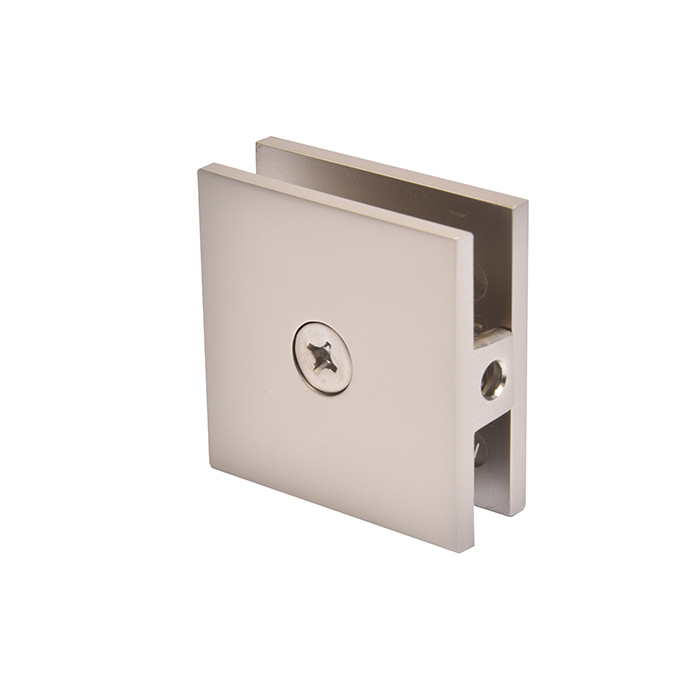

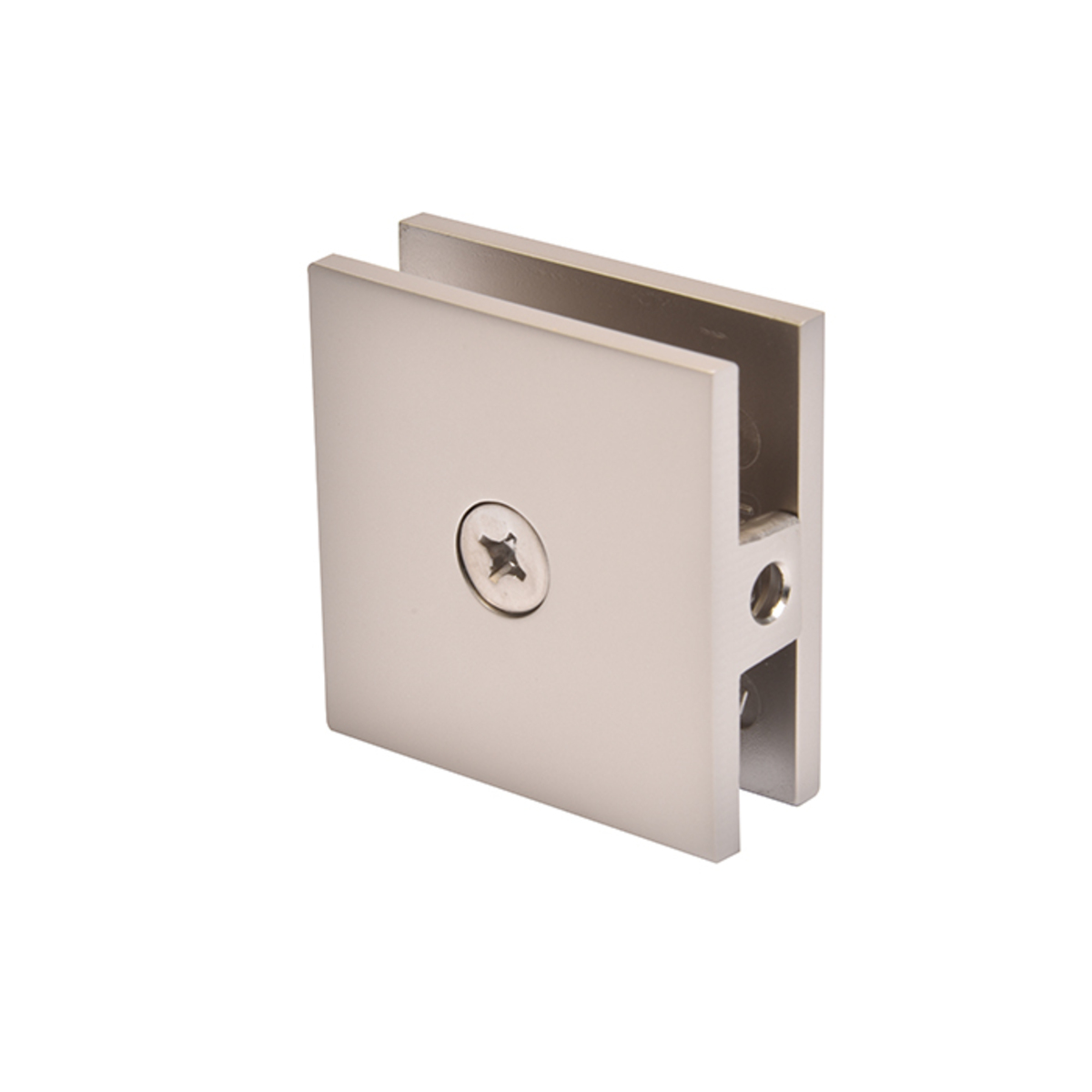

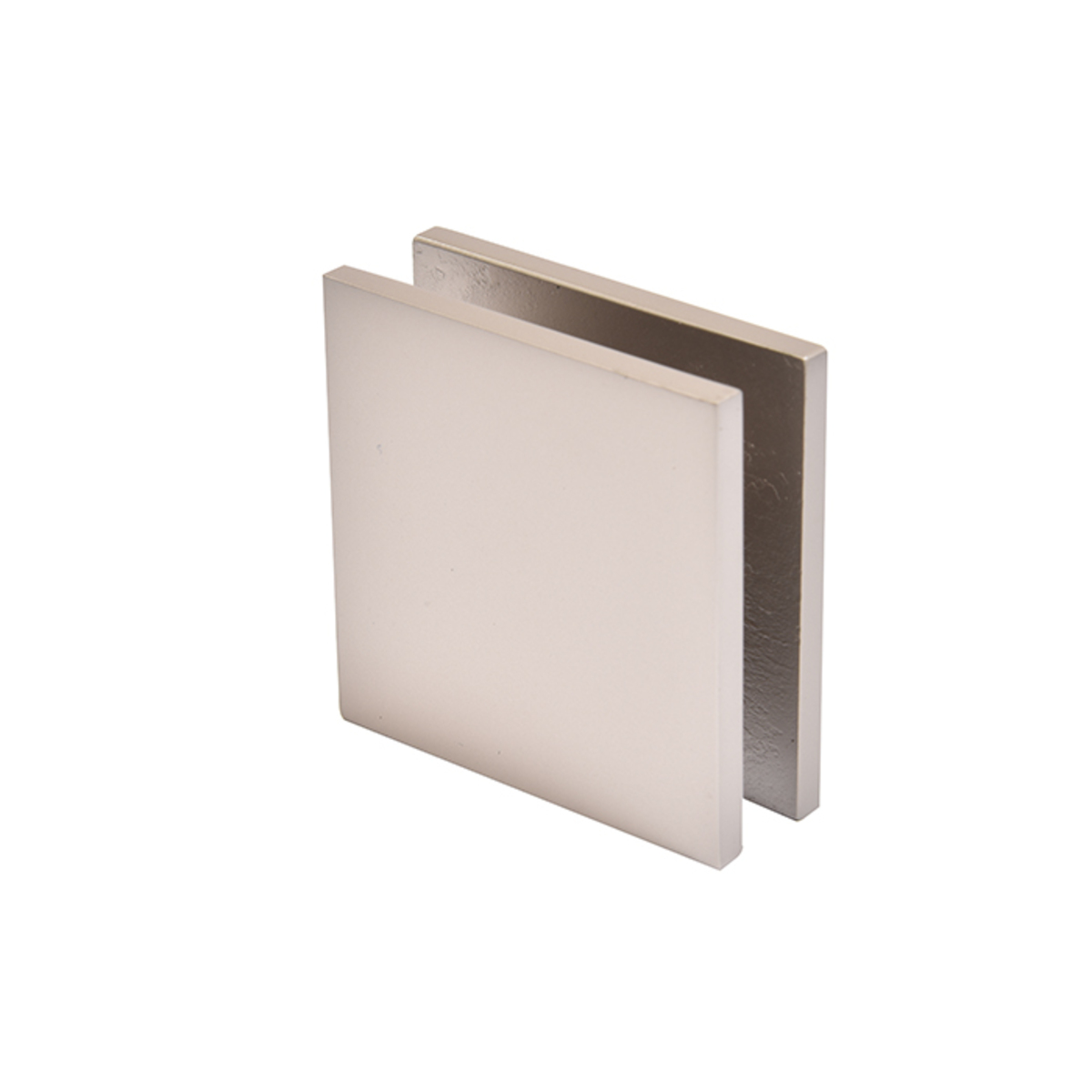

CRL SCU4SN Satin Nickel Square Hole-in-Glass Fixed Panel U-Clamp

C.R. Laurence SCU4SN Satin Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this clamp is crafted from solid brass, ensuring durability and a polished finish that complements modern aesthetics. Unlike traditional U-channel fittings, the SCU4SN enhances the 'all-glass' look, creating a seamless appearance that elevates the overall design of any bathroom. To achieve optimal performance, glass fabrication is required to accommodate the 3/4" (19 mm) holes necessary for installation. The clamp can be easily mounted to walls, ceilings, or floors, providing versatility in design. A clearance of 3/16" (5 mm) between the glass and the wall allows for proper sealing with clear silicone, ensuring a water-tight finish. Included with the product are mounting screws and gaskets, making installation straightforward for professionals and knowledgeable homeowners alike. The elegant satin nickel finish not only enhances the visual appeal but also provides a protective layer against corrosion. Upgrade your shower enclosure with the C.R. Laurence SCU4SN for a blend of functionality and style that stands the test of time.

Satin Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp

• For 5/16 to 1/2" (8 to 12 mm) Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
• Use Monolithic Tempered Glass
