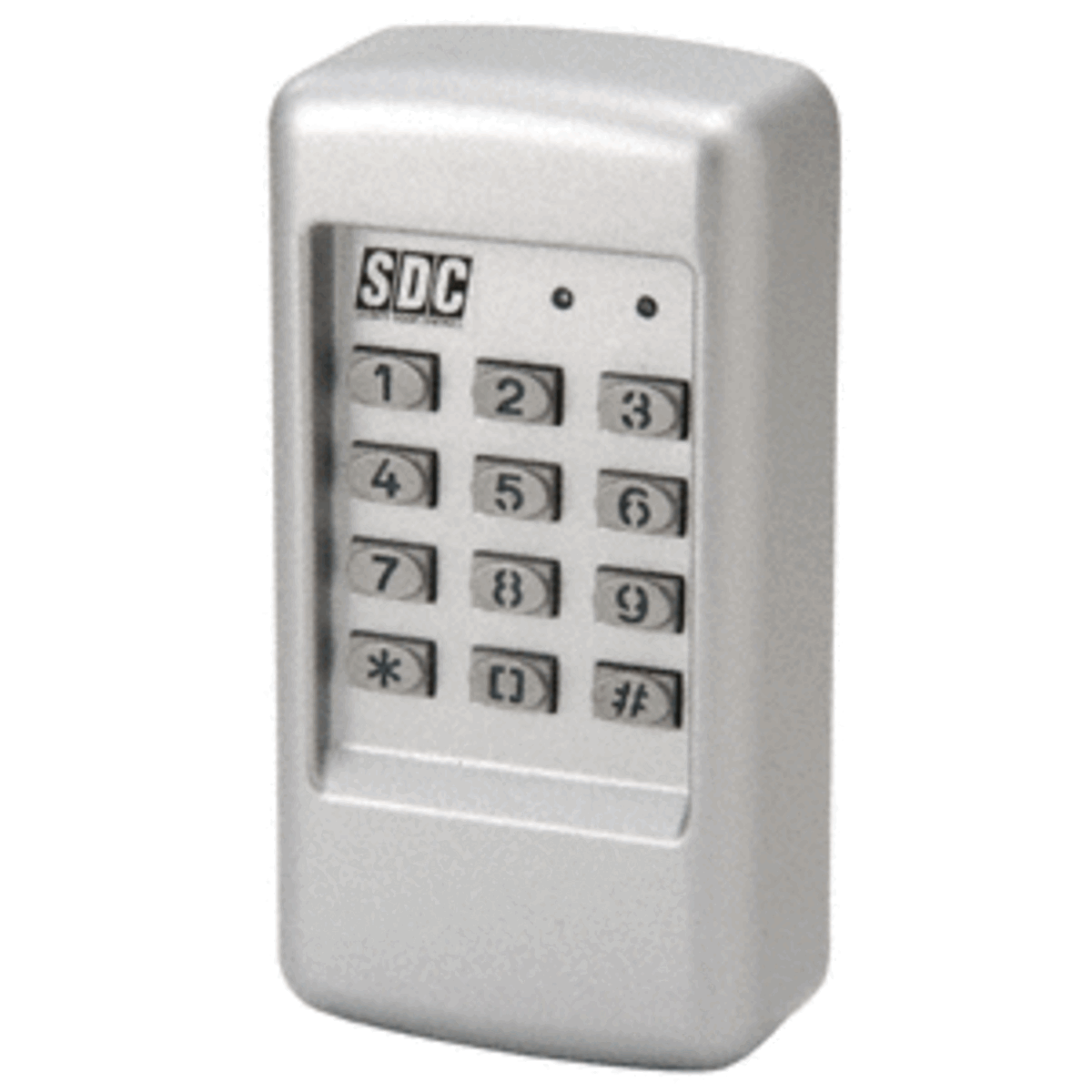

CRL SDC920 SDC EntryCheck Heavy-Duty Digital Keypad for Indoor/Outdoor UseC.R. Laurence SDC920 SDC EntryCheck Indoor/Outdoor Heavy-Duty Digital Programmable Keypads provide a robust and reliable solution for access control, accommodating up to 500 users with customizable one to six-digit codes. Crafted from heavy cast vandal-resistant housing, this keypad not only ensures durability but also features metal blue backlit keys that enhance visibility in various lighting conditions. Designed for surface mounting, the SDC920 operates on a versatile input voltage of 12/24 Volts AC/DC, making it suitable for a wide range of applications. The current draw is efficient, with a typical use of 30mA and a maximum of 150mA, allowing for steady performance. It activates one or both output relays, which can release an electric door lock, providing security without compromising convenience. With dimensions of 3" W x 5-3/4" H x 1-7/16" D, the keypad is compact yet functional. It operates effectively within a temperature range of -20ºF to +130ºF (-30ºC to +54ºC), ensuring reliability in diverse environments. The brushed stainless steel finish not only adds a modern aesthetic but also is resistant to corrosion, although periodic maintenance is recommended to maintain its appearance. For peace of mind and ease of use, the SDC920 is an excellent choice for any facility requiring dependable access control.
SDC EntryCheck Indoor/Outdoor Heavy-Duty Digital Programmable Keypads
- 1-6 Digit Codes for Up to 500 Users
- Heavy Cast Vandal Resistant Housing
- Surface Mount
- 12/24 Volts AC/DC
The
SDC® designed EntryCheck® Heavy-Duty Programmable Keypad is a stand alone digital keypad designed to control access to a single point for facilities with up to 500 users. Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy cast vandal resistant housing with metal blue backlit keys.
SPECIFICATIONS:
Input: 12/24 Volts AC/DC
Current Draw: 30mA Typical, 150mA Maximum
Outputs: Relay 1 = SPDT 5A @ 30VDC
Outputs: Relay 2 = SPDT 2A @ 30VDC
Dimensions: 3" W x 5-3/4" H x 1-7/16" D (76 x 146 x 37 mm)
Temperature: -20ºF to +130ºF, -30ºC to +54ºC
Finish: Brushed Stainless
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Brand: SDC EntryCheck
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 1-7/16
Finish/ Color:: Brushed Stainless Steel
Height: 5-3/4
Input Voltage: 12/24 Volts AC/DC
Material: Heavy Cast Vandal Resistant Housing With Metal Blue Backlit Keys
Operating Current: 30 mA typical, 150 mA max
Product Details: 1-6 Digit Codes For Up To 500 Users
Projection: 1-4/9
Shipping Limitations: None
Width: 3
