CRL SDCD12BL Black 1/2" Fixed Panel Shower Door U-Channel - 95"

Your Price: $33.00

Retail Price:$39.51

Your Savings:$6.51(16%)

Secure your fixed glass panels with the CRL SDCD12BL Black Deep U-Channel, designed for 1/2" thick glass installations.

Part Number : CRL_SDCD12BL

Availability: 563 In Stock

Quantity

Description

CRL SDCD12BL Black 1/2" Fixed Panel Shower Door U-Channel - 95"

C.R. Laurence SDCD12BL Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95" is an essential component for securing fixed glass panels in frameless shower installations. Designed for 3/8" and 1/2" (10 and 12 mm) thick glass, this U-channel features a deep pocket that effectively secures the glass, ensuring stability and safety in your design. With a height of 3/4" (19 mm) and a width of 11/16" (17.1 mm), the channel can be used either alone or in conjunction with a regular depth U-channel for versatile installation options. This product is constructed from durable aluminum with a sleek gloss black finish, making it an attractive choice for any modern bathroom. The 95" (2413 mm) length is ideal for standard applications, while some variants are available in economical 144" (3.66 m) lengths. Wet glazing with clear silicone guarantees a secure fit, and optional end caps are available to conceal the channel ends for a polished look. Whether securing glass to walls, ceilings, or floors, the C.R. Laurence Deep U-Channel is engineered to meet the demands of both building professionals and discerning homeowners, delivering quality and style in every installation.

Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

For 3/8" and 1/2" (10 and 12 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
May Be Used Alone or with Regular Depth U-Channel
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Use Monolithic Tempered Glass

CRL Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" (12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) high profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. Over a dozen stock finishes are offered.

SPECIFICATIONS:
Typical Uses: Most Commonly Used in Frameless Shower Installations for Securing Fixed Panels of Glass to the Wall, Ceiling or Floor

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Gloss Black

Glazing Pocket Width: .518

Glazing Thickness: 1/2 in. (12 mm)

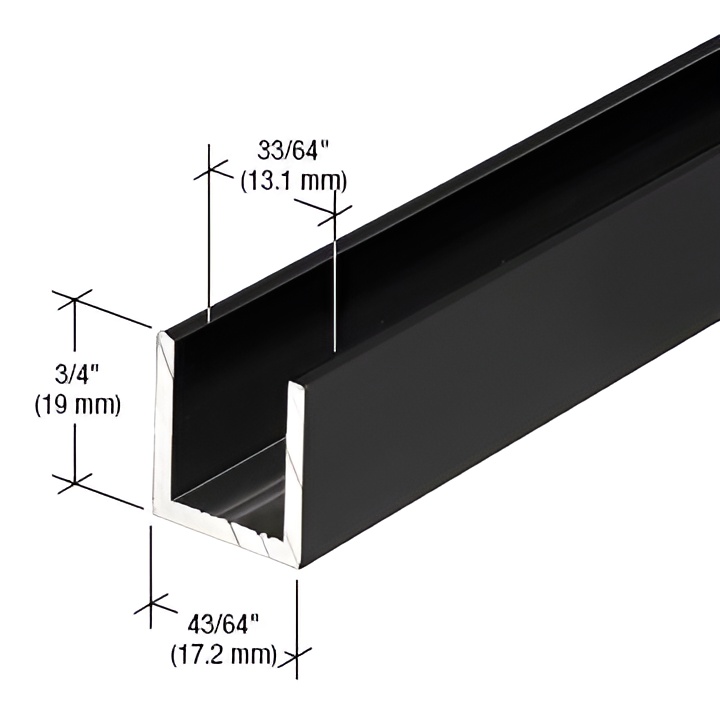

Height: 3/4 in. (19 mm)

Leg Height: 3/4 in. (19 mm)

Length: 95 in. (2413 mm)

Material: Aluminum

Profile: Deep

Shipping Limitations: UPS Oversize Rate

Width: 11/16 in. (17.1 mm)
