Images may not represent actual product and finish

CRL SDCD12SB Satin Brass 1/2" Fixed Panel Shower Door U-Channel - 95"

Your Price: $31.95

Retail Price:$38.25

Your Savings:$6.30(16%)

Secure your glass panels with the CRL Satin Brass Deep U-Channel, designed for 1/2" thick glass in stylish finishes.

Part Number : CRL_SDCD12SB

Availability: 2770 In Stock

Quantity

Description

CRL SDCD12SB Satin Brass 1/2" Fixed Panel Shower Door U-Channel - 95"

C.R. Laurence SDCD12SB Satin Brass 1/2" Fixed Panel Shower Door Deep U-Channel - 95" is expertly designed to secure fixed glass panels with unmatched reliability. This robust aluminum channel accommodates both 3/8" and 1/2" (10 and 12 mm) thick glass, ensuring a stable installation for frameless shower enclosures. The deep pocket feature effectively secures the glass, providing additional support where it’s needed most. Measuring 3/4" (19 mm) in height, this channel can be used independently or in conjunction with a regular depth U-channel, offering flexibility in design. It is recommended to wet glaze the channel with clear silicone for optimal glass security. Available in a popular 95" (2.41 m) length, it is also offered in more economical 144" (3.66 m) stock lengths for larger projects. End caps are available to conceal the ends of the channel, enhancing the overall aesthetic of your installation. This product is best used with monolithic tempered glass, making it an ideal choice for professional builders and discerning homeowners alike. Please note that while satin brass is a durable finish, it is prone to oxidation, which can create a tarnished appearance over time.

Satin Brass 1/2" Fixed Panel Shower Door Deep U-Channel - 95"

For 3/8" and 1/2" (10 and 12 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
May Be Used Alone or with Regular Depth U-Channel
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Use Monolithic Tempered Glass

CRL Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" (12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) high profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. Over a dozen stock finishes are offered.

SPECIFICATIONS:
Typical Uses: Most Commonly Used in Frameless Shower Installations for Securing Fixed Panels of Glass to the Wall, Ceiling or Floor

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

Glazing Pocket Width: .518

Glazing Thickness: 1/2 in. (12 mm)

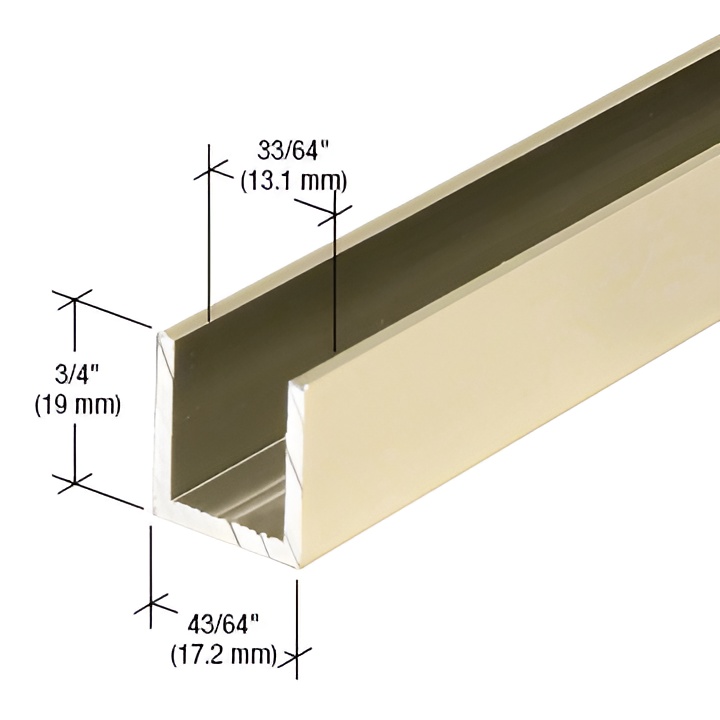

Height: 3/4 in. (19 mm)

Leg Height: 3/4 in. (19 mm)

Length: 95 in. (2413 mm)

Material: Aluminum

Profile: Deep

Shipping Limitations: UPS Oversize Rate

Width: 11/16 in. (17.1 mm)
