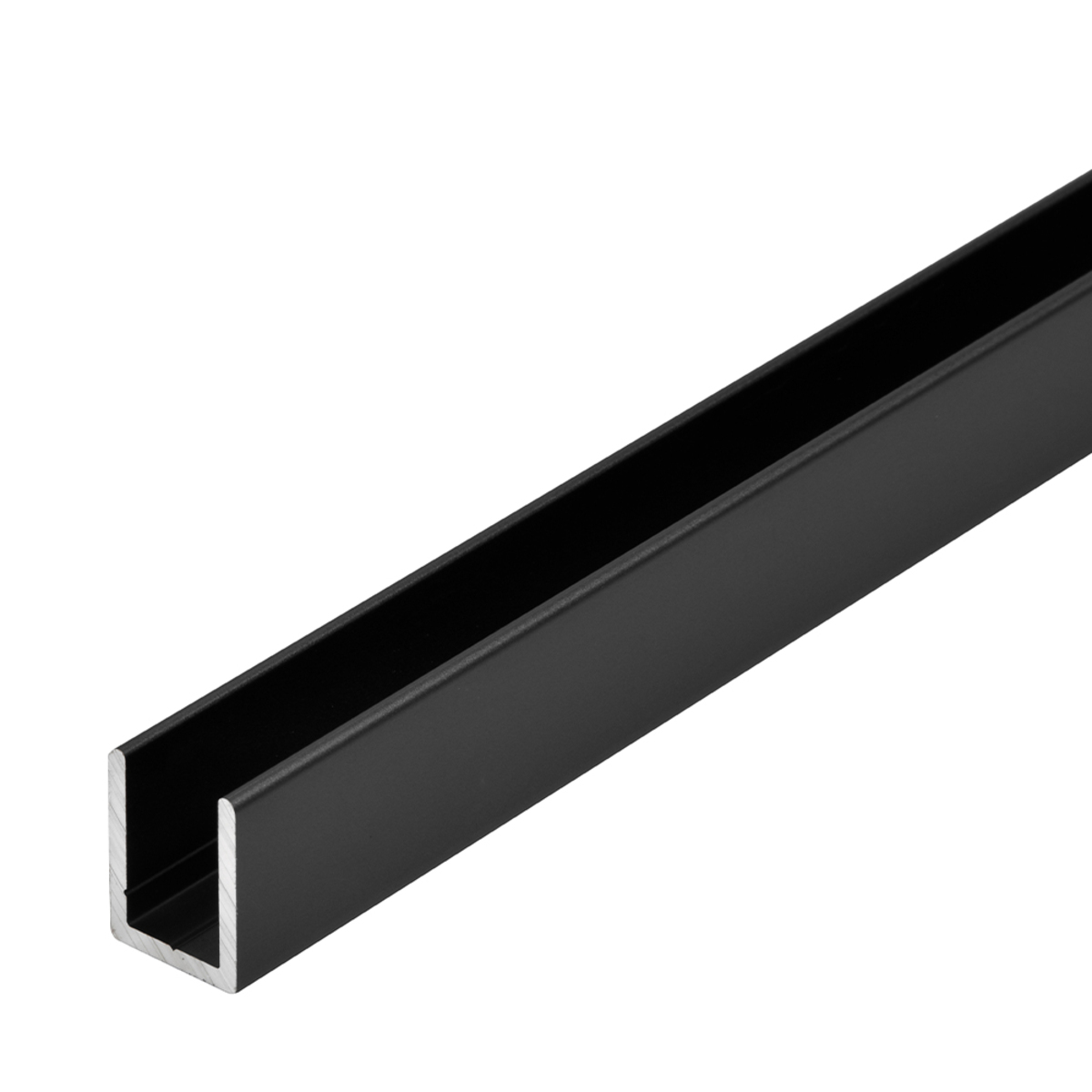

CRL SDCD38MBL Matte Black 3/8" Fixed Shower Door U-Channel - 95"

Your Price: $28.40

Retail Price:$34.00

Your Savings:$5.60(16%)

Secure your 3/8" glass panels with the CRL Matte Black Deep U-Channel, featuring a robust design for frameless shower installations.

Part Number : CRL_SDCD38MBL

Availability: 37422 In Stock

Quantity

Description

CRL SDCD38MBL Matte Black 3/8" Fixed Shower Door U-Channel - 95"

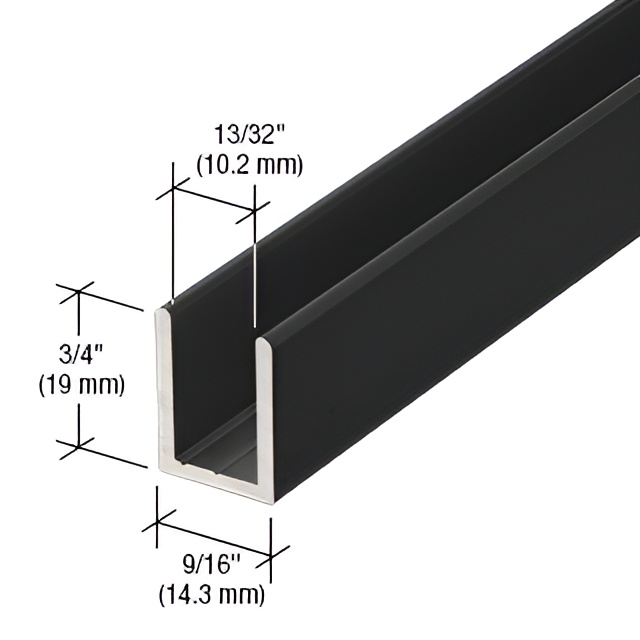

C.R. Laurence SDCD38MBL Matte Black 3/8" Fixed Panel Shower Door Deep U-Channel - 95" is an essential component for modern frameless shower installations, designed to securely hold fixed panels of 3/8" (10 mm) thick glass. This deep profile channel, measuring 3/4" (19 mm) in height and 9/16" (14 mm) in width, features a deep pocket that effectively secures the glass, providing stability and style. Crafted from durable aluminum, the U-Channel comes in a sleek matte black finish, enhancing the aesthetic appeal of any bathroom. It can be used independently or in conjunction with regular depth U-Channels, offering versatility in installation. The deep U-Channel is wet glazed with clear silicone for optimal glass security, ensuring a leak-proof seal. Available in a standard length of 95" (2.41 m), this product can also be obtained in economical 144" (3.66 m) stock lengths. End caps are offered to conceal the ends of the channel, contributing to a polished look. With options in up to seventeen finishes, this U-Channel not only meets functional needs but also accommodates personal style preferences, making it a top choice for building professionals and discerning homeowners alike.

Matte Black 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

For 3/8" (10 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
Use Monolithic Tempered Glass
May Be Used Alone or with Regular Depth U-Channel
Choice of Deep or Regular Styles
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Available in Up to Seventeen Finishes

Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.

We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.

SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Matte Black

Glazing Pocket Width: 13/32

Glazing Thickness: 3/8 in. (10 mm)

Height: 3/4 in. (19 mm)

Leg Height: 3/4 in. (19 mm)

Length: 95 in. (2413 mm)

Material: Aluminum

Profile: Deep

Shipping Limitations: UPS Oversize Rate

Width: 9/16 in. (14 mm)
