Images may not represent actual product and finish

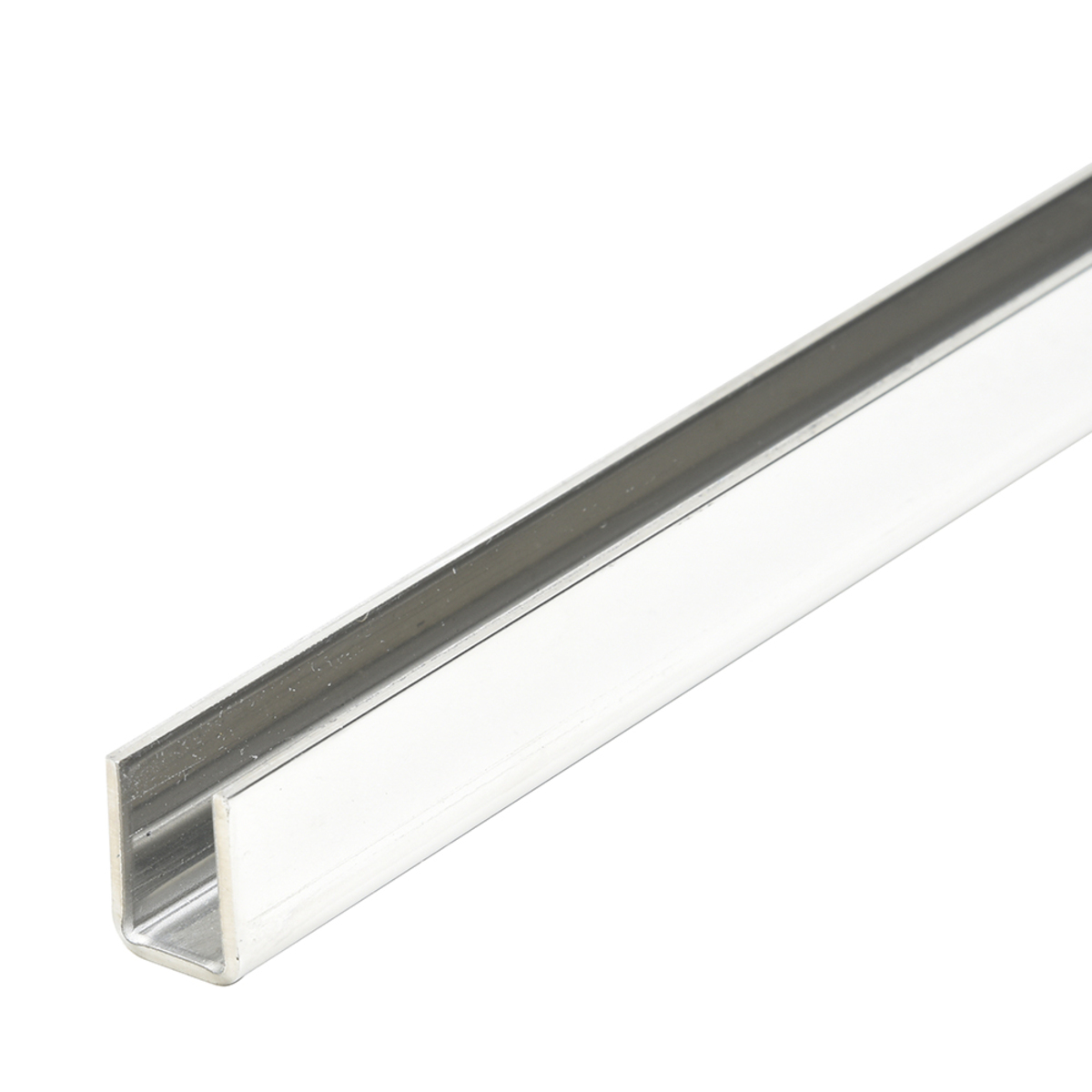

CRL SDCD38PS 316 Polished Stainless 3/8" Fixed Shower Door Deep U-Channel - 95"

Your Price: $211.57

Retail Price:$253.28

Your Savings:$41.71(16%)

Secure your 3/8" glass panels with the CRL SDCD38PS Deep U-Channel, crafted from polished 316 stainless steel for durability.

Part Number : CRL_SDCD38PS

Availability: 117 In Stock

Quantity

Description

CRL SDCD38PS 316 Polished Stainless 3/8" Fixed Shower Door Deep U-Channel - 95"

C.R. Laurence SDCD38PS 316 Polished Stainless 3/8" Fixed Panel Shower Door Deep U-Channel - 95" is engineered for durability and aesthetic appeal in frameless shower installations. Crafted from premium 316 stainless steel, this deep U-channel provides a secure foundation for 3/8" (10 mm) thick glass panels, making it the ideal choice for modern bathroom designs. Measuring 95 inches in length, the channel features a deep pocket that effectively secures fixed glass panels to walls, ceilings, or floors. Its 3/4" (19 mm) high profile allows for seamless integration with regular depth U-channels, offering versatility in installation configurations. This product can be wet glazed with clear silicone, ensuring a watertight and secure fit. Available in an impressive range of up to seventeen finishes, the SDCD38PS allows for customization to match any design aesthetic. End caps are also offered to conceal the ends of the channel, enhancing the overall look. Each unit is individually wrapped to protect its polished finish during shipping. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Discover the perfect blend of function and style with C.R. Laurence's Deep U-Channel, where quality meets design.

316 Polished Stainless 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

For 3/8" (10 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
Use Monolithic Tempered Glass
May Be Used Alone or with Regular Depth U-Channel
Choice of Deep or Regular Styles
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Available in Up to Seventeen Finishes

Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.

We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.

SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.
Construction : Made of 316 Stainless Steel

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

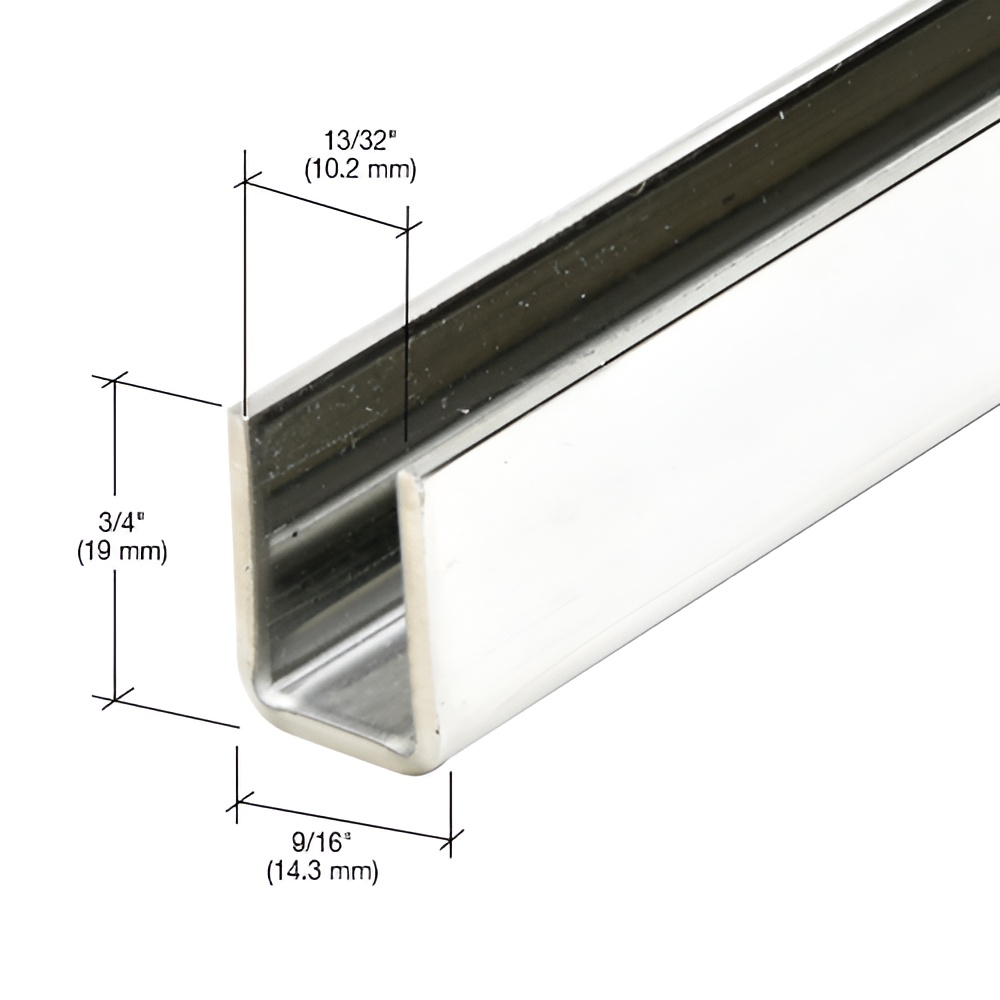

Glazing Pocket Width: 13/32

Glazing Thickness: 3/8 in. (10 mm)

Height: 3/4 in. (19 mm)

Leg Height: 3/4 in. (19 mm)

Length: 95 in. (2413 mm)

Material: 316 Stainless Steel

Profile: Deep

Shipping Limitations: UPS Oversize Rate

Width: 9/16 in. (14 mm)
