Images may not represent actual product and finish

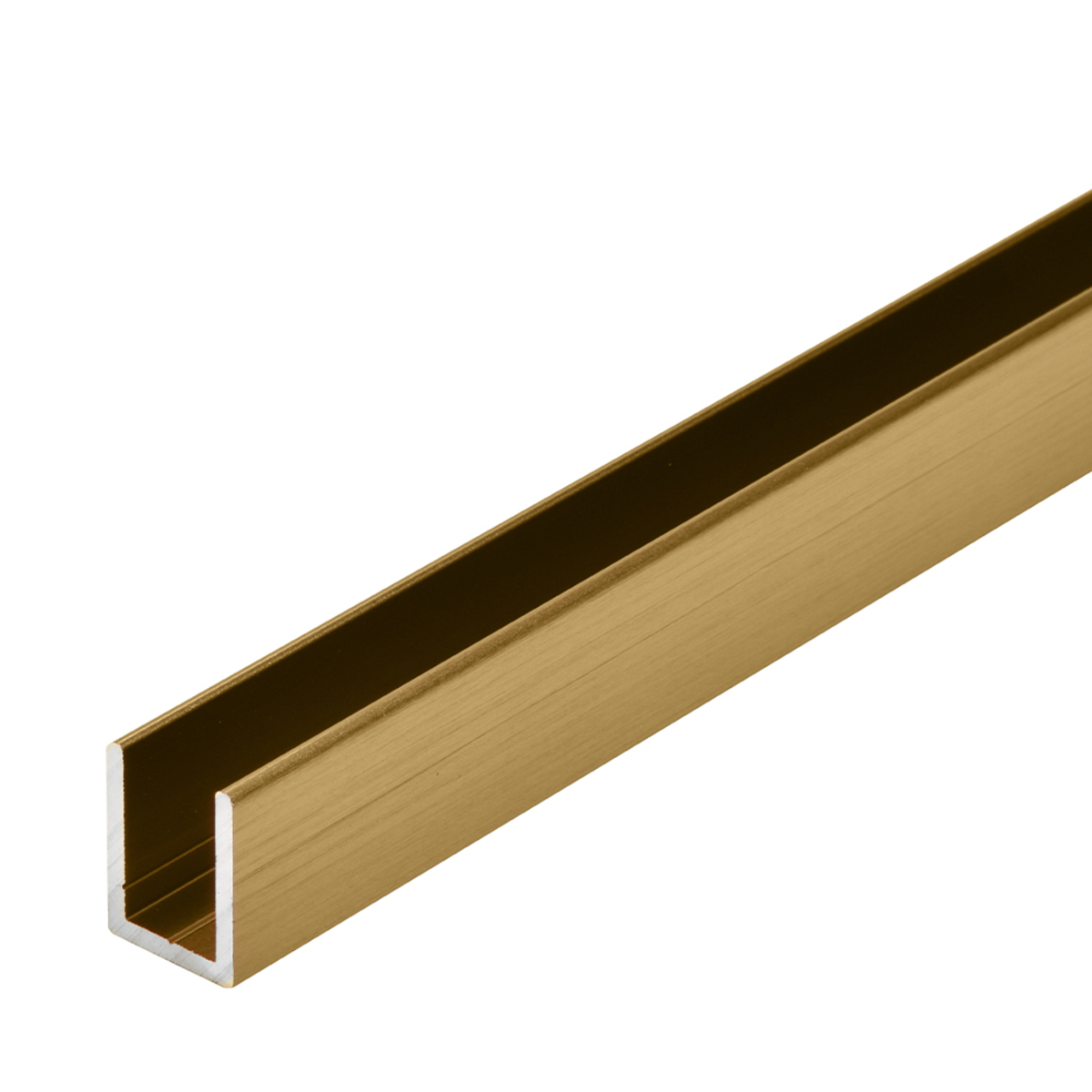

CRL SDCD38SB Satin Brass 3/8" Fixed Shower Door Deep U-Channel - 95"

Your Price: $28.40

Retail Price:$34.00

Your Savings:$5.60(16%)

Secure your 3/8" glass panels with the CRL Satin Brass Deep U-Channel, featuring a robust design for frameless shower installations.

Part Number : CRL_SDCD38SB

Availability: 5421 In Stock

Quantity

Description

CRL SDCD38SB Satin Brass 3/8" Fixed Shower Door Deep U-Channel - 95"

C.R. Laurence SDCD38SB Satin Brass 3/8" Fixed Panel Shower Door Deep U-Channel - 95" is expertly designed for securing fixed glass panels in contemporary frameless shower installations. Crafted to accommodate 3/8" (10 mm) thick monolithic tempered glass, this deep U-channel features a robust pocket that ensures a secure and stable fit. With a height of 3/4" (19 mm) and a glazing pocket width of 13/32", it provides the necessary support for fixed panels, whether mounted to the wall, ceiling, or floor. The versatility of the SDCD38SB allows it to be used as a standalone fixture or in conjunction with standard depth U-channels, making it an ideal choice for various design preferences. Wet glazing with clear silicone enhances the durability of the installation, while end caps are available to conceal channel ends for a polished look. This deep U-channel is available in popular 95" (2.41 m) lengths, with some options extending to economical 144" (3.66 m) stock lengths. Choose from an impressive selection of up to seventeen finishes to match your design aesthetic. Please note that brass finishes may oxidize over time, giving them a unique patina. Enhance your shower space with the elegance and functionality of C.R. Laurence’s SDCD38SB.

Satin Brass 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

For 3/8" (10 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
Use Monolithic Tempered Glass
May Be Used Alone or with Regular Depth U-Channel
Choice of Deep or Regular Styles
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Available in Up to Seventeen Finishes

Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.

We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.

SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

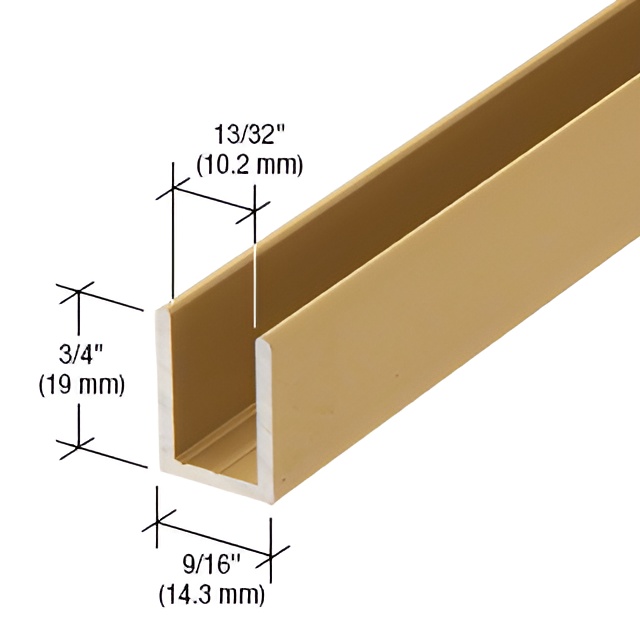

Glazing Pocket Width: 13/32

Glazing Thickness: 3/8 in. (10 mm)

Height: 3/4 in. (19 mm)

Leg Height: 3/4 in. (19 mm)

Length: 95 in. (2413 mm)

Material: Aluminum

Profile: Deep

Shipping Limitations: UPS Oversize Rate

Width: 9/16 in. (14 mm)
