CRL SDH660BGA Brite Gold Anodized 66
Images may not represent actual product and finish

CRL SDH660BGA Brite Gold Anodized 66" Deluxe Shower Door Header Kit

Your Price: $138.21
Retail Price:$165.46
Your Savings:$27.25(16%)
The CRL Deluxe Shower Door Header Kit offers robust support for various glass thicknesses, featuring a sleek Brite Gold Anodized finish.
Part Number : CRL_SDH660BGA
Availability: 126 In Stock

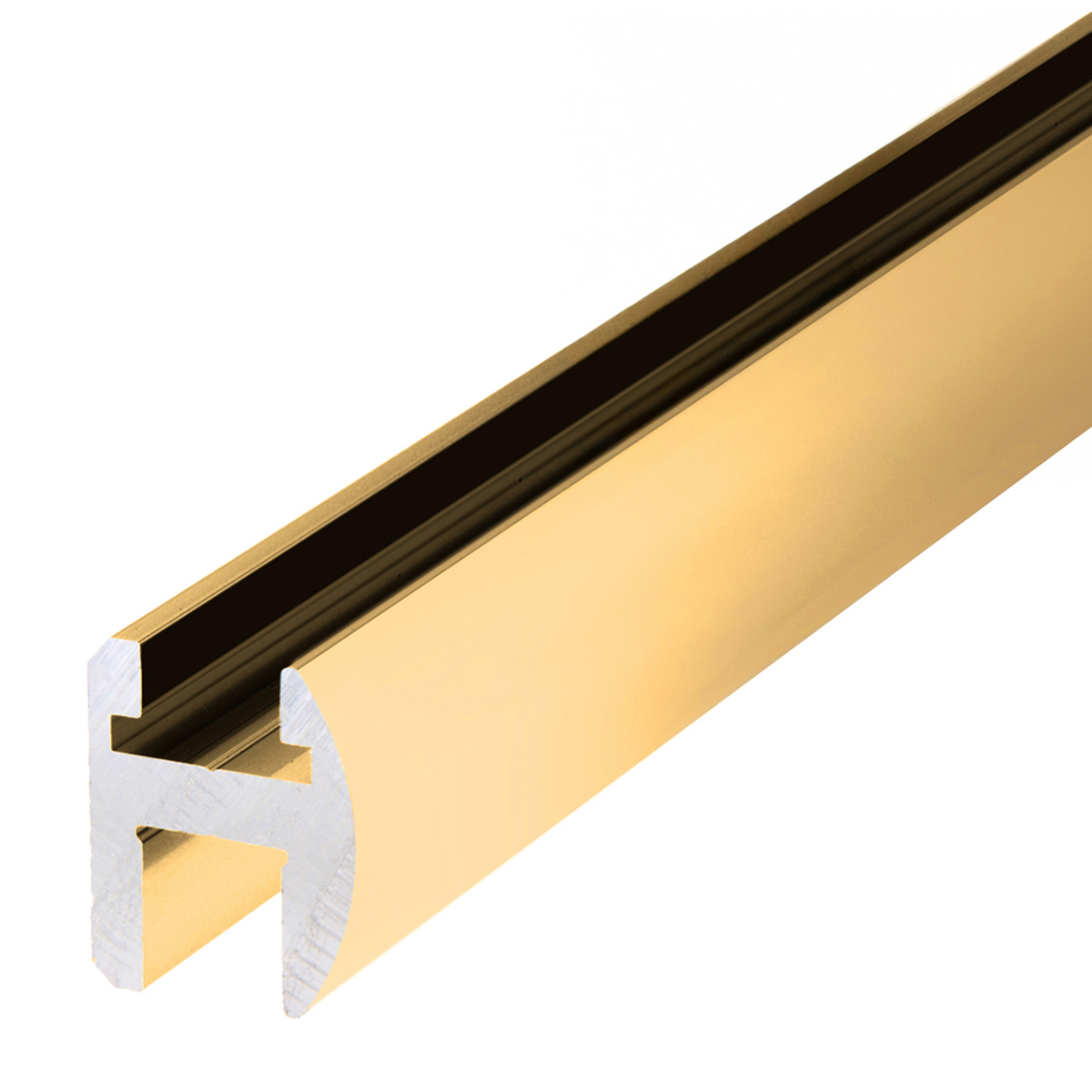

CRL SDH660BGA Brite Gold Anodized 66" Deluxe Shower Door Header Kit

C.R. Laurence SDH660BGA Brite Gold Anodized 66" Deluxe Shower Door Header Kit offers a robust solution for securing glass panels in shower installations that do not reach the ceiling. Designed for compatibility with glass thicknesses of 5/16", 3/8", and 1/2" (8, 10, and 12 mm), this header kit ensures a stylish and safe enclosure. Each kit includes one 66" (1.67 m) piece of aluminum header extrusion, featuring a narrow 1-1/4" (32 mm) face to minimize visible sight lines. A 36" (914 mm) snap-in filler piece is also provided for door pockets, along with a pack of two BWB2 brass wall mounting brackets for secure installation. The kit is adaptable with various hinge options, including Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, or Shell Hinges, enhancing its versatility for different designs. Clear vinyl is included for 5/16" (8 mm) and 3/8" (10 mm) glass, ensuring a snug fit and additional water resistance. With the option to choose from 66", 98", or 144" lengths, the Deluxe Header Kit accommodates a range of shower configurations. Elevate your shower design with this durable and elegant header kit, crafted from high-quality aluminum and finished in a striking Brite Gold Anodized color.

Brite Gold Anodized 66" Deluxe Shower Door Header Kit

  • For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Glass

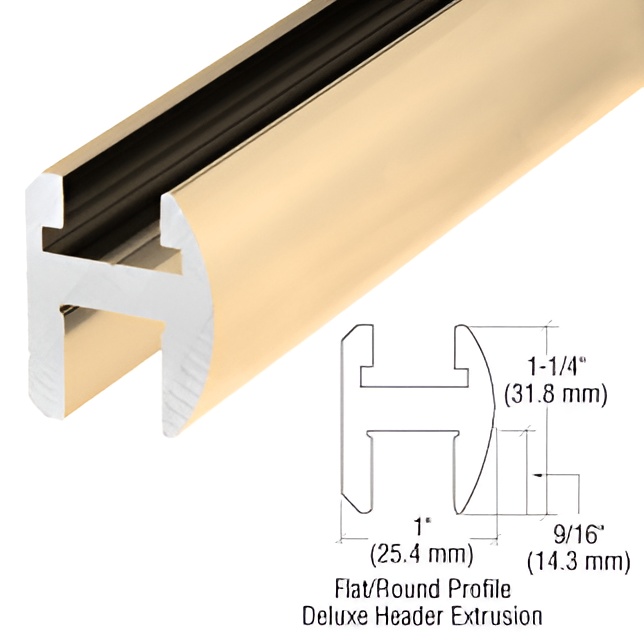

  • One 66" (1.67 m), 98" (2.49 m) or 144" (3.66 m) Piece of Aluminum Header Extrusion
  • One 36" (914 mm) Piece of Aluminum Snap-In Filler for Door Pocket
  • One Pack of Two BWB2 Brass Wall Mounting Brackets
  • Clear Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass

The CRL Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 98" or 144" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used.


This Header Kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell Hinges, if using the Kit with Top and Bottom Mount Pivot Hinges.

EACH DELUXE HEADER KIT CONTAINS:
  • 66" (1.67 m), 98" (2.49 m) or 144" (3.65 m) Piece of Header Extrusion
  • 36" (.91 m) Piece of Snap-In Filler for Door Pocket
  • Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass [not needed for 1/2" (12 mm) Glass]
  • Pack of BWB2 Brass Wall Mounting Brackets (Pack includes two Brackets)

    NOTE: If choosing to use a Header Kit with 1/4" (6 mm) glass, Cat. No. HV140 Clear Vinyl may be ordered separately.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Ship via: No UPS - Common Carrier Only

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Brite Gold Anodized

    Glazing Pocket Width: 1/2

    Glazing Thickness: 1/2 in. (12 mm)

    Length: 66 in. (1676 mm)

    Material: Aluminum

    Profile: Flat / Curved

    Series: Deluxe

    Shipping Limitations: UPS Oversize Rate
