CRL SDH980A Satin Anodized Deluxe Shower Door Header Kit - 95
Images may not represent actual product and finish

CRL SDH980A Satin Anodized Deluxe Shower Door Header Kit - 95"

Your Price: $142.000
Retail Price:$170.000
Your Savings:$28.00(16%)
Enhance your shower with the CRL SDH980A Deluxe Header Kit, designed for secure glass support and stylish finishes.
Part Number : CRL_SDH980A
Availability: 56 In Stock
CRL SDH980A Satin Anodized Deluxe Shower Door Header Kit - 95"

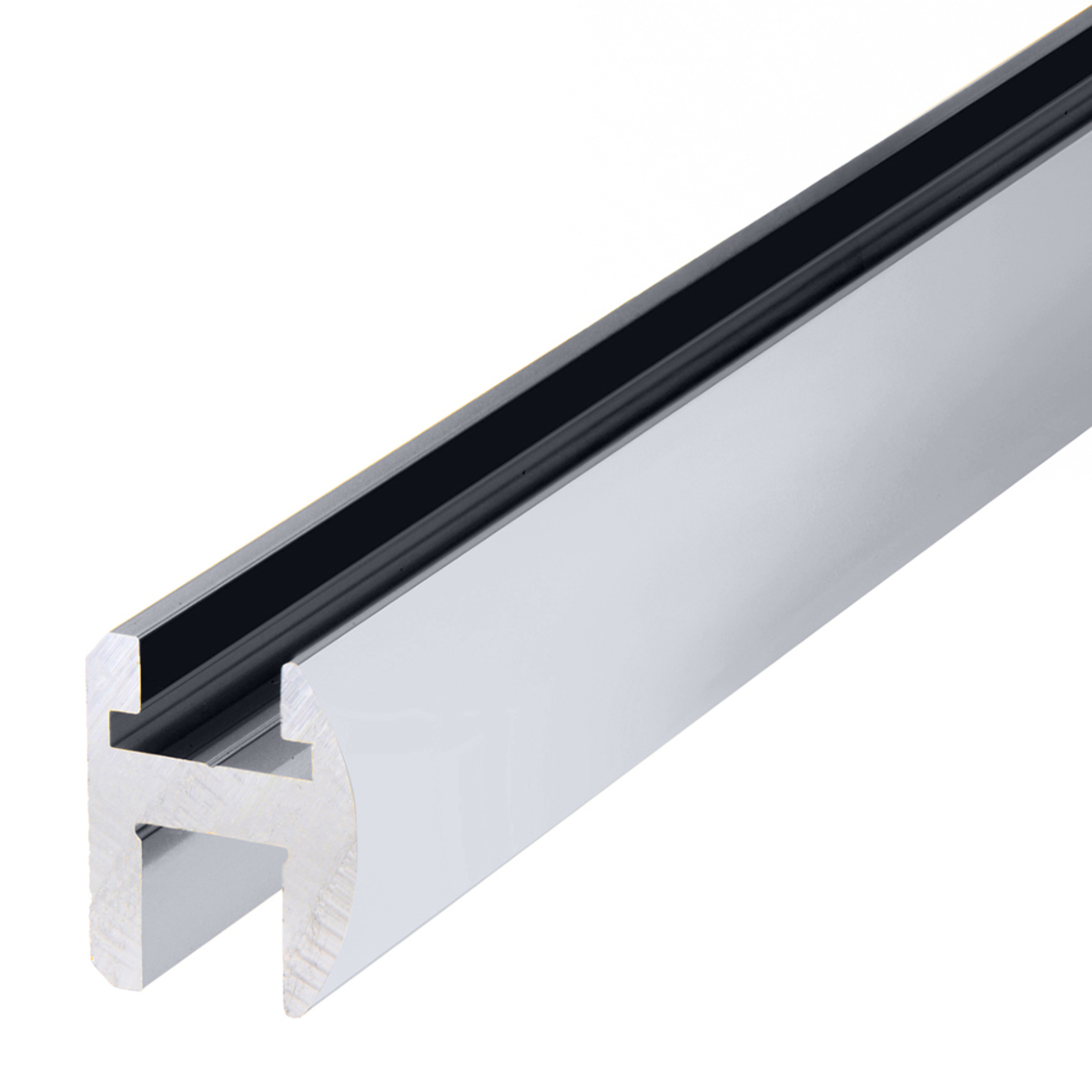

C.R. Laurence SDH980A Satin Anodized Deluxe Shower Door Header Kit - 95" offers a robust solution for securing glass panels in your shower installations. Designed to accommodate glass thicknesses of 5/16", 3/8", and 1/2" (8, 10, and 12 mm), this header kit enhances both safety and support while maintaining a sleek aesthetic. Each kit includes a 95" (2.41 m) piece of aluminum header extrusion, featuring a narrow 1-1/4" (32 mm) face that minimizes visible sight lines. A 36" (914 mm) snap-in filler for the door pocket and a pack of two BWB2 brass wall mounting brackets are also included, ensuring a complete installation package. The kit is constructed from durable 6063-T5 aluminum alloy, providing long-lasting performance. Adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, or Shell hinges, this header is versatile for various configurations, including top and bottom mount pivot hinges. Note that for installations where the header does not meet the wall at a 90-degree angle, a separate blank mounting bracket is available. Whether you're a building professional or a knowledgeable homeowner, the C.R. Laurence Deluxe Header Kit is an essential component for any modern shower design.

Satin Anodized Deluxe Shower Door Header Kit - 95"

  • For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Glass
  • One 66" (1.67 m), 95" (2.41 m) or 144" (3.66 m) Piece of Aluminum Header Extrusion
  • One 36" (914 mm) Piece of Aluminum Snap-In Filler for Door Pocket
  • One Pack of Two BWB2 Brass Wall Mounting Brackets
  • Clear Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass

The CRL Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 95" or 144" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used. Header is constructed of 6063-T5 Aluminum Alloy.


This Header Kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell Hinges, if using the Kit with Top and Bottom Mount Pivot Hinges.

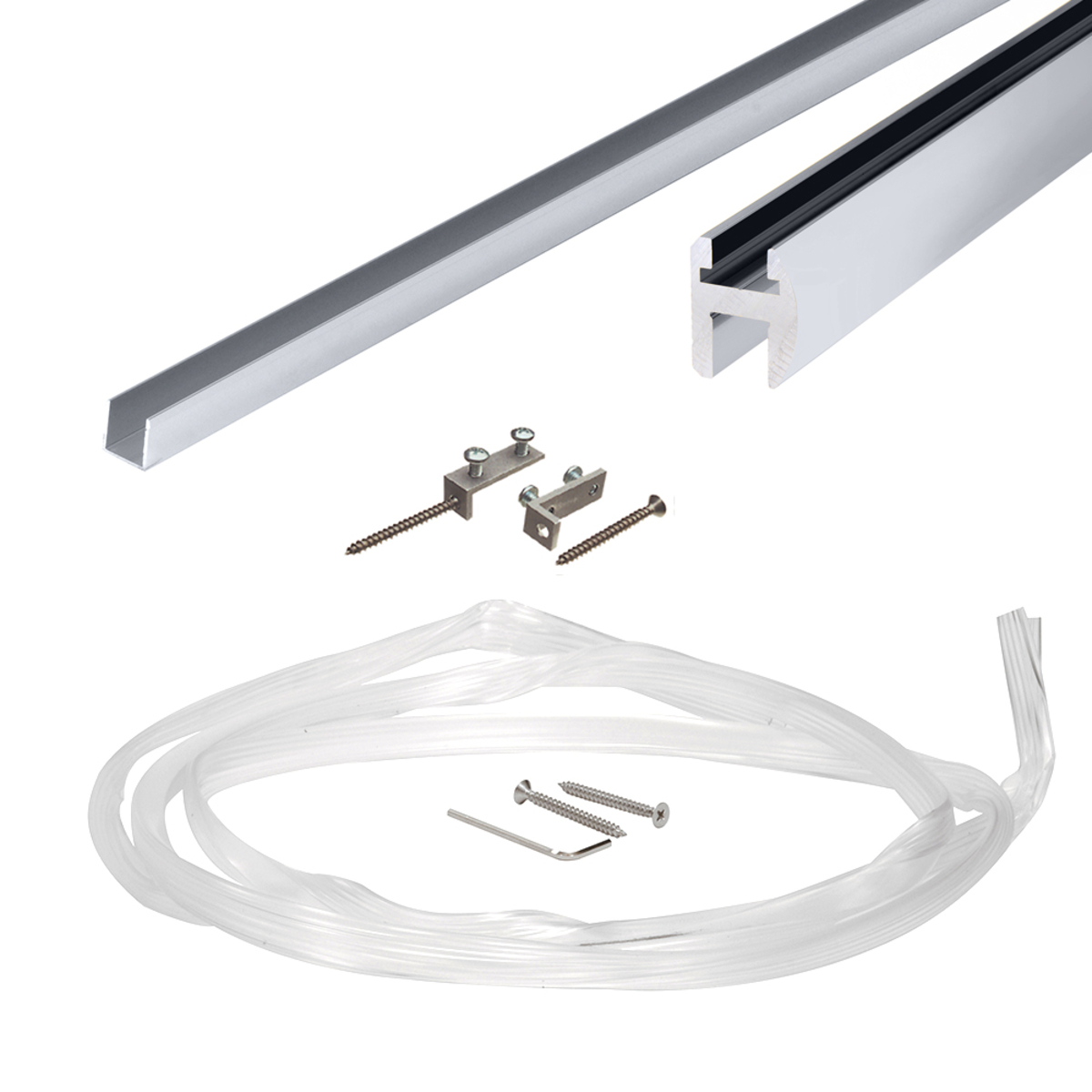

EACH DELUXE HEADER KIT CONTAINS:
  • 66" (1.67 m), 95" (2.41 m) or 144" (3.65 m) Piece of Header Extrusion
  • 36" (.91 m) Piece of Snap-In Filler for Door Pocket
  • Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass [not needed for 1/2" (12 mm) Glass]
  • Pack of BWB2 Brass Wall Mounting Brackets (Pack includes two Brackets)

    NOTE: If choosing to use a Header Kit with 1/4" (6 mm) glass, Cat. No. HV140 Clear Vinyl may be ordered separately.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Ship via: No UPS - Common Carrier Only

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Satin Anodized

    Glazing Pocket Width: 1/2

    Glazing Thickness: 1/2 in. (12 mm)

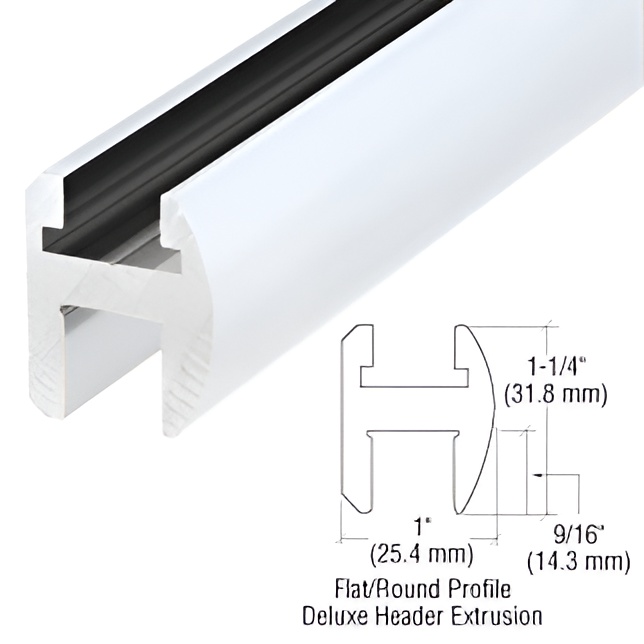

    Height: 1-1/4 in. (32 mm)

    Length: 95 in. (2413 mm)

    Material: Aluminum

    Profile: Flat / Curved

    Series: Deluxe

    Shipping Limitations: UPS Oversize Rate

    Width: 1 in. (25.4 mm)
