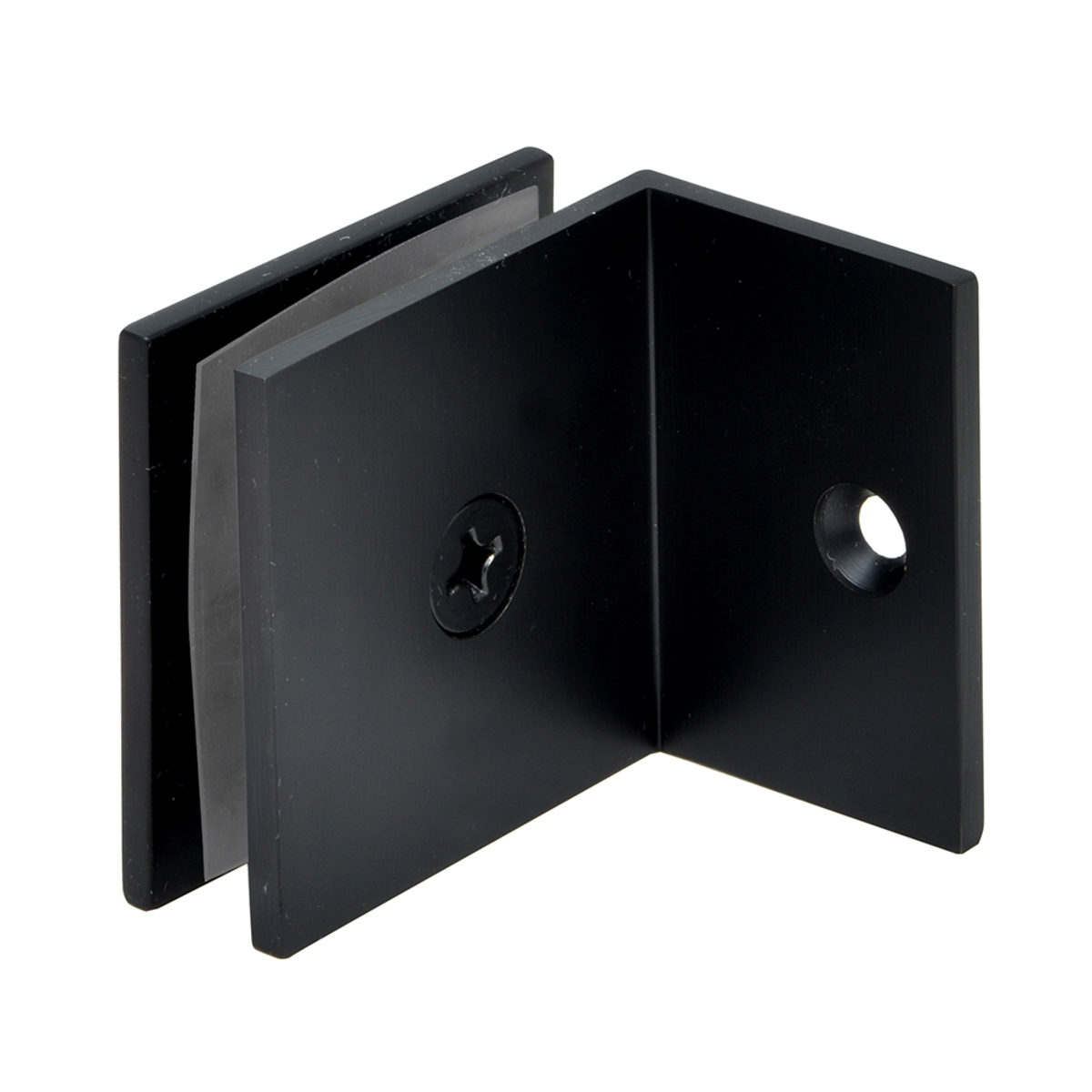

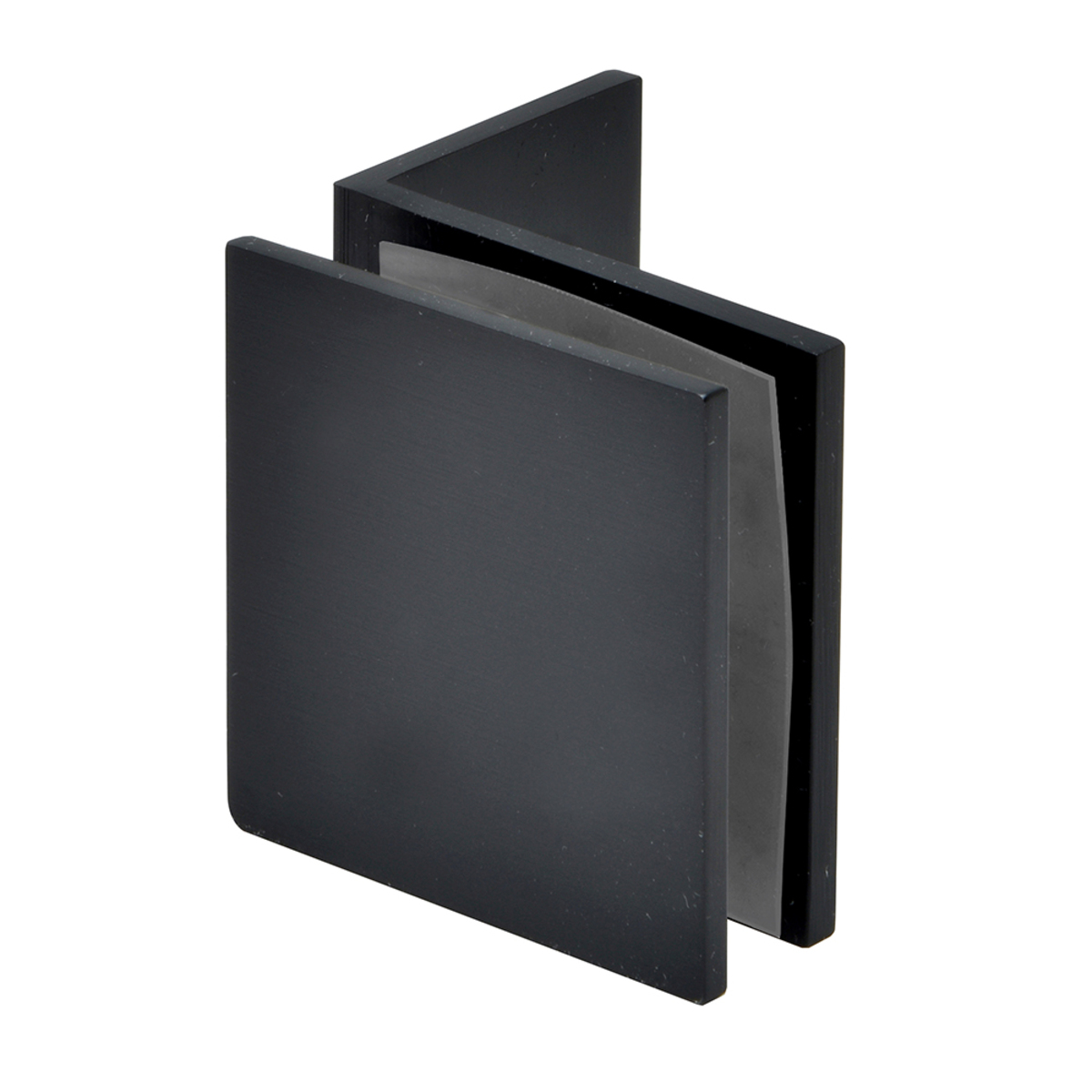

CRL SGC037MBL Matte Black Fixed Panel Square Clamp with Small Leg

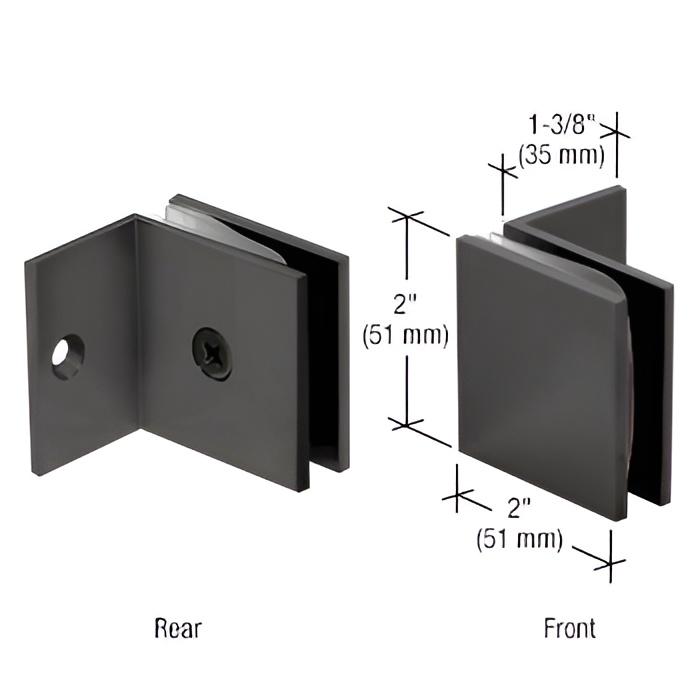

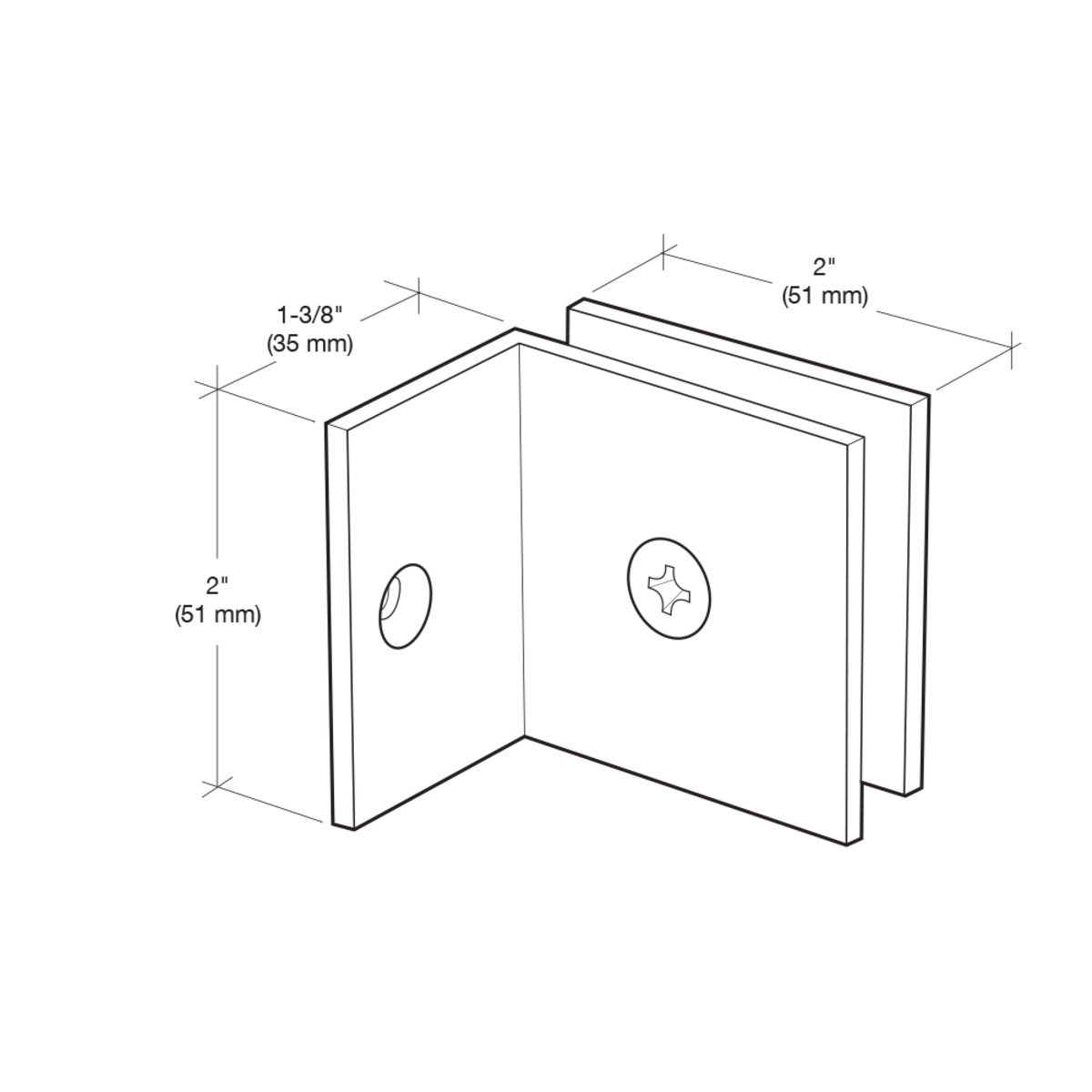

C.R. Laurence SGC037MBL Matte Black Fixed Panel Square Clamp With Small Leg offers an elegant solution for securing vertical fixed glass panels, contributing to a sleek 'all-glass' appearance. Designed to mount directly to walls, ceilings, or floors, this clamp is compatible with monolithic tempered glass and requires a 3/4" (19 mm) hole for installation. With a clearance of 3/16" (5 mm) between the glass and wall, the SGC037MBL features a robust small 90-degree leg that enhances mounting stability, ensuring peace of mind in high-traffic areas. The clamp supports glazing thicknesses ranging from 3/8 in. to 1/2 in. (10 mm to 12 mm), making it versatile for various applications, including corner enclosures, niches, and tailor-made solutions. Constructed from durable brass with a striking matte black finish, this clamp not only provides strength but also adds a modern touch to any space. It measures 2 in. (51 mm) in height and width, with a leg width of 1-3/8 in. (35 mm). For a flawless installation, clear silicone can be utilized to create a clean, water-tight seal. The SGC037MBL is the ideal choice for professionals looking to combine functionality with aesthetic appeal in their glazing projects.

Matte Black Fixed Panel Square Clamp With Small Leg

• Clamps Contribute to 'All-Glass' Appearance
• Requires 3/4" (19 mm) Hole in Glass
• Small 90 Degree Leg Provides Extra Secure Mounting Surface
• Use Monolithic Tempered Glass
