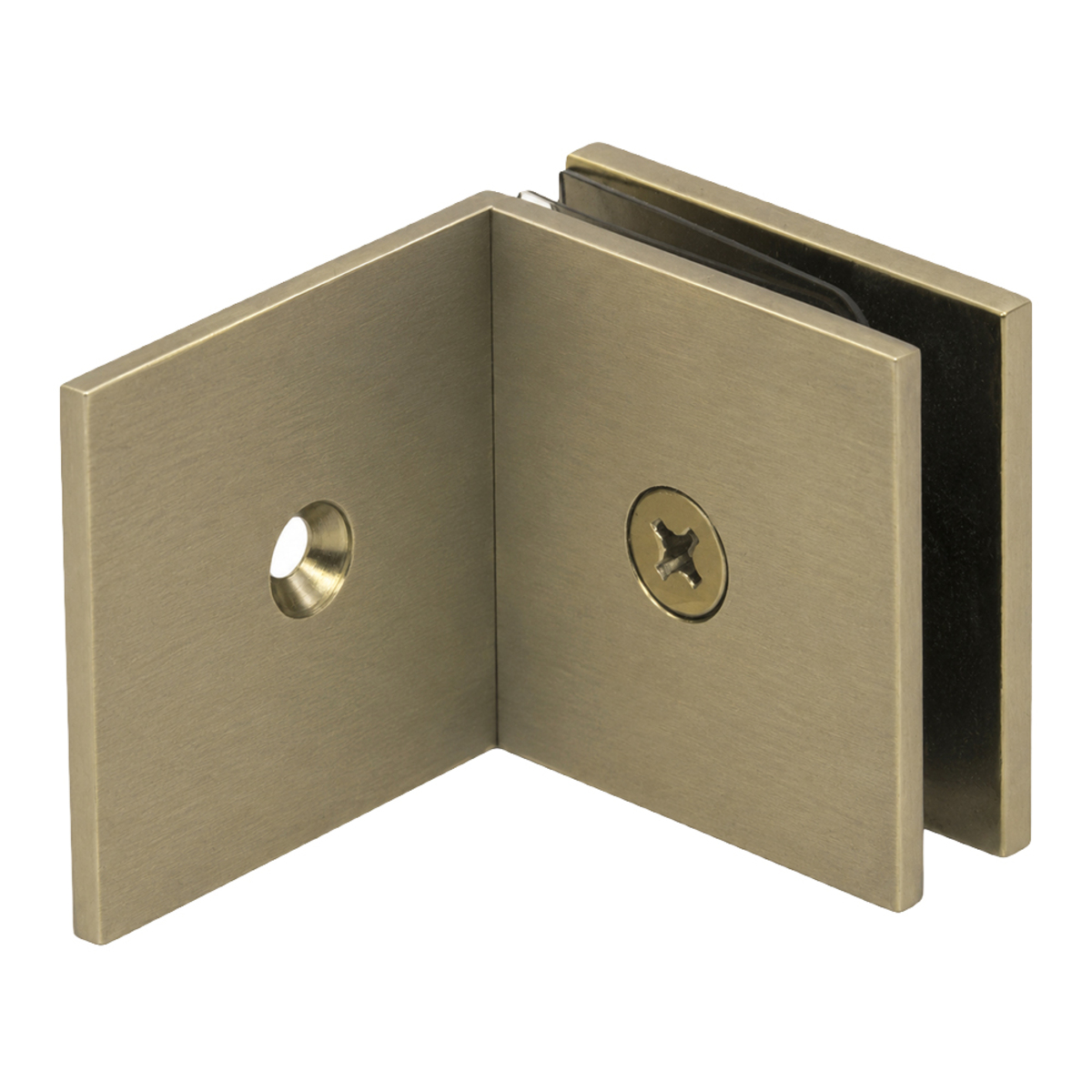

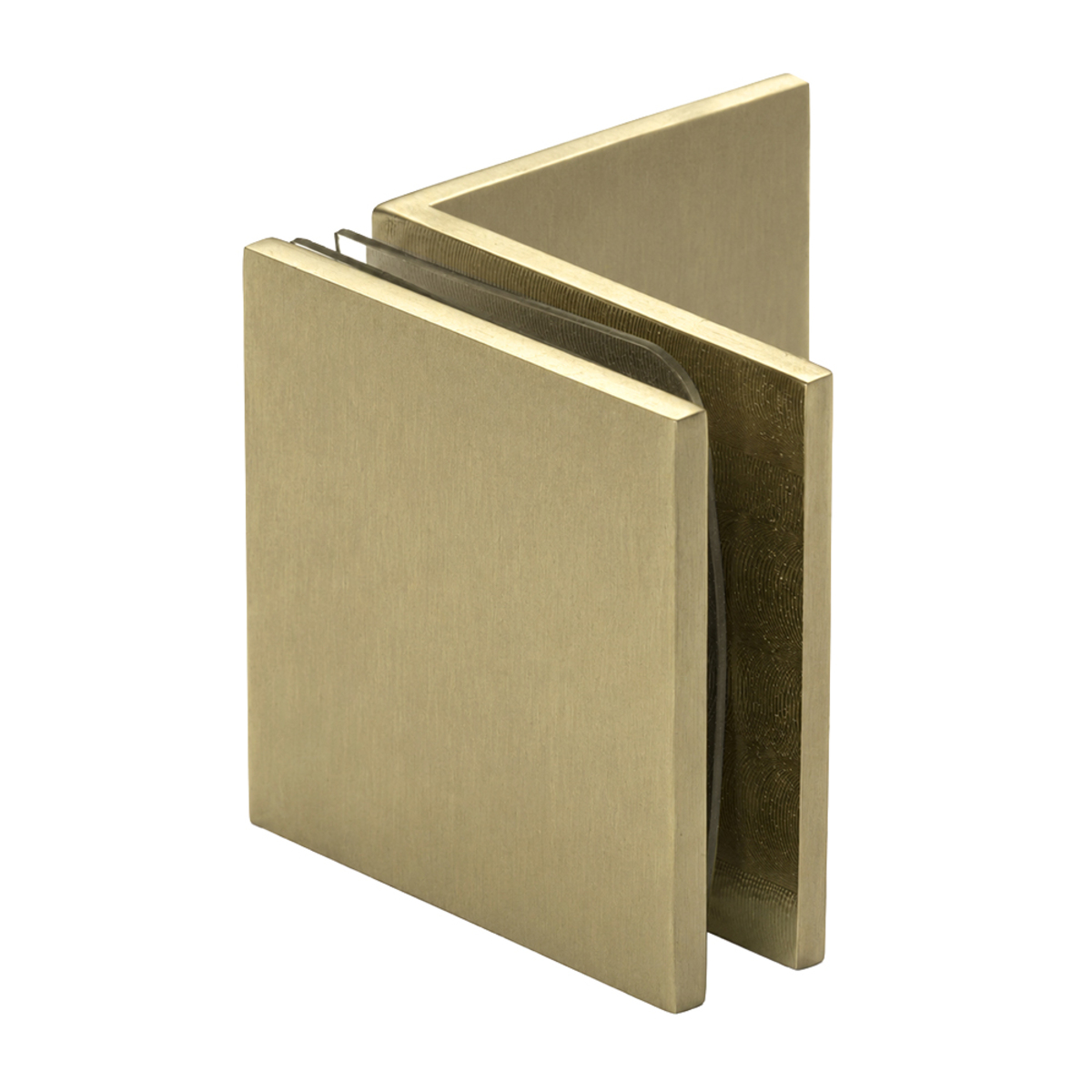

C.R. Laurence SGC039BBRZ Brushed Bronze Fixed Panel Square Clamp With Large Leg offers a sophisticated solution for securing vertical fixed glass panels. Designed for a seamless 'all-glass' appearance, this clamp is ideal for modern architectural applications. It requires a 3/4" (19 mm) hole in the glass, making it compatible with monolithic tempered glass ranging from 3/8" to 1/2" (10 to 12 mm) thick. The 90-degree leg design not only enhances structural integrity but also covers more wall surface area, providing a more polished look. With a clearance of just 1/16" (2 mm) between the glass and wall, this clamp maintains a minimalistic aesthetic. To ensure a clean, water-tight seal, clear silicone can be applied, further enhancing the durability of the installation. Constructed from solid brass with a brushed bronze finish, this clamp combines style and strength. It includes mounting screws and gaskets for convenient installation, making it a practical choice for both building professionals and knowledgeable homeowners. Elevate your glass installations with the reliability and elegance of the C.R. Laurence SGC039BBRZ Fixed Panel Square Clamp.
Brushed Bronze Fixed Panel Square Clamp With Large Leg
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Case Quantity: 50
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Bronze
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

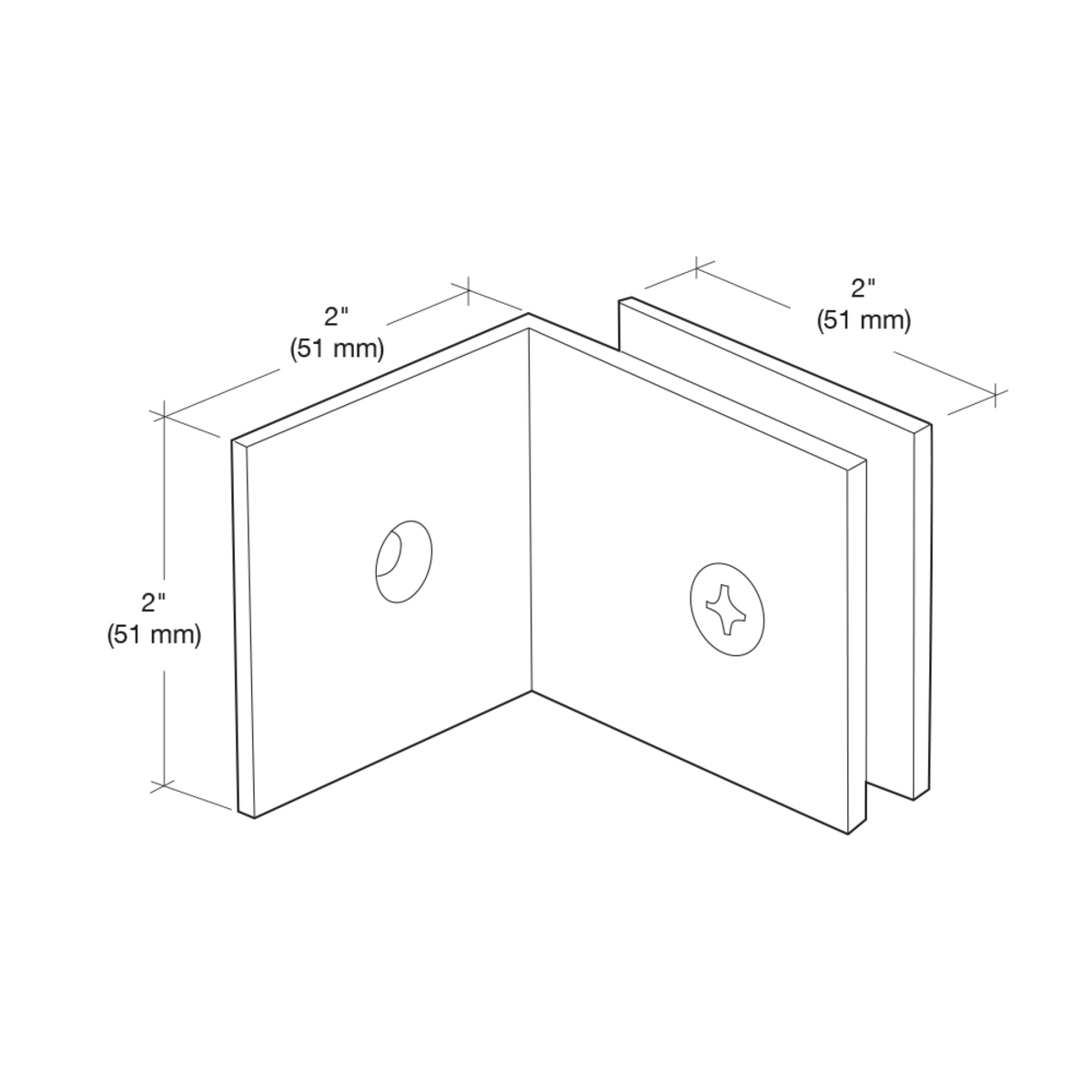

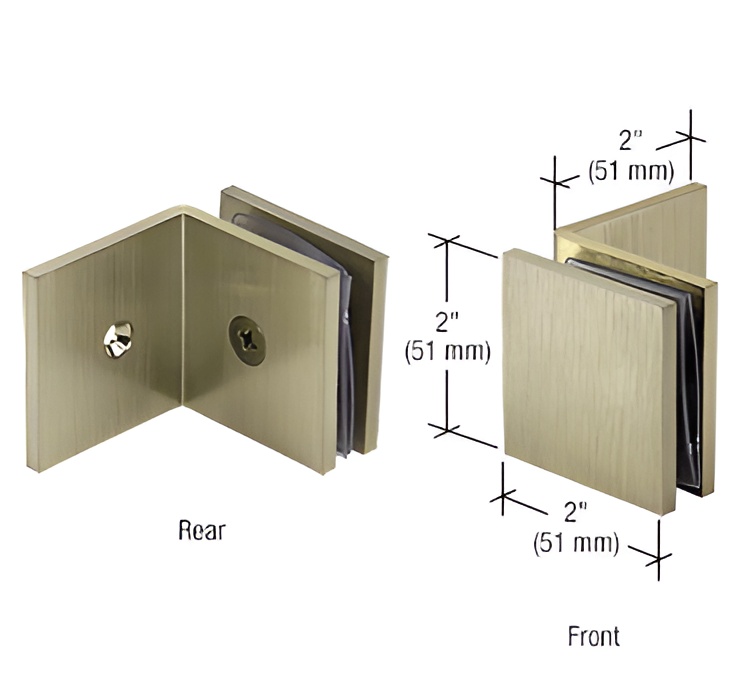

Height: 2 in. (51 mm)
Leg Width: 2 in. (51 mm)
Length: 2 in. (51 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 2 in. (51 mm)
