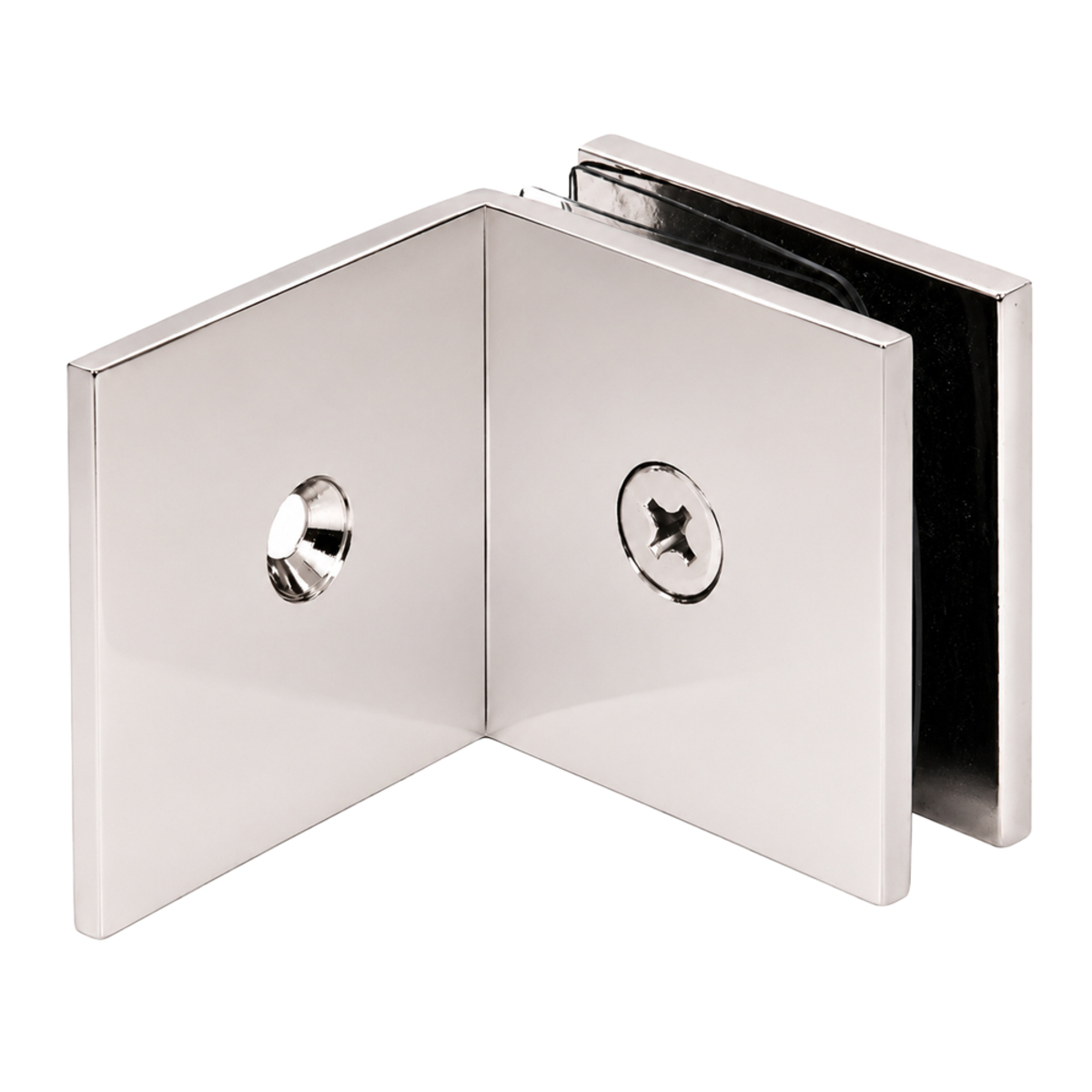

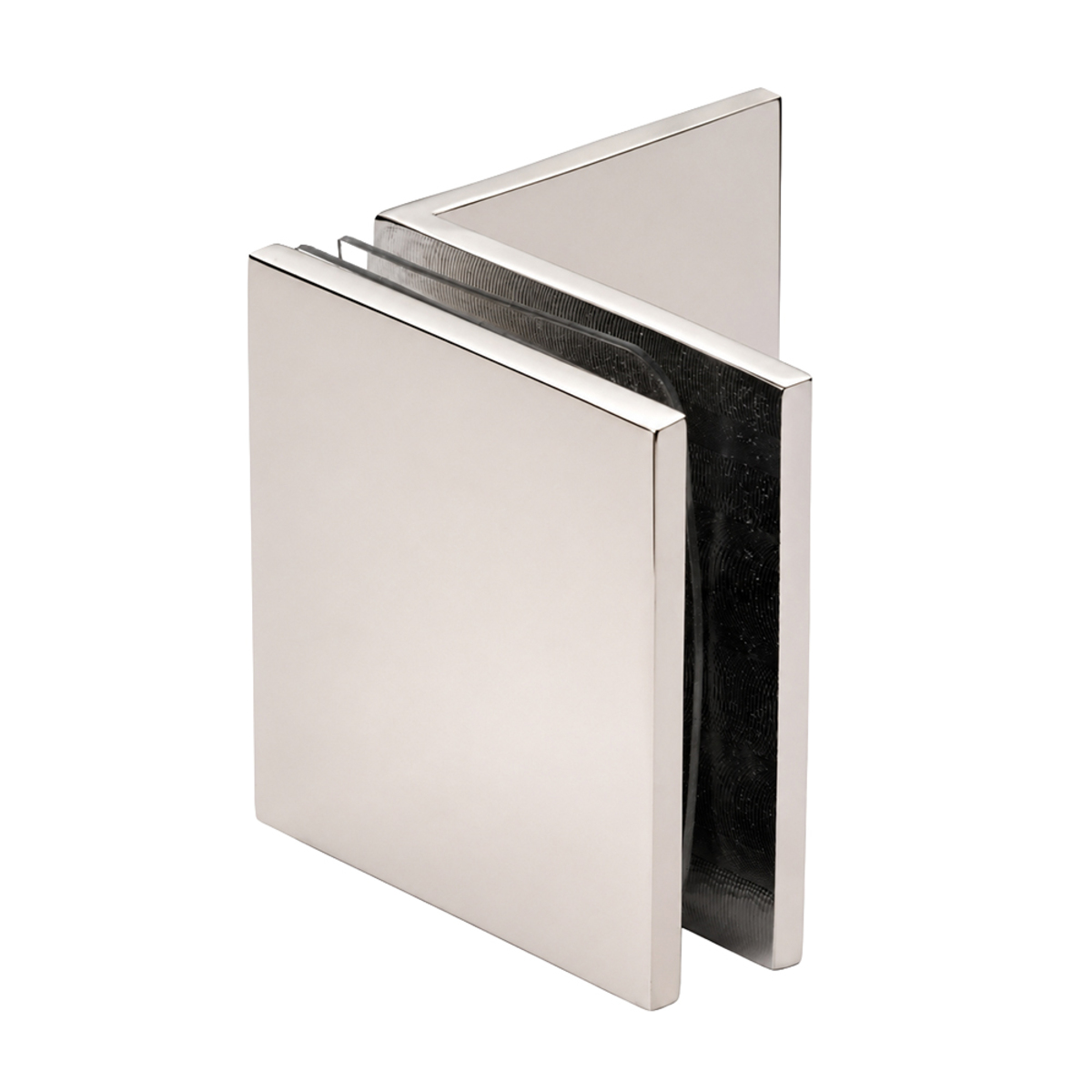

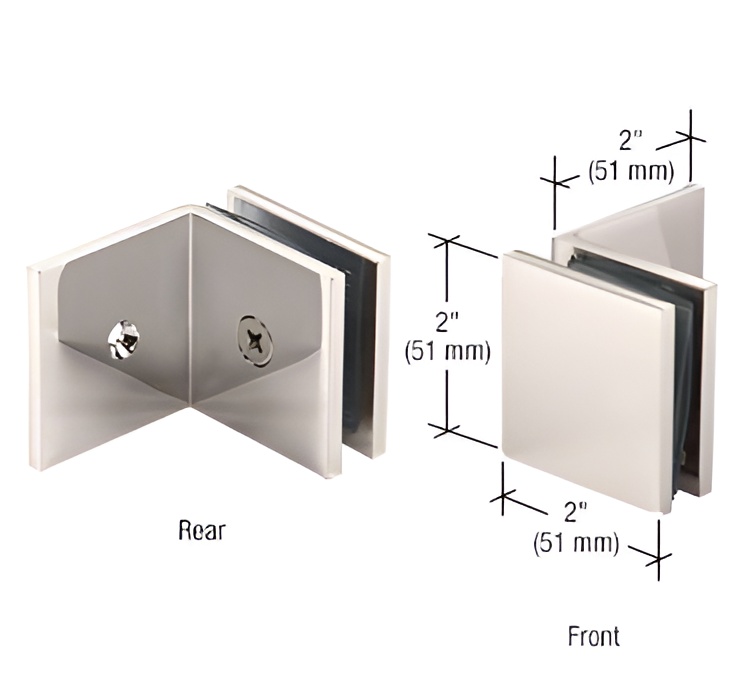

C.R. Laurence SGC039PN Polished Nickel Fixed Panel Square Clamp With Large Leg is designed for securing vertical fixed glass panels, providing an elegant solution that contributes to a sleek 'all-glass' appearance. This clamp requires a 3/4" (19 mm) hole in the glass and is compatible with monolithic tempered glass, accommodating thicknesses from 3/8" to 1/2" (10 to 12 mm). Engineered with a larger leg, this model covers more wall surface, enhancing stability and ensuring a robust installation. The clearance between the glass and wall is a mere 1/16" (2 mm), allowing for a seamless look. For added protection against water ingress, clear silicone can be applied to create a clean, water-tight seal. Constructed from solid brass with a polished nickel finish, the SGC039PN not only offers durability but also elevates the aesthetic of any space. Each clamp includes mounting screws and gaskets for easy installation. With dimensions of 2" x 2" (51 mm x 51 mm) for height, width, and leg width, this wall-mounted clamp combines functionality with style, making it an ideal choice for modern architectural designs.
Polished Nickel Fixed Panel Square Clamp With Large Leg
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Case Quantity: 50
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Nickel
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)
Height: 2 in. (51 mm)
Leg Width: 2 in. (51 mm)
Length: 2 in. (51 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 2 in. (51 mm)
