CRL SGC135PN Polished Nickel 135 Square Glass-to-Glass Clamp

Your Price: $34.07

Retail Price:$40.78

Your Savings:$6.71(16%)

Secure your frameless shower enclosure with the CRL SGC135PN Polished Nickel Glass-to-Glass Clamp, designed for 5/16" to 1/2" glass.

Part Number : CRL_SGC135PN

Availability: 50 In Stock

Quantity

Description

CRL SGC135PN Polished Nickel 135 Square Glass-to-Glass Clamp

C.R. Laurence SGC135PN Polished Nickel Square 135 Degree Glass-to-Glass Clamp is an exceptional choice for securing fixed glass panels in frameless shower enclosures. Designed to accommodate glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), this clamp not only enhances structural integrity but also provides an elegant aesthetic, offering an 'all-glass' look that traditional U-channels cannot match. Crafted from solid brass, the SGC135PN is engineered for durability and visual appeal, promising to maintain its polished finish with proper care. The sharp corners of this clamp allow for both mitered and flat-edged glass, making it versatile for a variety of applications, including custom showcase displays and partitions. Essential for installation, glass fabrication is required to accommodate the clamps, ensuring a seamless fit. Each clamp includes mounting screws and gaskets for convenience. With dimensions of 2 inches in height and a leg width of 2-1/2 inches, the SGC135PN is designed for a 135-degree glass-to-glass angle, making it an ideal solution for tailor-made projects. Available in a polished nickel finish, this clamp not only meets functional requirements but also complements modern design aesthetics beautifully.

Polished Nickel Square 135 Degree Glass-to-Glass Clamp

For 5/16" to 1/2" (8 to 12 mm) Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

CRL Square 135 Degree Glass-to-Glass Clamps have sharp corners. The glass can be mitered or flat edged. They are designed to join two panels at 135 degrees. These Clamps have many uses, and are typically utilized in the fabrication of custom showcase displays, trophy cases, partitions, and 'all-glass' enclosures. Available in a variety of popular finishes and styles to match designer hardware. Made of solid brass, these Clamps are engineered to remain beautiful for years with proper care and cleaning. Drawings and templates are available.

NOTE: Replacement Gasket is Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Tailor Made Solutions

Finish/ Color:: Polished Nickel

Glass To Glass Angle: 135

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

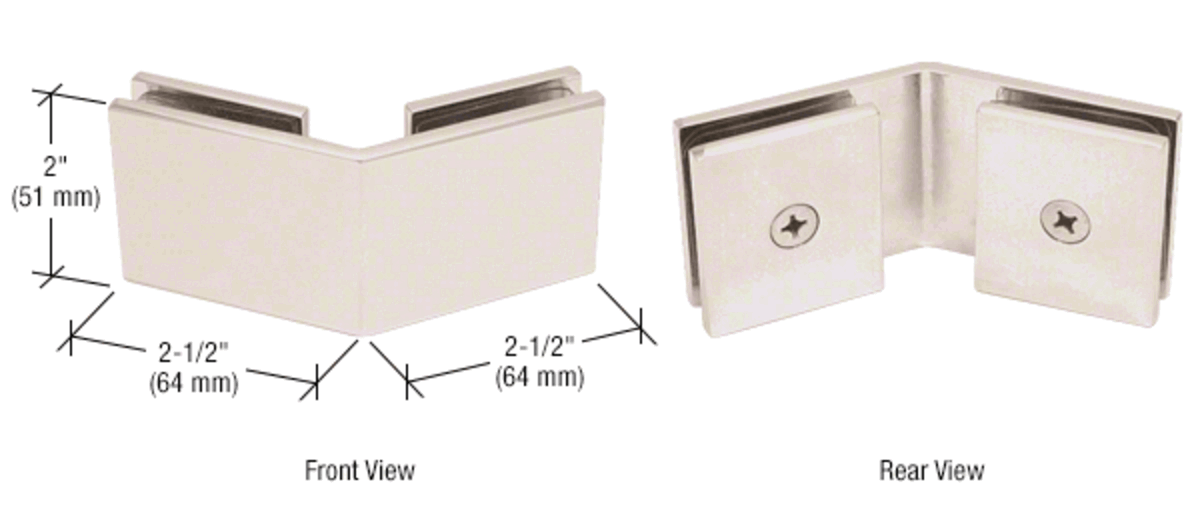

Height: 2 in. (51 mm)

Leg Width: 2-1/2 in. (64 mm)

Material: Brass

Mounting Type: Glass To Glass

Shipping Limitations: None
