Images may not represent actual product and finish

CRL SGC180ULBR Unlacquered Brass 180 Glass-to-Glass Square Clamp

Your Price: $61.05

Retail Price:$73.08

Your Savings:$12.03(16%)

The CRL SGC180ULBR Unlacquered Brass Square Clamp elegantly connects two glass panels at 180 degrees, enhancing your design with a sleek, modern look.

Part Number : CRL_SGC180ULBR

Availability: 74 In Stock

Quantity

Description

CRL SGC180ULBR Unlacquered Brass 180 Glass-to-Glass Square Clamp

C.R. Laurence SGC180ULBR Unlacquered Brass Square 180 Degree Glass-to-Glass Clamp offers a sophisticated solution for joining two glass panels at a seamless 180-degree angle. Crafted from solid brass, this clamp not only ensures durability but also enhances the aesthetic appeal of your project, providing an elegant 'all-glass' look that distinguishes it from traditional U-channel options. Designed specifically for monolithic tempered glass, the SGC180ULBR accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm). The sharp, squared-off corners of the clamp create a clean, modern profile, ideal for applications such as custom wall partitions, trophy cases, showcases, and transom systems. Each installation requires glass fabrication to accommodate the clamps, with necessary templates and drawings available for precise application. Included with the clamp are mounting screws for wall clamps and gaskets, ensuring a straightforward installation process. While the unlacquered brass finish provides a timeless look, it is important to note that brass may oxidize over time, leading to a unique patina that some may find appealing. Enhance your architectural projects with the quality and craftsmanship of C.R. Laurence's glass-to-glass clamps, designed for professionals seeking both function and style.

Unlacquered Brass Square 180 Degree Glass-to-Glass Clamp

Joins Two Panels at 180 Degrees
Solid Brass
Use Monolithic Tempered Glass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

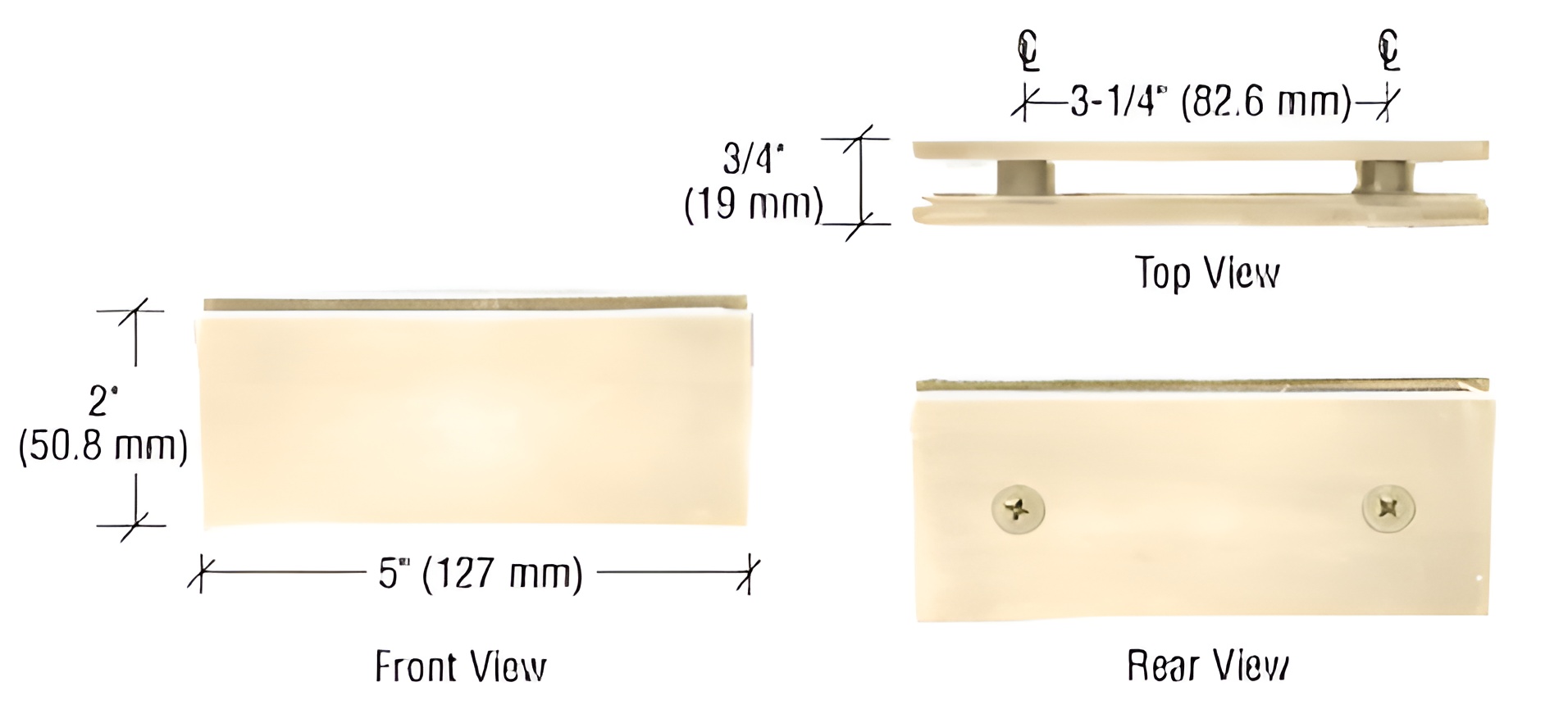

CRL Square 180 Degree Glass-to-Glass Clamp are have sharp squared off corners. They can be used to connect two fixed glass panels meeting inline. They feature solid brass construction and a variety of finishes to match our complete line of door hinges and clamps. These clamps are typically used in custom wall partitions, transoms, showcases, trophy cases, and 'all-glass' enclosures. They will instantly add a look of quality to the appearance of your project. Drawings and templates for all Clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Niche, Tailor Made Solutions

Finish/ Color:: Unlacquered Brass

Glass To Glass Angle: 180

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Height: 2 in. (51 mm)

Material: Brass

Mounting Type: Glass To Glass

Shipping Limitations: None

Width: 5 in. (127 mm)
