CRL SGC186SB Satin Brass Square Movable Transom Wall Clamp

Your Price: $18.45

Retail Price:$22.08

Your Savings:$3.63(16%)

The CRL SGC186SB Satin Brass Square Wall Mount Movable Transom Clamp securely holds 3/8" to 1/2" glass, allowing steam release.

Part Number : CRL_SGC186SB

Availability: 408 In Stock

Quantity

Description

CRL SGC186SB Satin Brass Square Movable Transom Wall Clamp

C.R. Laurence SGC186SB Satin Brass Square Wall Mount Movable Transom Clamp is expertly crafted to provide a reliable solution for mounting movable transoms. Designed for glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this clamp allows the transom to swivel, facilitating the release of steam while maintaining aesthetic appeal. Its robust solid brass construction ensures durability and a sophisticated satin brass finish that complements a variety of architectural styles. This wall mount clamp must be centered on the transom for balanced movement, accommodating a maximum transom size of 16" x 30" (406 x 762 mm). For larger transoms, pivot hinges can be utilized as transom clamps. The product includes gaskets and mounting screws, making installation straightforward. Please note that the clamp requires specific glass fabrication, including 3/4" (19 mm) holes for compatibility with models such as SGC180, SGC135, SGC90, and SGC186. While the brass finish is durable, it is essential to be aware that oxidation may lead to tarnishing over time. For replacement parts, the nylon washer is Cat. No. 90295A120, and the gasket is Cat. No. SGCU1G, ensuring you can maintain your installation with ease.

Satin Brass Square Wall Mount Movable Transom Clamp

For 3/8" to 1/2" (10 to 12 mm) Thick Glass
Glass Transom Swivels to Allow Release of Steam
Wall Mount, and 180 Degree Models Available
Solid Brass Material
Use Monolithic Tempered Glass

CRL Square Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). NOTE: Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes
Includes: Gaskets and Mounting Screws

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Niche, Tailor Made Solutions

Finish/ Color:: Satin Brass

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

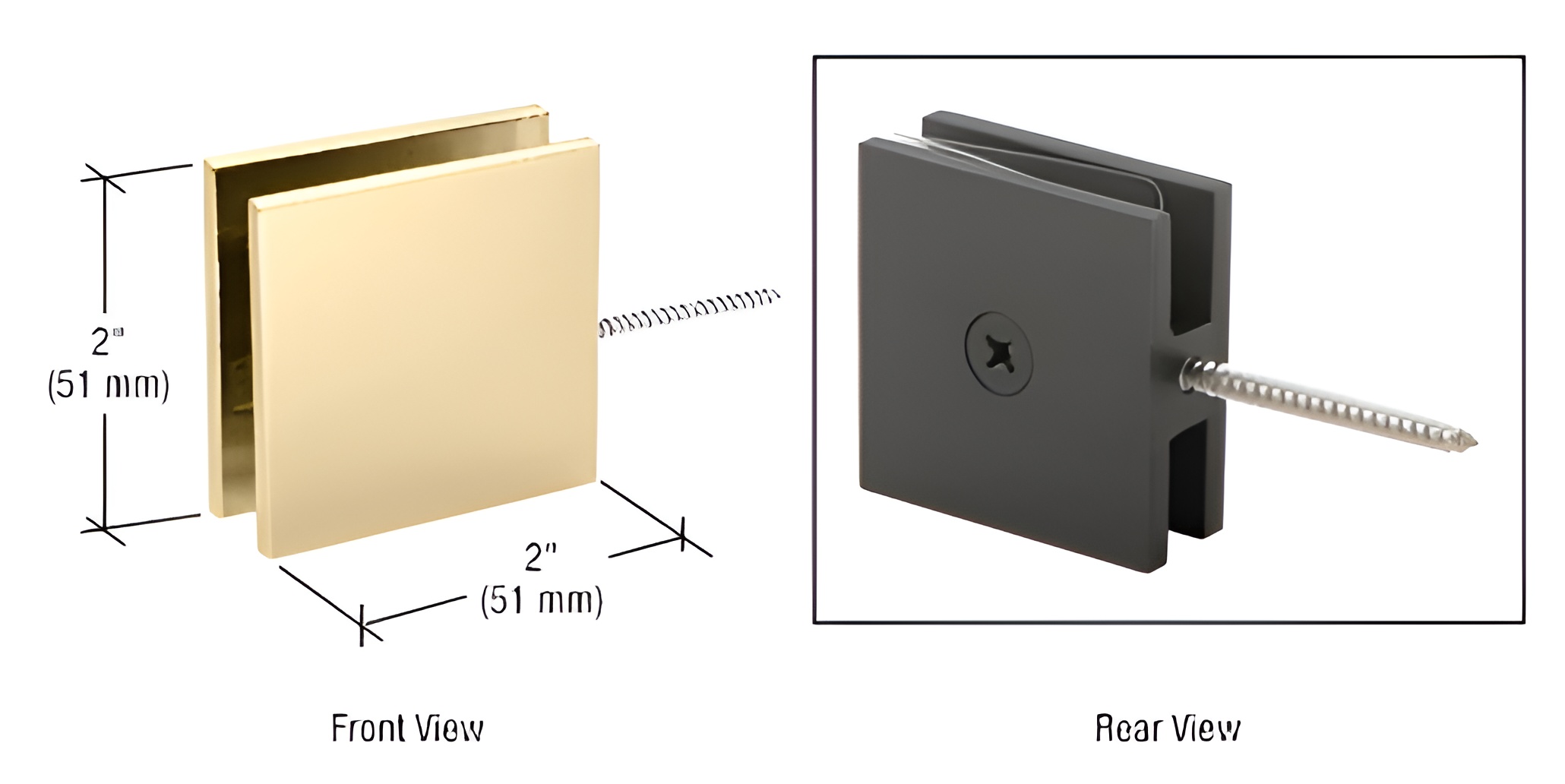

Height: 2 in. (51 mm)

Material: Brass

Mounting Type: Wall Mount

Shipping Limitations: None

Width: 2 in. (51 mm)
