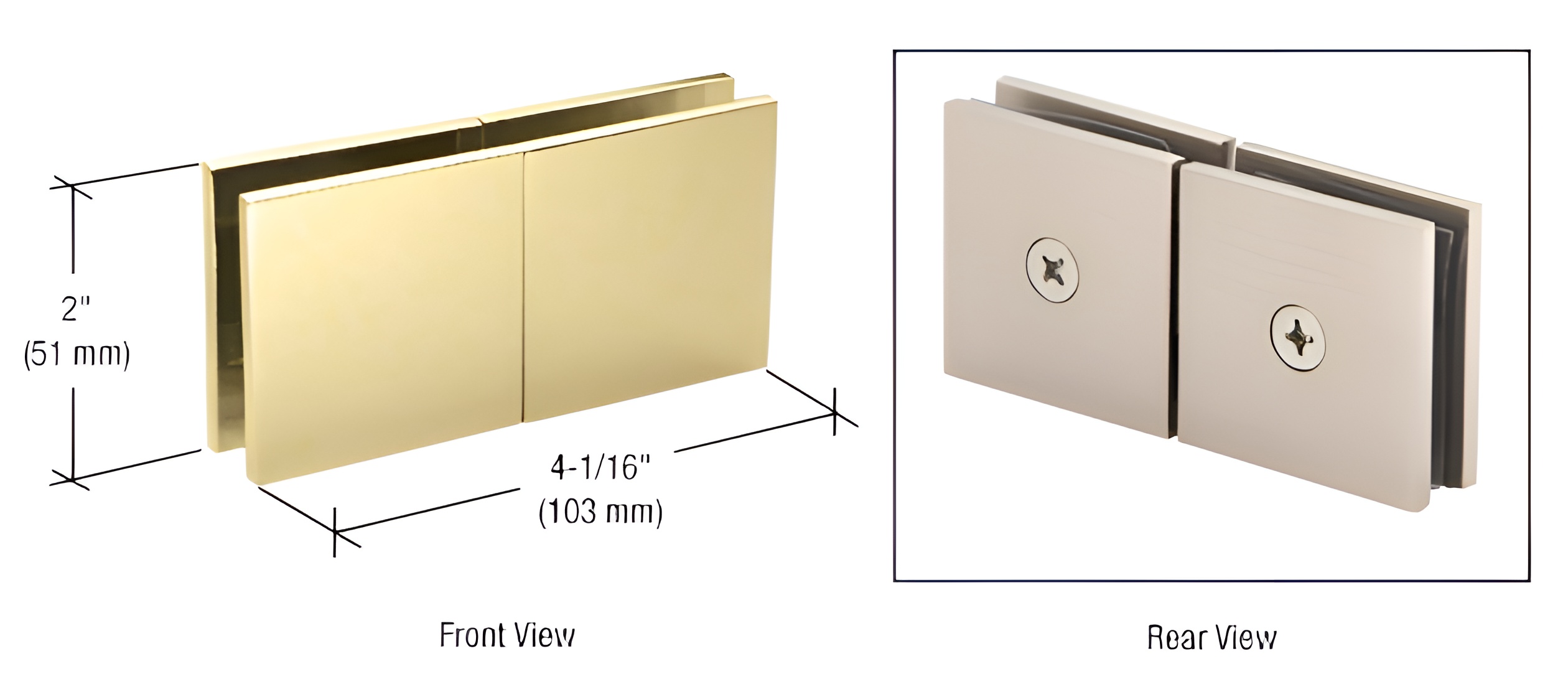

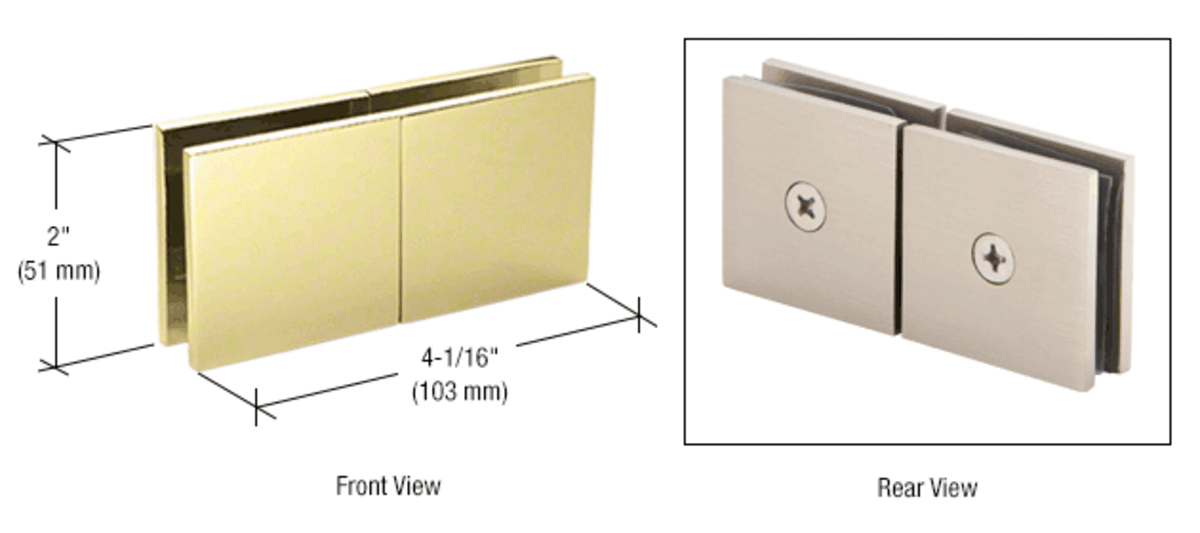

CRL SGC188BR Polished Brass 180 Glass-to-Glass Movable Transom Clamp

Your Price: $32.65

Retail Price:$39.08

Your Savings:$6.43(16%)

The CRL SGC188BR Polished Brass Transom Clamp enables 180-degree glass movement, perfect for steam release in stylish interiors.

Part Number : CRL_SGC188BR

Availability: 96 In Stock

Quantity

Description

CRL SGC188BR Polished Brass 180 Glass-to-Glass Movable Transom Clamp

C.R. Laurence SGC188BR Polished Brass Square 180 Degree Glass-to-Glass Movable Transom Clamp is an essential component for creating stylish and functional glass installations. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) thick glass, this clamp allows for the smooth rotation of a movable transom, facilitating the release of steam when needed. Its robust solid brass construction ensures durability while adding a touch of elegance to any setting. This innovative clamp is perfect for use with monolithic tempered glass and is compatible with a maximum movable transom size of 16" x 30" (406 x 762 mm). The design includes a 3/4" (19 mm) hole requirement for the fixed panel and a notch in the transom, ensuring a secure fit and reliable performance. Additionally, it comes complete with mounting screws and gaskets for easy installation. While the polished brass finish enhances the aesthetic appeal, users should be aware that brass can oxidize over time, leading to a tarnished appearance. This product is a practical choice for building professionals and homeowners seeking high-quality hardware for glass applications. Experience the perfect blend of functionality and design with the SGC188BR Clamp, engineered for excellence in architectural glass solutions.

Polished Brass Square 180 Degree Glass-to-Glass Movable Transom Clamp

For 3/8" to 1/2" (10 to 12 mm) Thick Glass
Glass Transom Swivels to Allow Release of Steam
Wall Mount, and 180 Degree Models Available
Solid Brass Material
Use Monolithic Tempered Glass

CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).

NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Niche, Tailor Made Solutions

Finish/ Color:: Polished Brass

Glass To Glass Angle: 180

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Height: 2 in. (51 mm)

Material: Brass

Mounting Type: Pivoting Glass To Glass

Shipping Limitations: None

Width: 4-1/16 in. (103 mm)
