Images may not represent actual product and finish

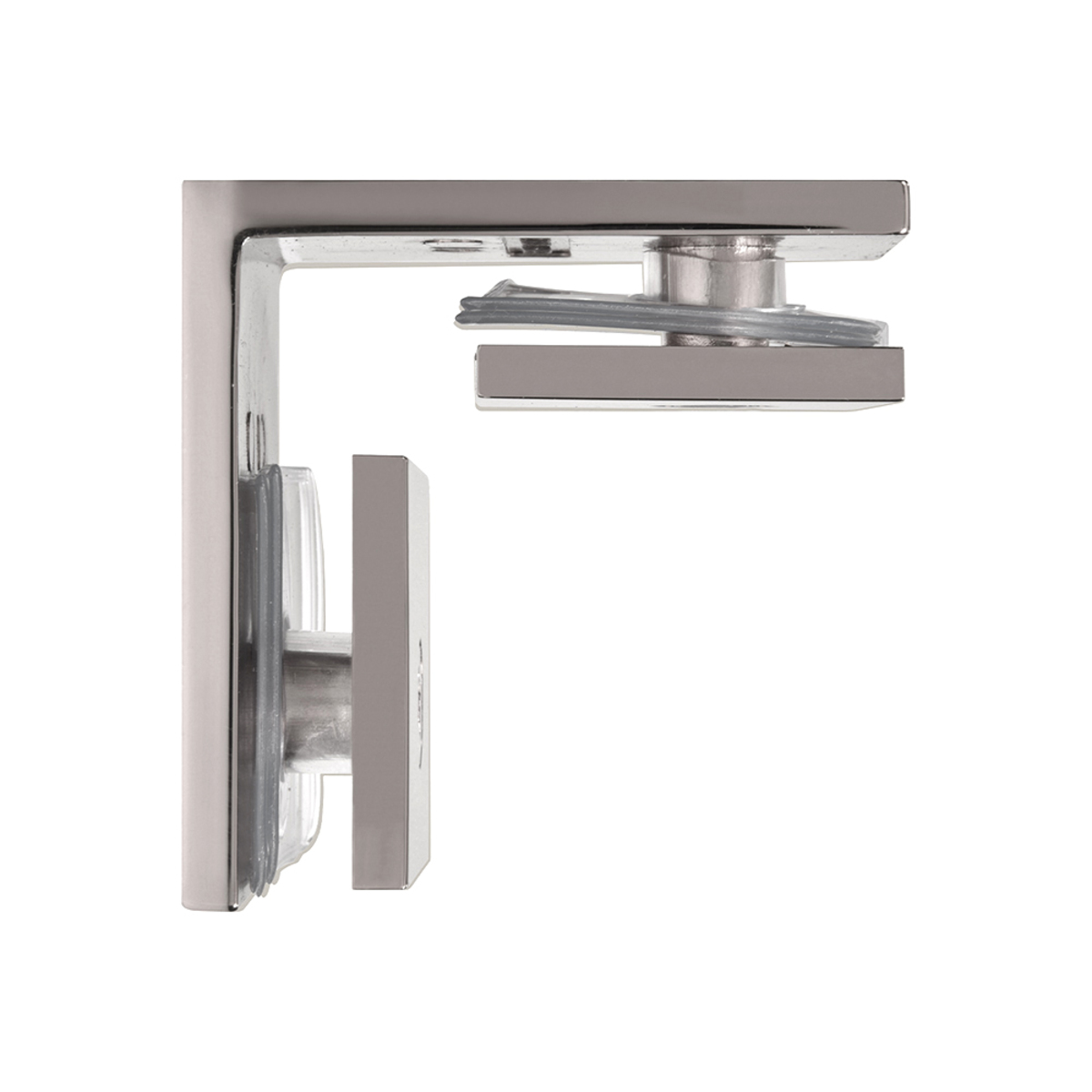

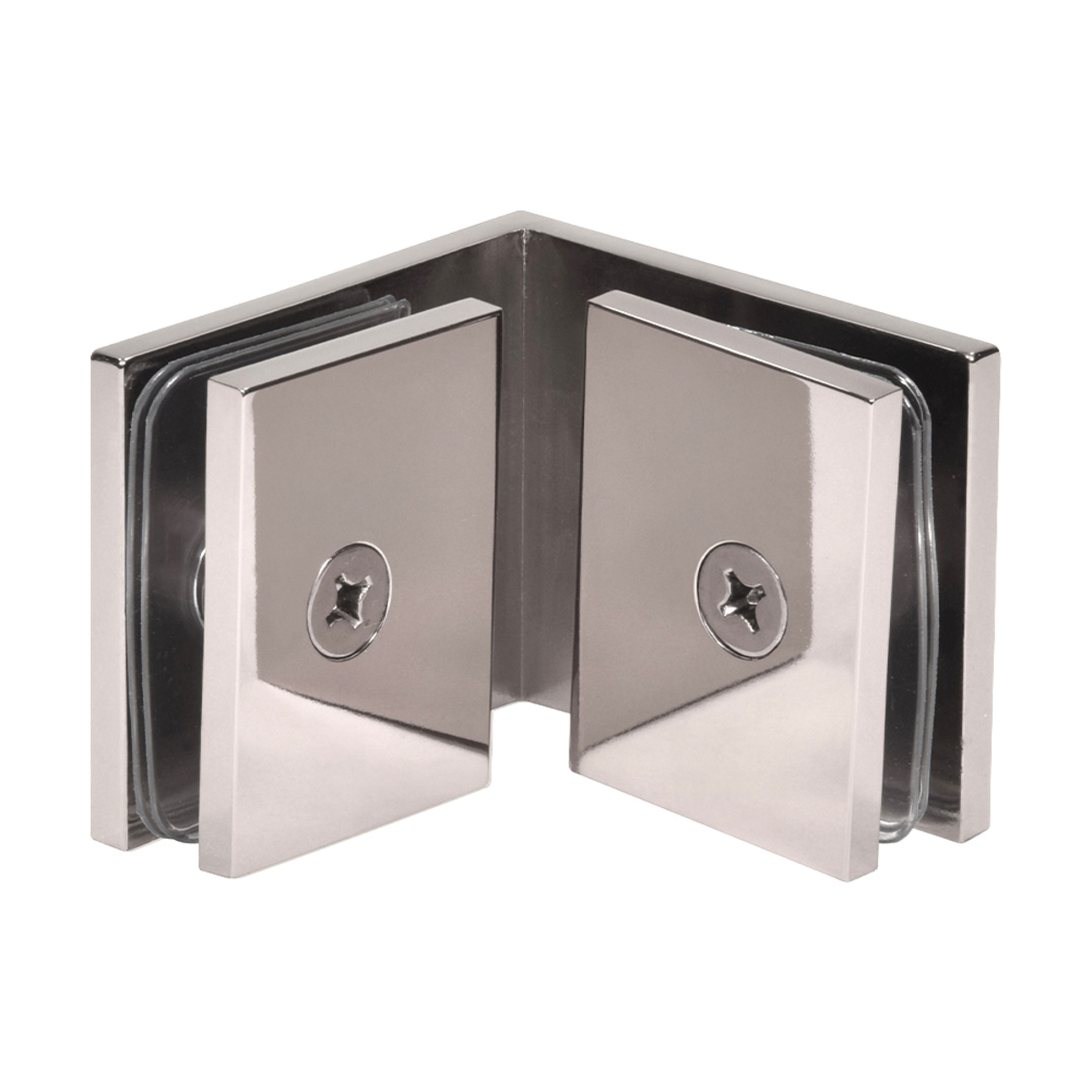

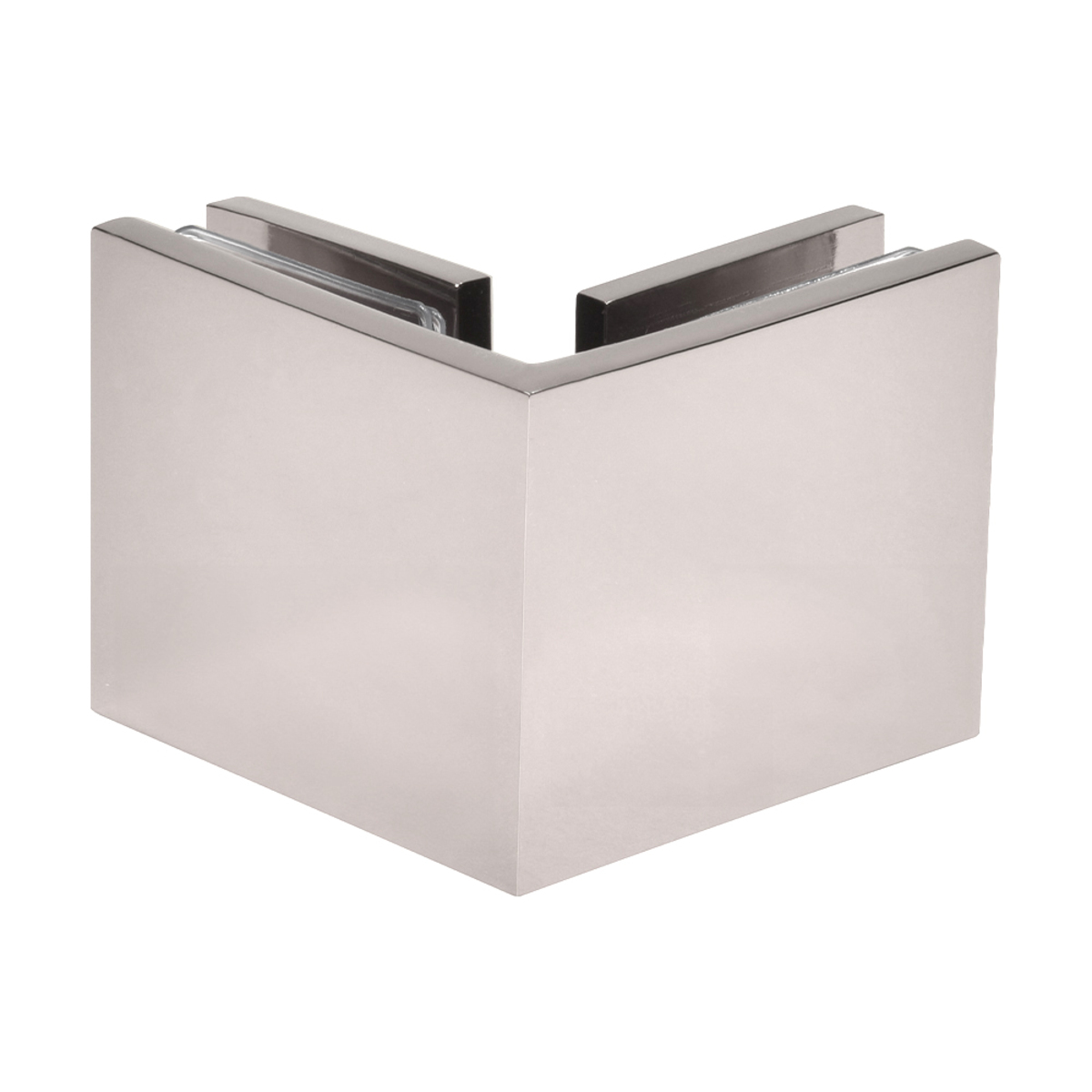

CRL SGC90PN Polished Nickel 90 Square Glass-to-Glass Clamp

Your Price: $34.07

Retail Price:$40.78

Your Savings:$6.71(16%)

Secure your frameless shower with the CRL SGC90PN Polished Nickel Glass-to-Glass Clamp, designed for 3/8" to 1/2" glass.

Part Number : CRL_SGC90PN

Availability: 449 In Stock

Quantity

Description

CRL SGC90PN Polished Nickel 90 Square Glass-to-Glass Clamp

C.R. Laurence SGC90PN Polished Nickel Square 90 Degree Glass-to-Glass Clamp is an essential component for creating sleek, frameless shower enclosures. Designed to accommodate glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this clamp secures fixed glass panels at a perfect 90-degree angle, enhancing the aesthetic appeal of any bathroom. Crafted from solid brass, the SGC90PN boasts a polished nickel finish that adds a touch of elegance while providing durability and resistance to corrosion. Its sharp, squared corners and closed back not only offer a modern design but also help achieve an 'all-glass' look, which is increasingly popular among contemporary installations. To ensure a secure fit, glass fabrication is required, including 3/4" (19 mm) holes for mounting. The clamp is versatile enough to support both overlapped and mitered glass panel connections. Each package includes necessary mounting screws and gaskets for easy installation, making it a convenient choice for professionals and DIY enthusiasts alike. With a height of 2 inches (51 mm) and a leg width of 2-1/2 inches (64 mm), the SGC90PN is designed to meet the demands of modern bathroom designs while maintaining structural integrity. This clamp is an excellent choice for corner, niche, or tailor-made solutions.

Polished Nickel Square 90 Degree Glass-to-Glass Clamp

For 3/8" to 1/2" (10 to 12 mm) Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

CRL Square 90 Degree Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

Finish/ Color:: Polished Nickel

Glass To Glass Angle: 90

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Height: 2 in. (51 mm)

Leg Width: 2-1/2 in. (64 mm)

Material: Brass

Mounting Type: Glass To Glass

Shipping Limitations: None
