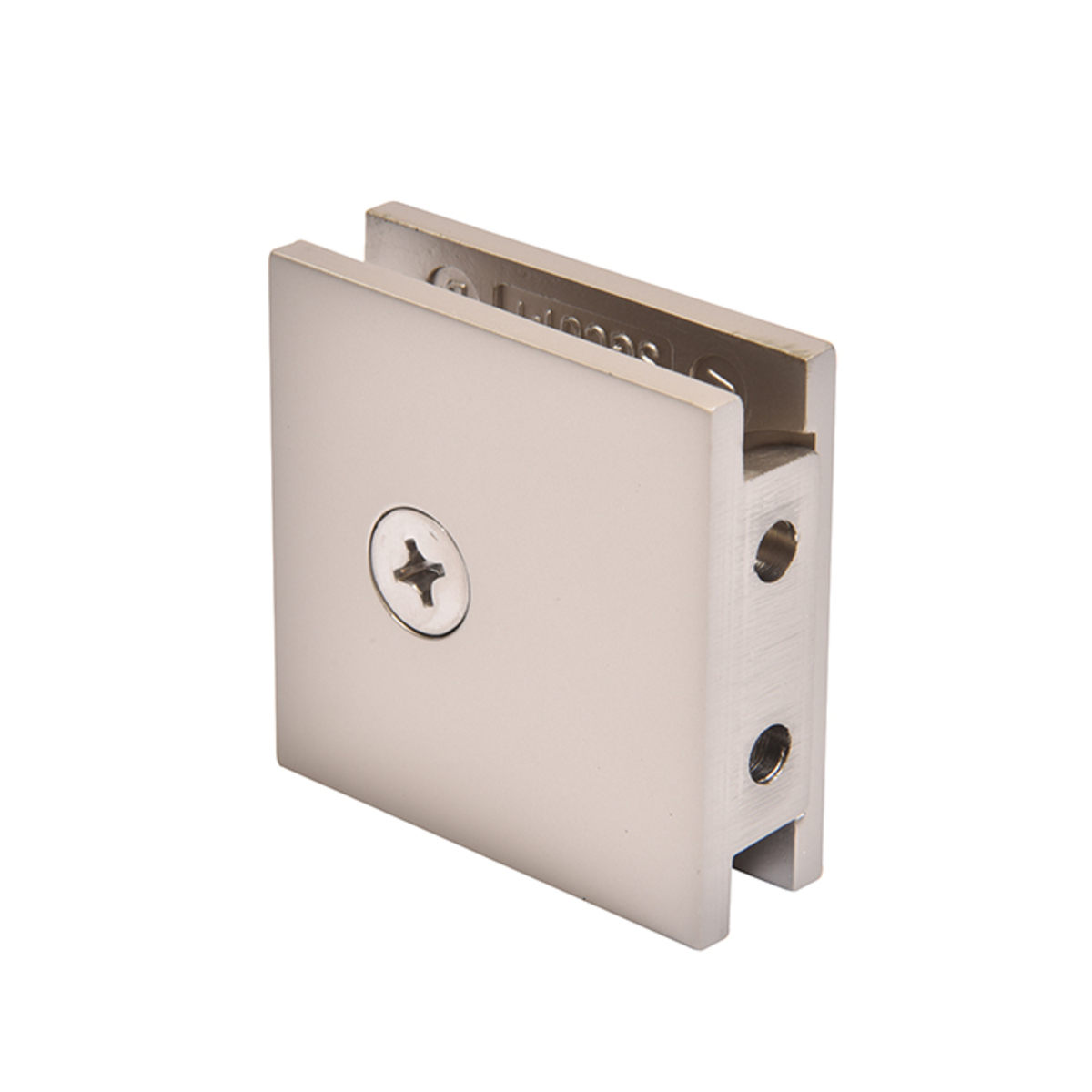

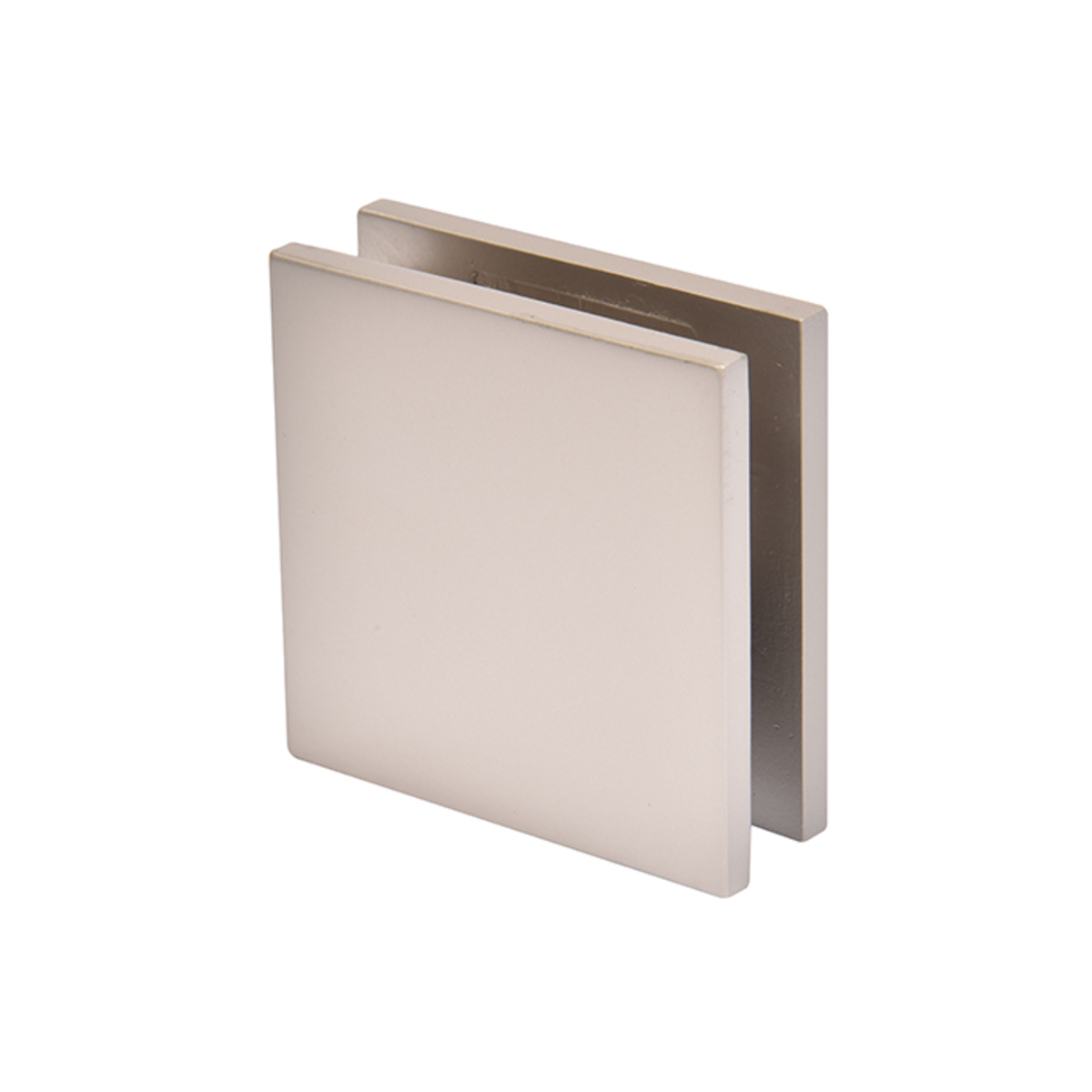

C.R. Laurence SGCU1SN Satin Nickel Square Style Notch-in-Glass Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), this sturdy clamp is crafted from solid brass, ensuring both durability and an elegant finish that complements modern bathroom aesthetics. What sets the SGCU1SN apart is its unique notch-in-glass design, which allows for a seamless 'all-glass' appearance, enhancing the overall visual appeal compared to traditional U-channel systems. This clamp mounts directly to the wall, ceiling, or floor, providing a secure hold while maintaining a sleek profile. With a clearance of just 1/16" (2 mm) between the glass and the wall, it integrates smoothly into your space. Included with the SGCU1SN are mounting screws and gaskets, making installation straightforward. For optimal performance, use monolithic tempered glass, and ensure a notch is fabricated in the panel for proper fitting. This clamp not only promotes a clean, water-tight seal when paired with clear silicone but also adds a touch of sophistication to any bathroom design.
Satin Nickel Square Style Notch-in-Glass Fixed Panel U-Clamp
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Nickel
Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)
Height: 2 in. (51 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 2 in. (51 mm)
