CRL SGF61BGW 316 Brushed Stainless Dual Pivot Glass Wall/Floor Swivel Fitting

C.R. Laurence SGF61BGW 316 Brushed Stainless Dual Pivot Glass-to-Wall/Floor Swivel Fitting is engineered to facilitate versatile glass configurations at various angles, making it a reliable choice for architectural projects. Available in six configurations, this fitting allows for either surface or flush glass attachments, which are sold separately, ensuring compatibility with your specific design needs. Constructed from durable 316 brushed stainless steel, this swivel fitting not only boasts a sleek appearance but also provides exceptional resistance to corrosion, ideal for both interior and exterior applications. It accommodates glass thicknesses ranging from 3/8" to 1/2" (10 to 12 mm), making it suitable for a variety of glazing installations. The straightforward design simplifies installation, allowing for a quick setup without compromising on style or strength. An optional 3-15/16" (100 mm) link is available for specialized applications, enhancing the fitting’s versatility. With a height of 1-1/4" (31.8 mm) and a width of 2-9/16" (65.1 mm), the C.R. Laurence Dual Pivot Swivel Fitting is compact yet robust. For optimal performance, regular maintenance is recommended to preserve its factory finish. This fitting is a smart addition to any professional-grade glazing supply collection.

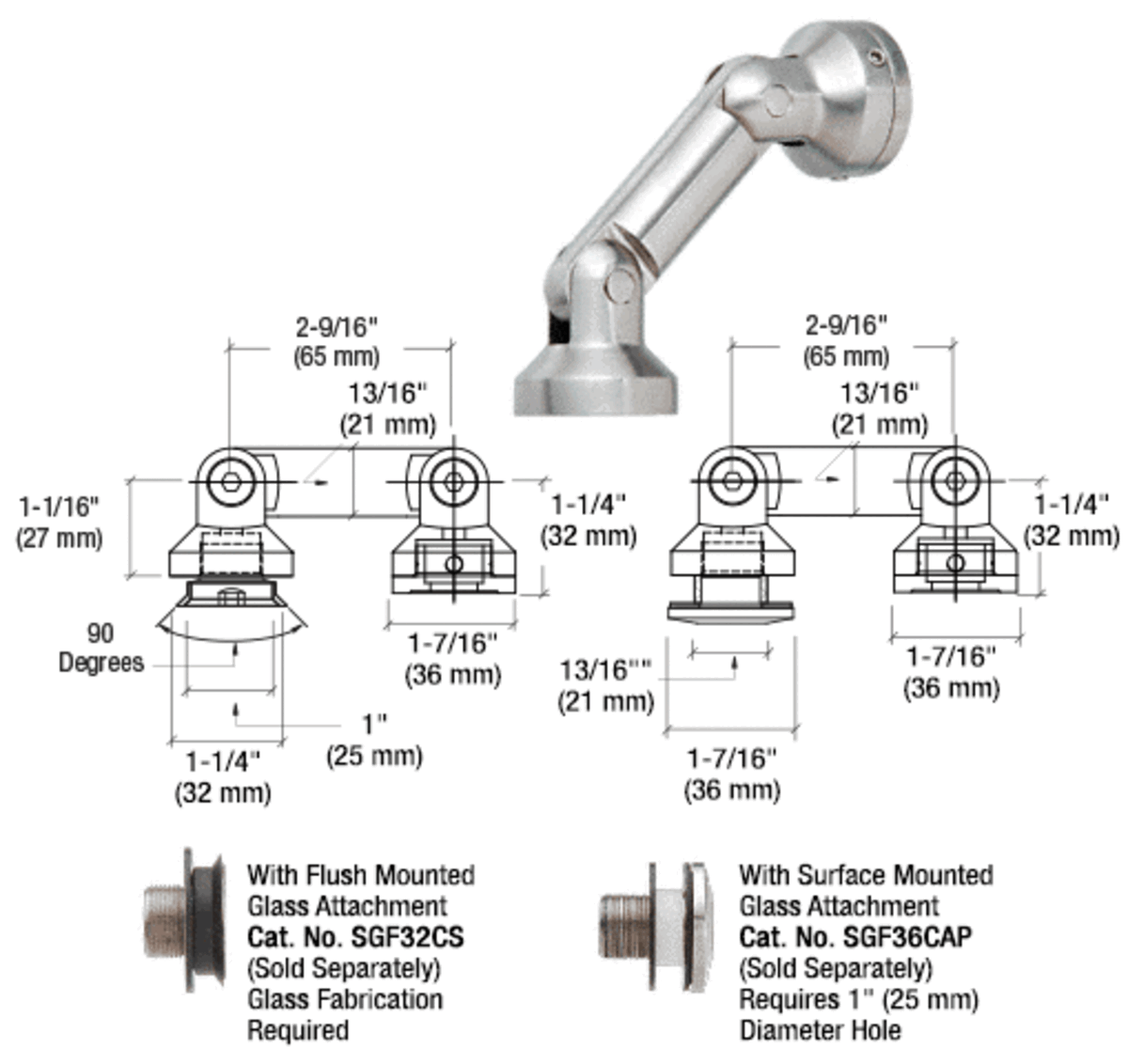

316 Brushed Stainless Dual Pivot Glass-to-Wall/Floor Swivel Fitting

• Available in Six Configurations for Either Surface or Flush Glass Attachments (Sold Separately)
• Alloy 316 Brushed Stainless Finish
• For 3/8" to 1/2" (10 to 12 mm) Glass

Stainless Steel Advisory:

Resources

• Architectural Drawing sgf61bgw.dwg
• CRL Stainless Steel Disclaimer
• CRL Swivel Fittings - Typical Applications
• Mounting Options 40sc 41sc 42sc 43sc 44sc.pdf
• SGF61BGW Detailed CAD Drawings.dwg
• SGF61BGW Detailed CAD Drawings.pdf
