CRL SH3648X0A Satin Anodized Sharyn 36"x48" XO Frameless Pass-Thru

C.R. Laurence SH3648X0A Satin Anodized Sharyn 36" x 48" XO Frameless Pass-Thru presents a contemporary twist on traditional pass-thru windows. Its frameless design eliminates the bulky appearance of conventional models, offering a sleek, modern aesthetic. The window features "No Hole" top hung clamp-on roller assemblies, allowing for height adjustments of approximately 3/16" (5 mm) to accommodate various field conditions. Constructed with a double track header that discreetly conceals roller assemblies, this pass-thru eliminates the need for unsightly valance covers. The window is designed for versatility with an XO clerkside configuration, comprising a fixed panel and a sliding panel. Available in three stunning finishes-Brite Anodized, Satin Anodized, and Dark Bronze-it can seamlessly blend into any interior design. Additionally, the stock model includes essential components such as 1/4" (6 mm) clear tempered glass, roller assemblies, bottom guides, and a push button lock. Rubber bumpers are also included to ensure a soft closing action. With dimensions of 36" W x 48" H and the option for custom windows, the C.R. Laurence Sharyn Frameless Pass-Thru Window is an ideal solution for enhancing service areas while maintaining a stylish look.

Satin Anodized Sharyn 36" x 48" XO Frameless Pass-Thru

• Modern "Frameless" Appearance as Opposed to Traditional Framed Pass-Thru Windows
• No-Hole Top Hung Clamp-On Roller Assemblies Allow Height Adjustability
• Double Track Header has Side Walls that Hide Roller Assemblies
• Optional Fixed Lite Header Insert
• Available in Brite Anodized, Satin Anodized, and Dark Bronze Finishes
• Sized to Fit Opening 36" W x 48" H

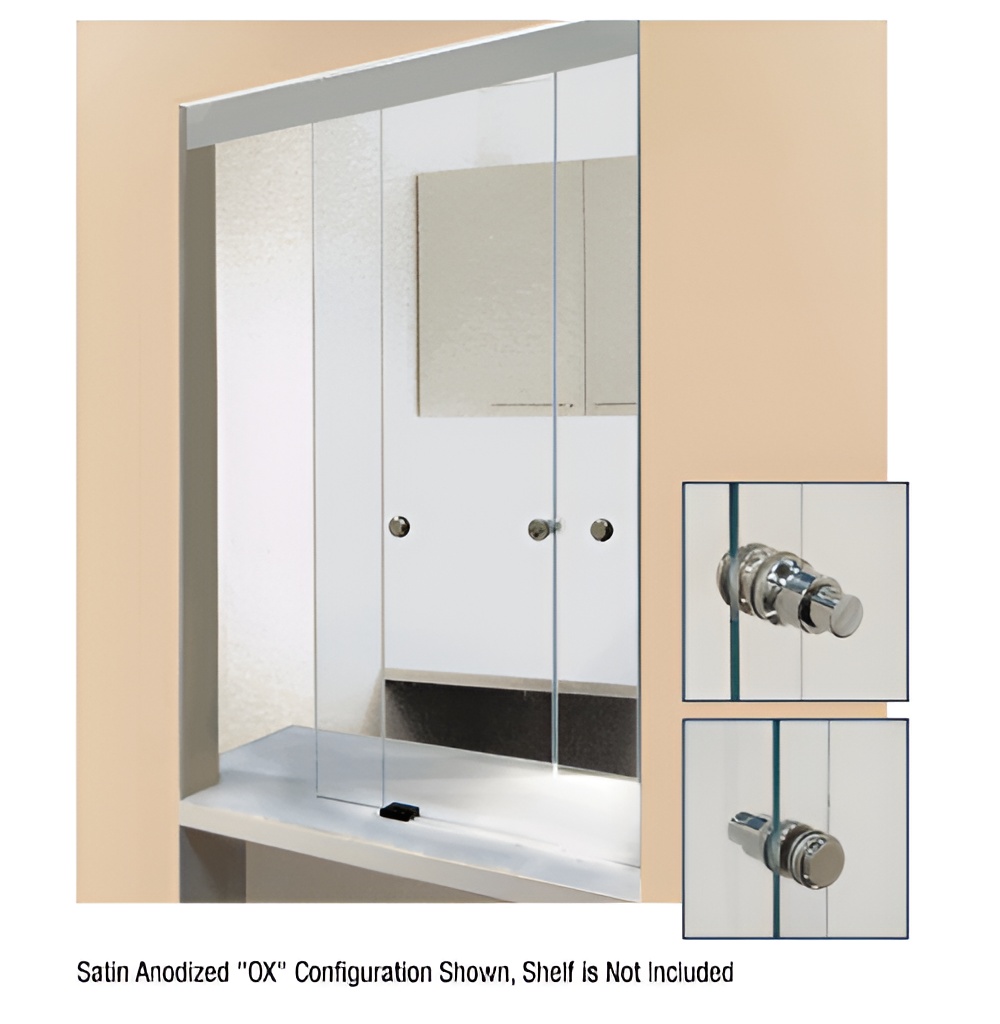

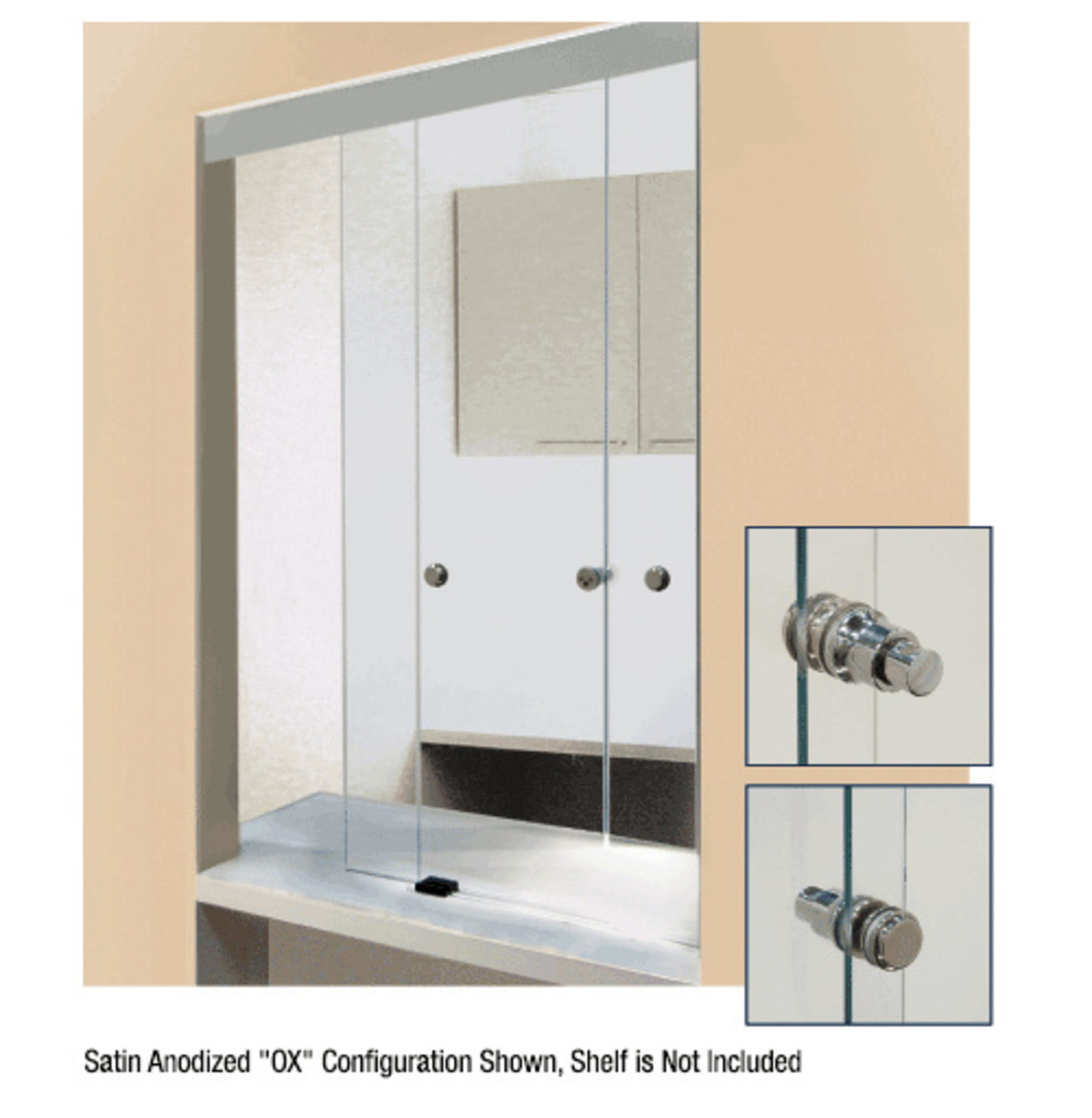

• XO Clerkside (O= Fixed Panel, X=Sliding Panel)
• View: Clerk Side View

The CRL Sharyn Frameless Pass-Thru Window will bring a modern appearance to what has been a traditional looking world of pass-thru windows. The "No Hole" Clamp-On Assemblies match the Header finishes, and allow height adjustment of approximately 3/16" (5 mm) that may be required due to field conditions. The Double Track Header has side walls that discreetly hide the Roller Assemblies, thus eliminating the need for unsightly valance covers. The Sharyn "Frameless" Pass-Thru Window is offered in three different two panel configurations of sliding and fixed panels to accommodate most any service condition. An optional Fixed Lite Header Insert is for the fixed side panel.A Thru-Glass Mounted Keyed Lock or Push Button Lock can be ordered separately for Custom Windows. The Push Button Lock is included on the stock window. Rubber Bumpers are included in each kit to assure soft closing of the window. 36" x 48" (.914m x 1.22 m) 1/4" (6 mm) pre-glazed stock models are available when a quick solution is required to complete your job, or "Quick-Fab" Custom Windows are also available. Custom windows are available with 1/4" (6 mm) clear tempered glass, or unglazed.

Resources

• Sharyn 3-Part Spec
• Sharyn Model Frameless Glass Pass-Thru Window Installation Instructions
• Sharyn Pass-Thru Windows - SH3648 3 Part-Spec
• Sharyn X0 0X CAD Drawings.pdf
