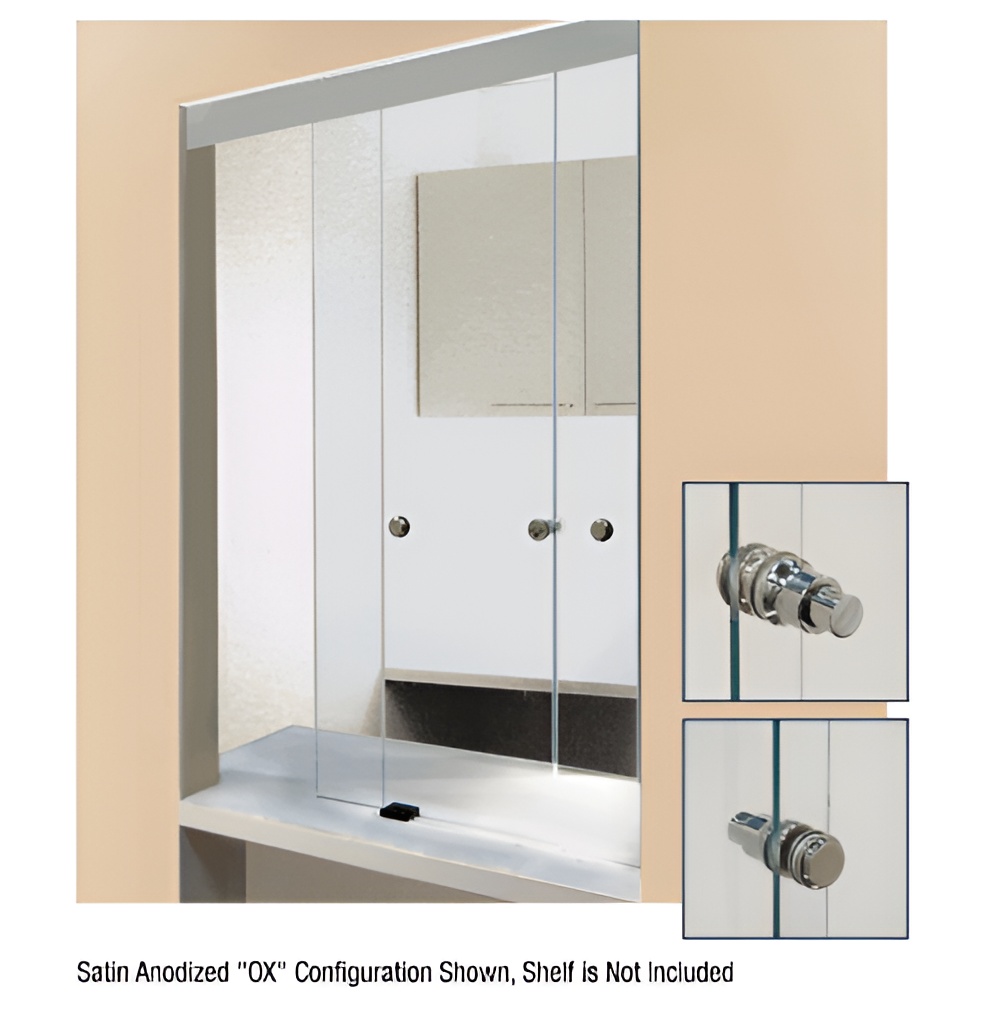

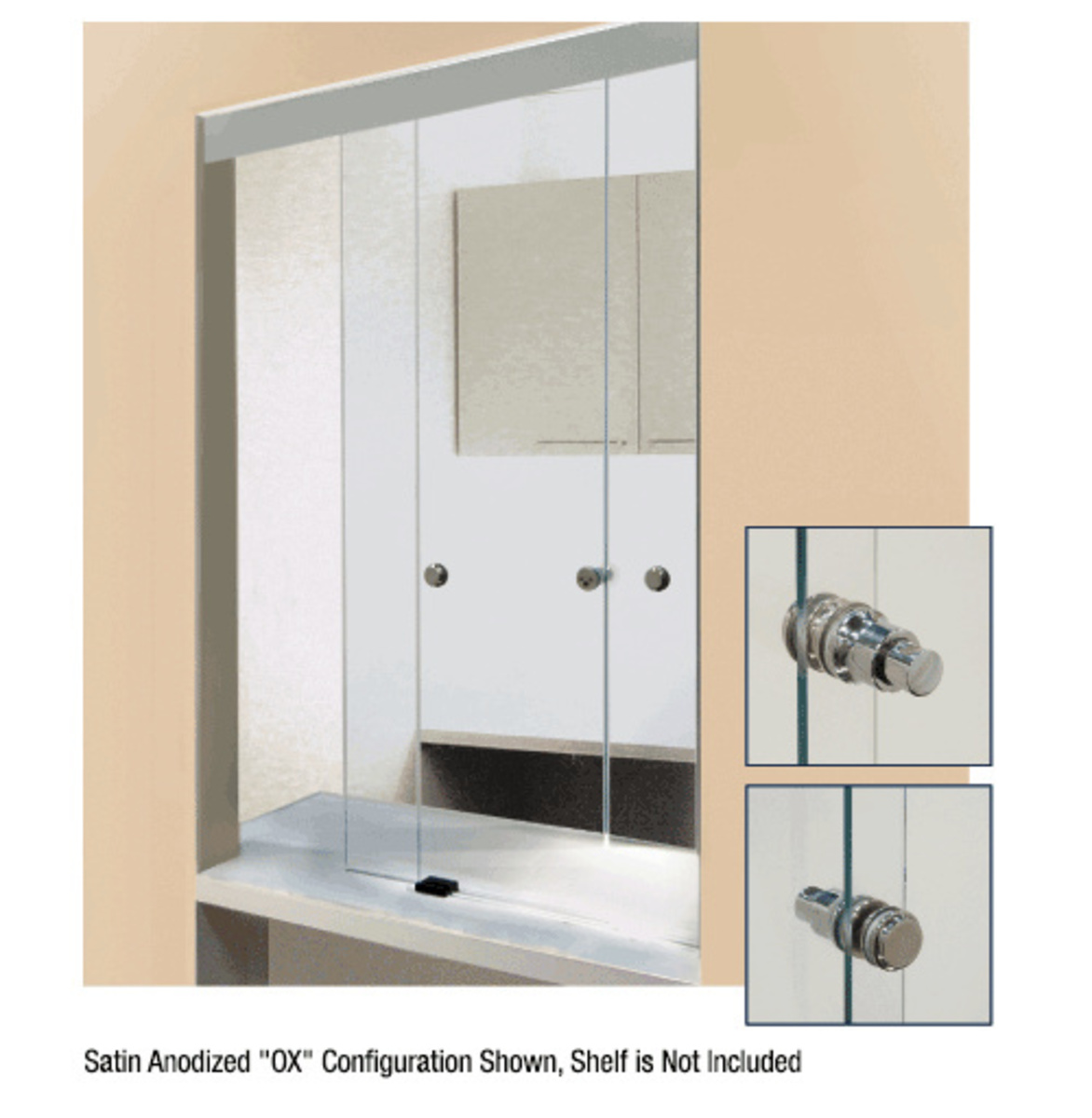

CRL SH3648X0BA Brite Anodized Sharyn 36"x48" XO Frameless Pass-Thru

C.R. Laurence SH3648X0BA Brite Anodized Sharyn 36" x 48" XO Frameless Pass-Thru Window redefines the traditional pass-thru aesthetic with its modern frameless design. This innovative solution features no-hole top hung clamp-on roller assemblies that allow for height adjustments of approximately 3/16" (5 mm), accommodating various field conditions seamlessly. The double track header includes side walls that discreetly conceal the roller assemblies, eliminating the need for unsightly valance covers. Versatile in application, the Sharyn Pass-Thru Window is available in three configurations of sliding and fixed panels, ensuring optimal service for any setting. An optional fixed lite header insert enhances functionality, while the included push button lock ensures security. Each window comes pre-glazed with 1/4" (6 mm) clear tempered glass, providing a quick and efficient solution for your installation needs. Constructed from durable aluminum and offered in a stunning Brite Anodized finish, this window measures 36" W x 48" H (914.4 mm x 1219.2 mm), making it suitable for interior use. The inclusion of rubber bumpers guarantees a soft close, enhancing user experience. With a focus on both style and practicality, the C.R. Laurence Sharyn Window is an excellent choice for modern spaces.

Brite Anodized Sharyn 36" x 48" XO Frameless Pass-Thru

• Modern "Frameless" Appearance as Opposed to Traditional Framed Pass-Thru Windows
• No-Hole Top Hung Clamp-On Roller Assemblies Allow Height Adjustability
• Double Track Header has Side Walls that Hide Roller Assemblies
• Optional Fixed Lite Header Insert
• Available in Brite Anodized, Satin Anodized, and Dark Bronze Finishes
• Sized to Fit Opening 36" W x 48" H
• XO Clerkside (O= Fixed Panel, X=Sliding Panel)
• View: Clerk Side View

The CRL Sharyn Frameless Pass-Thru Window will bring a modern appearance to what has been a traditional looking world of pass-thru windows. The "No Hole" Clamp-On Assemblies match the Header finishes, and allow height adjustment of approximately 3/16" (5 mm) that may be required due to field conditions. The Double Track Header has side walls that discreetly hide the Roller Assemblies, thus eliminating the need for unsightly valance covers. The Sharyn "Frameless" Pass-Thru Window is offered in three different two panel configurations of sliding and fixed panels to accommodate most any service condition. An optional Fixed Lite Header Insert is for the fixed side panel.A Thru-Glass Mounted Keyed Lock or Push Button Lock can be ordered separately for Custom Windows. The Push Button Lock is included on the stock window. Rubber Bumpers are included in each kit to assure soft closing of the window. 36" x 48" (.914m x 1.22 m) 1/4" (6 mm) pre-glazed stock models are available when a quick solution is required to complete your job, or "Quick-Fab" Custom Windows are also available. Custom windows are available with 1/4" (6 mm) clear tempered glass, or unglazed.

Resources

• Sharyn 3-Part Spec
• Sharyn Model Frameless Glass Pass-Thru Window Installation Instructions
• Sharyn Pass-Thru Windows - SH3648 3 Part-Spec
• Sharyn X0 0X CAD Drawings.pdf
