CRL SH48480XA Satin Anodized Sharyn 48" x 48" Frameless Pass-Thru

CRL SH48480XA Satin Anodized Sharyn 48" x 48" Frameless Pass-Thru

C.R. Laurence SH48480XA Satin Anodized Sharyn 48" x 48" OX Frameless Pass-Thru offers a sleek, modern aesthetic that elevates the traditional pass-thru window. Designed with a frameless appearance, it enhances any interior space while providing functionality. The innovative "No Hole" top hung clamp-on roller assemblies allow for height adjustments of approximately 3/16" (5 mm), accommodating various field conditions without compromising style. The double track header features side walls that discreetly conceal the roller assemblies, eliminating the need for unsightly valance covers. This window is available in Brite Anodized, Satin Anodized, and Dark Bronze finishes, ensuring it fits seamlessly into any design scheme. Its two-panel configurations provide flexibility, making it suitable for various service conditions, while the optional fixed lite header insert enhances the options for fixed side panels. Included with the stock model are essential components: a double track header, 1/4" (6 mm) clear tempered glass, top hung roller assemblies, bottom guides, a push button lock, and rubber bumpers for smooth operation. With dimensions of 48" x 48" (1.22 x 1.22 m), the C.R. Laurence Sharyn Frameless Pass-Thru Window is the perfect solution for contemporary spaces, delivering both elegance and efficiency.

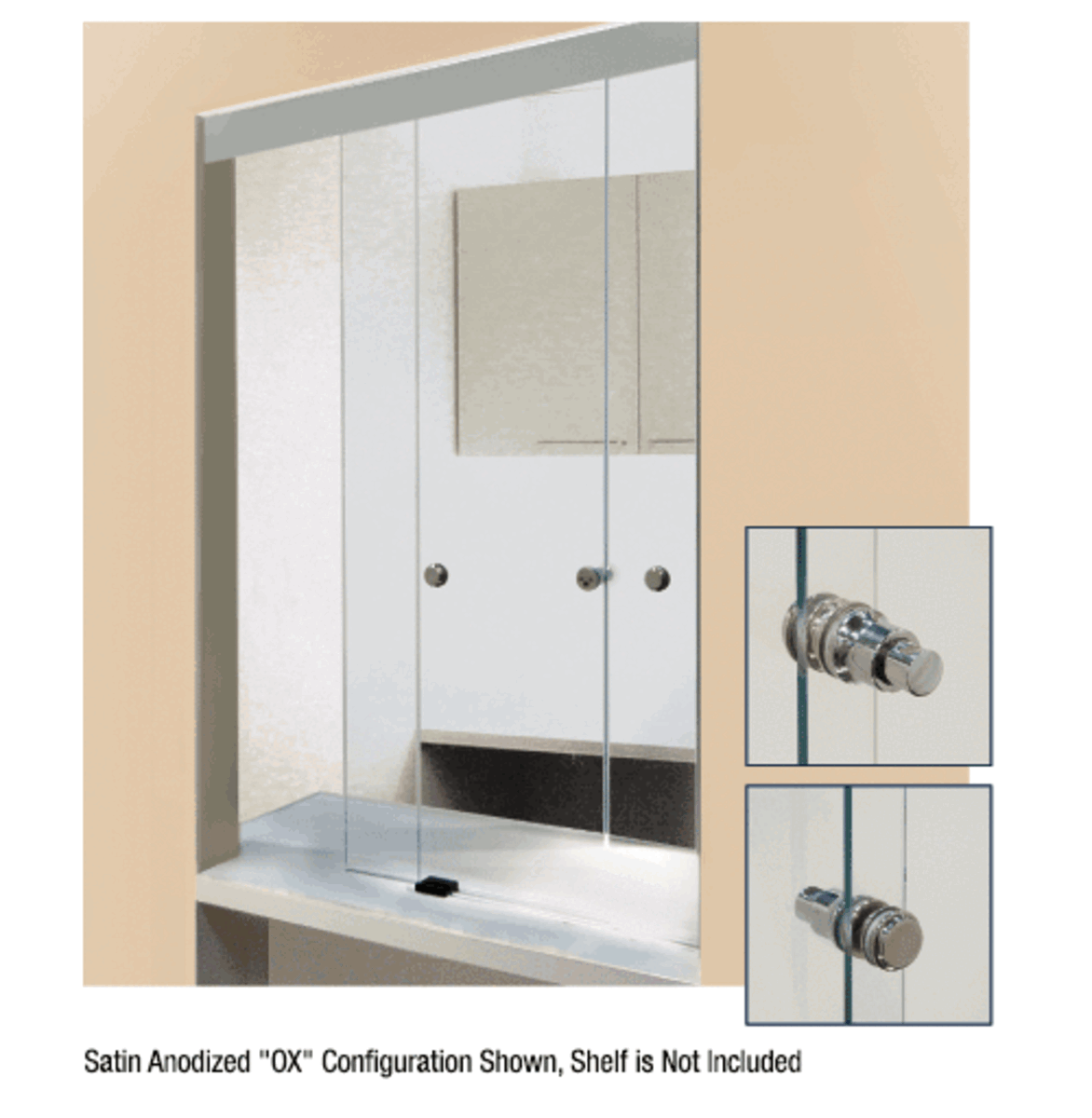

Satin Anodized Sharyn 48" x 48" OX Frameless Pass-Thru

• Modern "Frameless" Appearance as Opposed to Traditional Framed Pass-Thru Windows
• No-Hole Top Hung Clamp-On Roller Assemblies Allow Height Adjustability
• Double Track Header has Side Walls that Hide Roller Assemblies
• Optional Fixed Lite Header Insert
• Available in Brite Anodized, Satin Anodized, and Dark Bronze Finishes

The CRL Sharyn Frameless Pass-Thru Window will bring a modern appearance to what has been a traditional looking world of pass-thru windows. The "No Hole" Clamp-On Assemblies match the Header finishes, and allow height adjustment of approximately 3/16" (5 mm) that may be required due to field conditions. The Double Track Header has side walls that discreetly hide the Roller Assemblies, thus eliminating the need for unsightly valance covers. The Sharyn "Frameless" Pass-Thru Window is offered in three different two panel configurations of sliding and fixed panels to accommodate most any service condition. An optional Fixed Lite Header Insert is for the fixed side panel.A Thru-Glass Mounted Keyed Lock or Push Button Lock can be ordered separately for Custom Windows. The Push Button Lock is included on the stock window. Rubber Bumpers are included in each kit to assure soft closing of the window. 48" x 48" (1.22 x 1.22 m) 1/4" (6 mm) pre-glazed stock models are available when a quick solution is required to complete your job, or "Quick-Fab" Custom Windows are also available. Custom windows are available with 1/4" (6 mm) clear tempered glass, or unglazed.


STOCK WINDOWS INCLUDE: One Double Track Header, 1/4" (6 mm) Clear Tempered Glass, Two Top Hung Roller Assemblies per Sliding Panel, Three Bottom Guides, One Push Button Lock with Two Strikes, and Eight Bumpers. NOTE: Fixed Lite Models Include One Fixed Lite Header Insert and Bottom Channel.

Resources

• Sharyn 3-Part Spec
• Sharyn Frameless Pass-Thru System CAD Drawings.dwg
• Sharyn Frameless Pass-Thru System CAD Drawings.pdf
• Sharyn Model Frameless Glass Pass-Thru Window Installation Instructions
• Sharyn Pass-Thru Windows - SH4848 SHCXX SHC0X SHCX0 3 Part-Spec
