CRL SM38BS Brushed Stainless Steel Slot Mount Standoff for 3/8" PanelsC.R. Laurence SM38BS Brushed Stainless Slot Mount Standoff for 3/8" Panels offers a versatile solution for mounting glass and other materials without the need for drilling. This standoff is specifically designed for 3/8" (10 mm) thick panels, making it ideal for installation of partition panels, shelving, or signage. With a diameter of 1-1/4" (32 mm), it combines both strength and aesthetic appeal, available in a sleek brushed stainless steel finish. Installation is straightforward, with nylon tip set screws that secure panels firmly in place while protecting the integrity of the material. The maximum recommended shelf projection from the wall is 5" (127 mm) when anchored to a wall stud, ensuring stability and reliability. C.R. Laurence's slot mount standoffs can be used independently or in conjunction with standard standoff bases, accommodating slot widths of 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12 mm). Each assembly includes one standoff, a nylon tip set screw, and a clear 'L' gasket, making it a comprehensive solution for your architectural needs. Although resistant to corrosion, periodic maintenance is recommended to preserve the stainless steel finish. Elevate your projects with the durability and elegance of C.R. Laurence's SM38BS standoff.
Brushed Stainless Slot Mount Standoff for 3/8" Panels
- Fits 3/8" (10 mm) Thick Material
- No Drilling Required for Installation
- Available in Several Architectural Finishes
- Use Monolithic Tempered Glass

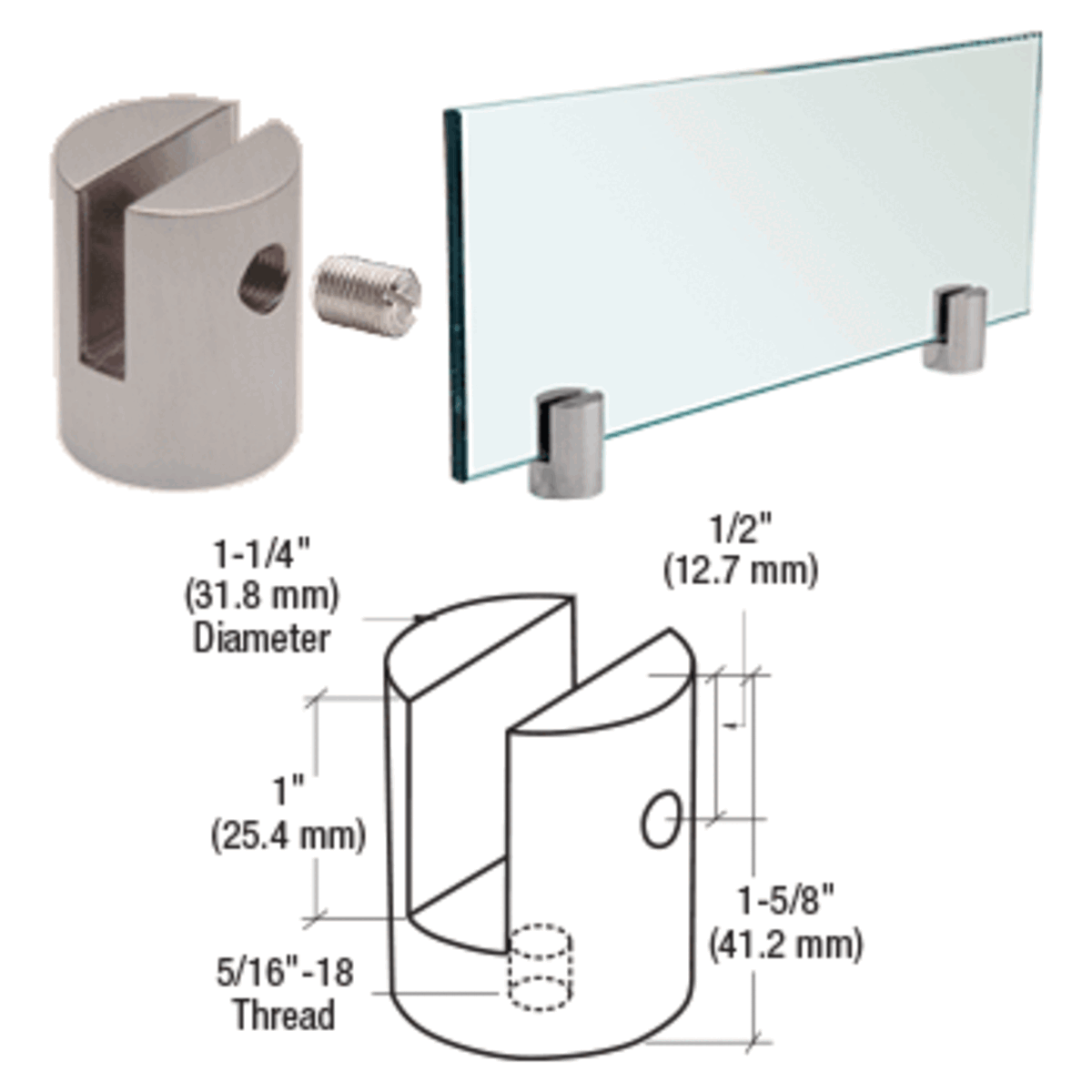

CRL's Slot Mount Standoffs are designed to be mounted either vertically or horizontally, and can be used for installing partition panels, shelving or signage without drilling holes in the material. Nylon tip set screws hold panels firmly in place without damaging panel material or glass. This 1-1/4" (32 mm) diameter slot mount standoff is available to hold 3/8" (10 mm) thick material. Maximum recommended shelf projection from the wall is 5" (127 mm) when standoff is anchored to the wall stud.
Slot Mount Standoff's can be used either independently or with
Standard Standoff Bases, and they are available in slot widths of 1/4" (6 mm), 3/8" (10 mm) and 1/2" (12 mm).
Slot Mount Standoff Assemblies Consist of:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear 'L' Gasket
NOTE: Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (31.8 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Height: 1-5/8 in. (41.3 mm)
Material: Stainless Steel
Shipping Limitations: None
Resources
