CRL SP25PS12S Polished Stainless 1" Tall Slender Door Rail, 35-3/4" without LockC.R. Laurence SP25PS12S Polished Stainless 1" Tall Slender Profile Door Rail Without Lock - 35-3/4" is designed specifically for interior use with 1/2" (12 mm) tempered glass, offering a sleek and modern look that enhances any space. This slender profile door rail measures just 1" (25 mm) wide, making it an ideal choice for minimalist designs. Available in brushed or polished stainless steel finishes, it provides both aesthetic appeal and durability. The SP25PS12S door rail is prepped to accommodate various Slender Profile Rail Pivot Inserts, allowing for flexibility in installation with overhead or floor-mounted door closers. End caps are included with the rail, ensuring a polished finish. Additionally, this rail can be customized with vertical stiles to suit specific project requirements. Constructed from aluminum and clad in alloy 304 stainless steel, this product is built to withstand the rigors of daily use while maintaining its elegant appearance. Installation is straightforward, with included adjustment wrenches to address any unforeseen challenges. For added functionality, the rail can be fitted with the CRL 7150 Series Cam Lock for display case applications, allowing for secure and stylish access. Note that periodic maintenance is recommended to preserve its factory finish.

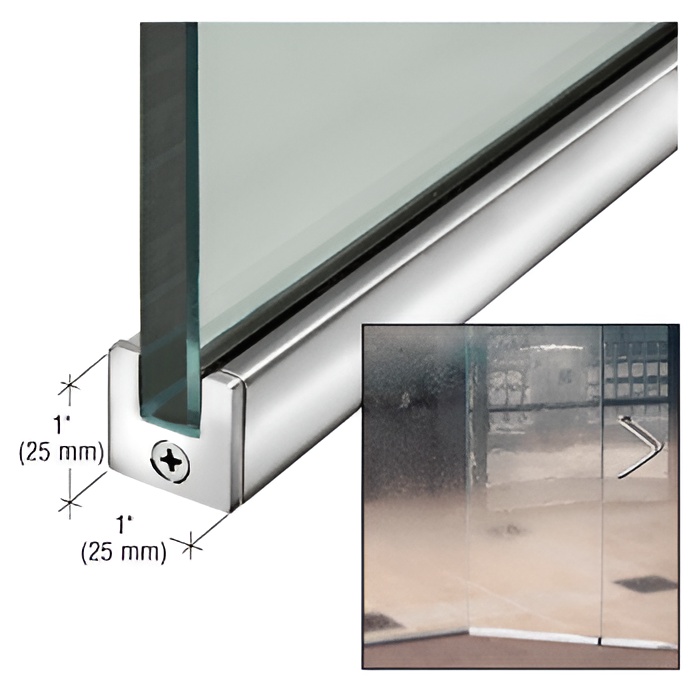

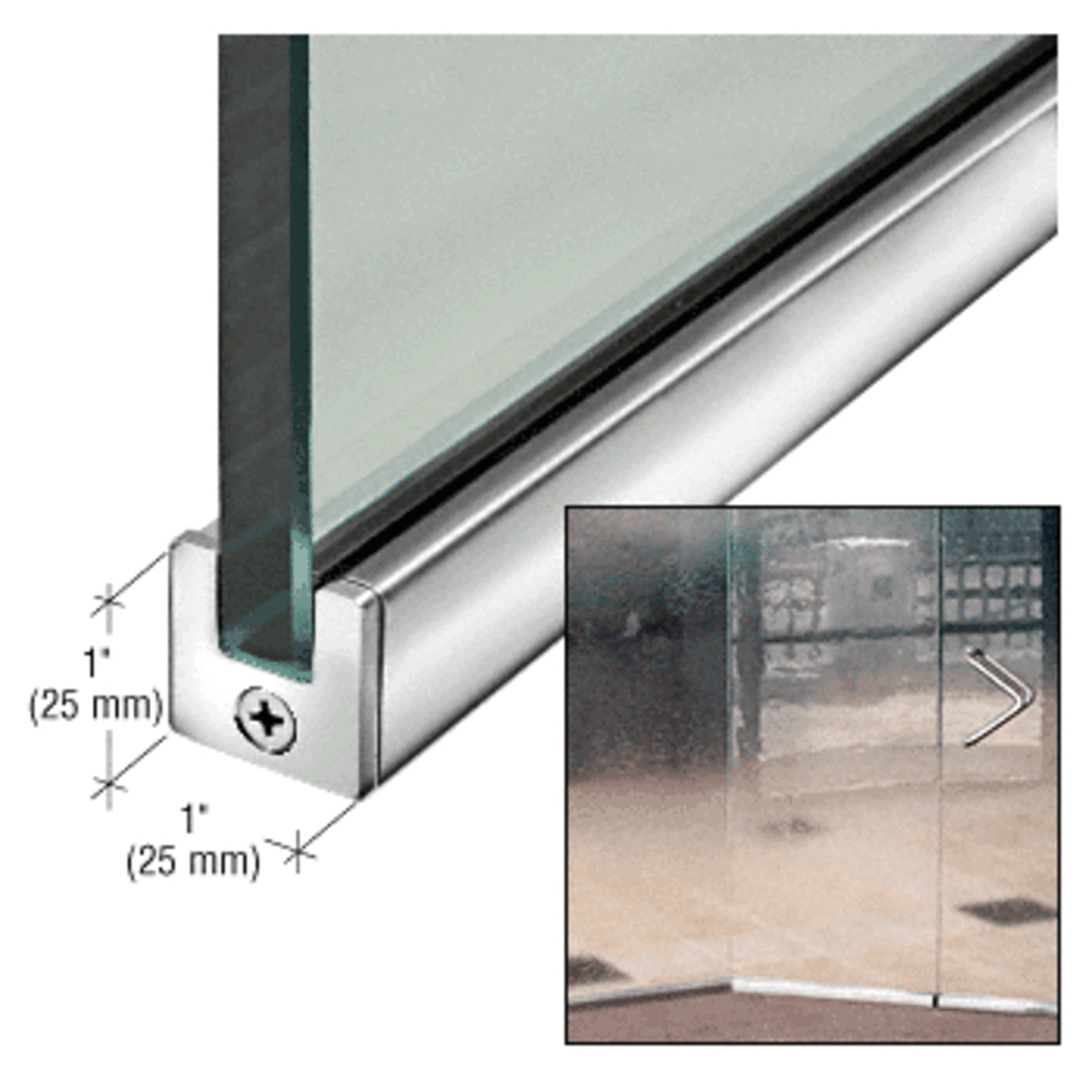

Polished Stainless 1" Tall Slender Profile Door Rail Without Lock - 35-3/4"
- Designed for Interior Use Only
- For 1/2" (12 mm) Tempered Glass
- Available in Three Heights with or without a Lock
- Dry Glaze Slender Profile Door Rails are Only 1" (25 mm) Wide
- Brushed or Polished Stainless Steel Finishes
- Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order
- Use Monolithic Tempered Glass
CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). They are all prepped to receive any of the three Slender Profile Rail Pivot Inserts, ordered separately, that allow you to use overhead door closers, floor mounted door closers, or pivots. All Slender Profile Rails can be fitted with our 7150 Series Cam Lock for use in display case applications. Other locking options may be available on special order.
All Slender Profile Rails are designed for field installation and are easily adjusted to compensate for unexpected installation issues. Rails feature aluminum construction, clad in alloy 304 stainless steel for a durable, lasting finish.
ORDERING INFORMATION:
• Compatible Pivots: CRL860BS Top Pivot 1NT402 Bottom Pivot.
• End Caps are included with all Slender Profile Door Rails.
• Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
• When 7150 Series Cam Lock is required, handing of the door must be specified.
• Slender Profile Rails are prepped to receive any of the Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation Instructions and Adjustment Wrenches are included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Height: 1 in. (25 mm)
Profile: Slender
Shipping Limitations: None
Width: 2-1/2 in. (64 mm)
