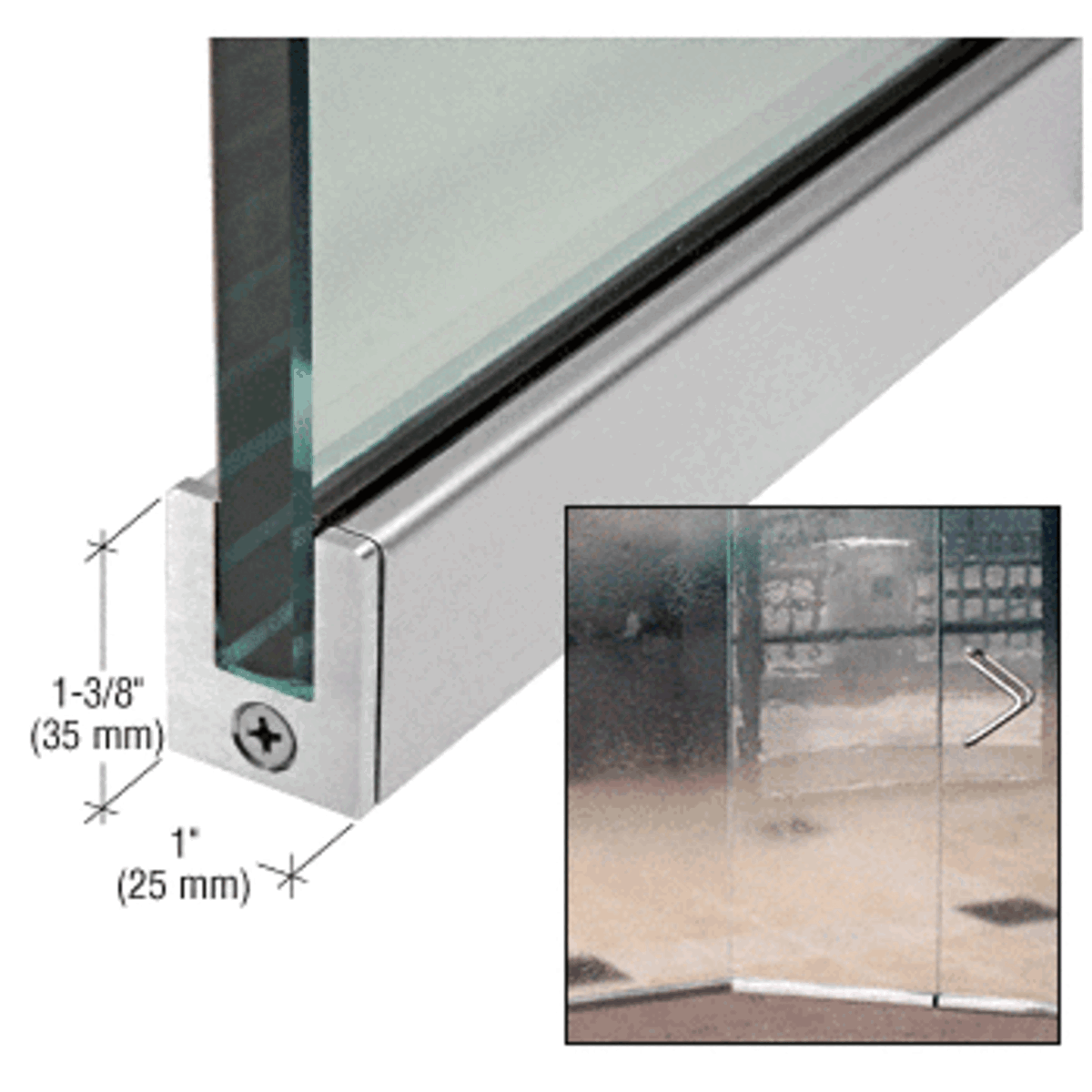

CRL SP35BS12S Brushed Stainless 1-3/8" Slender Door Rail, 35-3/4" without LockC.R. Laurence SP35BS12S Brushed Stainless 1-3/8" Tall Slender Profile Door Rail Without Lock - 35-3/4" combines elegance and functionality for modern interior spaces. Designed specifically for 1/2" (12 mm) tempered glass, this door rail is perfect for creating sleek, unobtrusive entrances. Measuring only 1" (25 mm) wide, the slender profile enhances any interior design without overwhelming the space. Constructed from durable aluminum and clad in alloy 304 stainless steel, the SP35BS12S promises longevity and resistance to wear. Its brushed finish not only adds a contemporary aesthetic but also simplifies maintenance. This versatile door rail is available in three heights and can accommodate various locking mechanisms, including the optional 7150 Series Cam Lock for display case applications. The rail is engineered for straightforward field installation, with included installation instructions and adjustment wrenches to tackle potential installation challenges. End caps come standard, ensuring a polished appearance. Whether you’re a building professional or a discerning homeowner, the C.R. Laurence SP35BS12S is an ideal choice for creating functional yet stylish glass door systems in any interior setting.
Brushed Stainless 1-3/8" Tall Slender Profile Door Rail Without Lock - 35-3/4"
- For 1/2" (12 mm) Tempered Glass
- Designed for Interior Use Only
- Available in Three Heights with or without a Lock
- Dry Glaze Slender Profile Door Rails are Only 1" (25 mm) Wide
- Brushed or Polished Stainless Steel Finishes
- Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order
- Use Monolithic Tempered Glass
CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). They are all prepped to receive any of the three Slender Profile Rail Pivot Inserts, ordered separately, that allow you to use overhead door closers, floor mounted door closers, or pivots. All Slender Profile Rails can be fitted with our 7150 Series Cam Lock for use in display case applications. Other locking options may be available on special order.
All Slender Profile Rails are designed for field installation and are easily adjusted to compensate for unexpected installation issues. Rails feature aluminum construction, clad in alloy 304 stainless steel for a durable, lasting finish.
ORDERING INFORMATION:
• Compatible Pivots: CRL9040WBP Top Pivot 1NT402 Bottom Pivot.
• End Caps are included with all Slender Profile Door Rails.
• Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
• When 7150 Series Cam Lock is required, handing of the door must be specified.
• Slender Profile Rails are prepped to receive any of the Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation Instructions and Adjustment Wrenches are included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Height: 1-3/8 in. (35 mm)
Includes Lock: No
Length: 35-3/4 in. (908 mm)
Profile: Slender
Shipping Limitations: None
Width: 2-1/2 in. (64 mm)
