CRL SP35BS12SL Brushed Stainless 1-3/8" LH Tall Door Rails, 35-3/4" Standard Length

CRL SP35BS12SL Brushed Stainless 1-3/8" LH Tall Door Rails, 35-3/4" Standard Length

C.R. Laurence SP35BS12SL Brushed Stainless 1-3/8" LH Tall Slender Profile Door Rails are expertly designed for use with 1/2" (12 mm) monolithic tempered glass, providing a sleek and modern aesthetic for any architectural project. Measuring 35-3/4" (908 mm) in standard length, these door rails are only 1" (25 mm) wide, ensuring a minimalist profile that complements contemporary designs. Available in brushed or polished stainless steel finishes, the SP35BS12SL is both stylish and durable, crafted from aluminum and clad in alloy 304 stainless steel for long-lasting performance. The rails can be ordered in three heights and are prepped to accommodate various Slender Profile Rail Pivot Inserts, allowing for seamless integration of overhead or floor-mounted door closers. Installation is straightforward, as these rails are designed for field adjustment to address any unexpected challenges. Each set includes end caps and installation instructions, ensuring a hassle-free setup. Additionally, the option for a 7150 Series Cam Lock enhances security for display case applications, with further locking options available upon request. Please note that custom lengths cannot be returned, and glass fabrication is necessary for locks. With a maximum width of 42" (1.07 m), the C.R. Laurence Slender Profile Door Rails are an excellent choice for both building professionals and discerning homeowners.

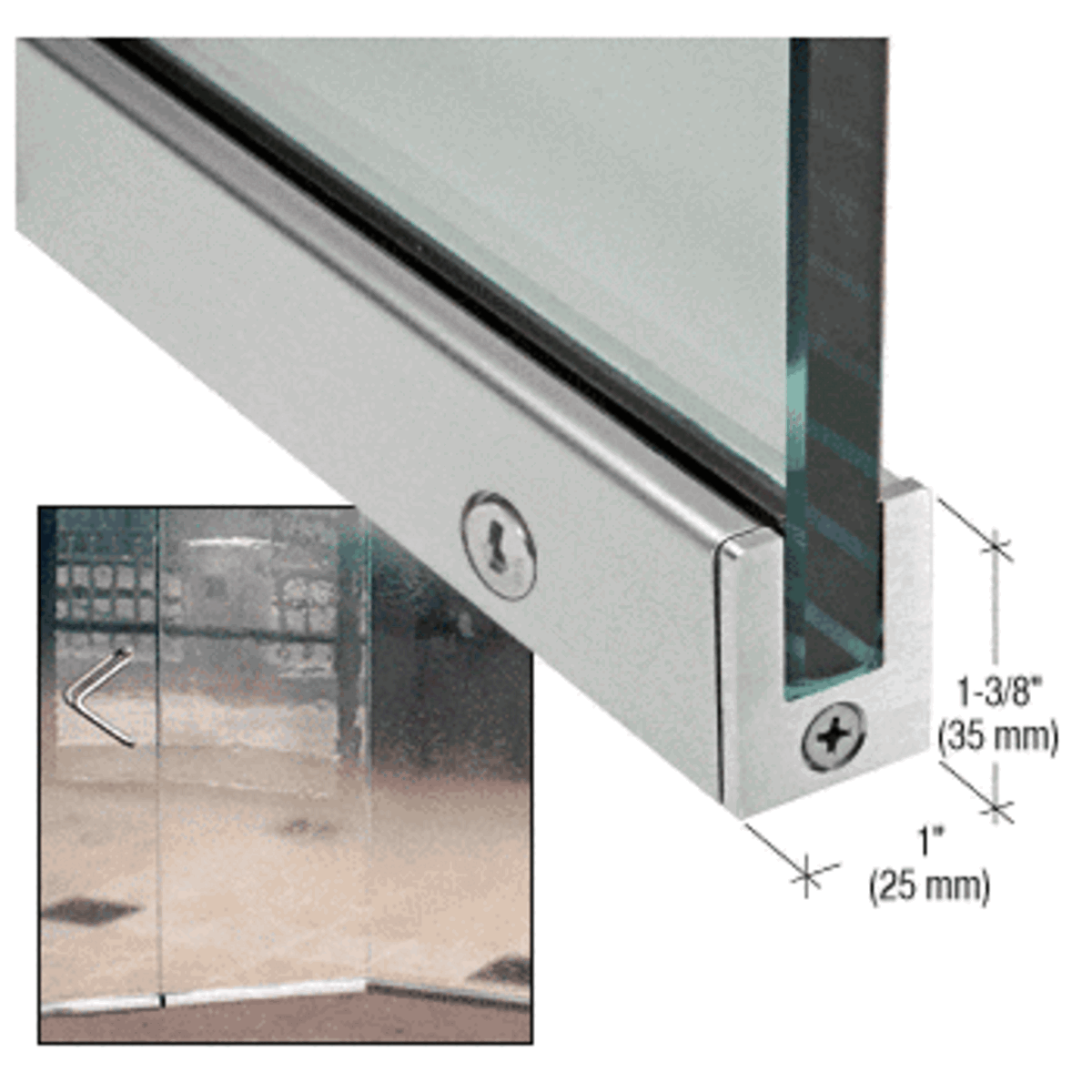

Brushed Stainless 1-3/8" LH Tall Slender Profile Door Rails 35-3/4" (908 mm) Standard Length

• For 1/2" (12 mm) Monolithic Tempered Glass
• Available in Three Heights With or Without a Lock
• Dry Glaze Slender Profile Door Rails are Only 1" (25 mm) Wide
• Brushed or Polished Stainless Steel Finishes
• Custom 1" (25 mm) Slender Profile Vertical Stiles Available on Special Order

CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). They are all prepped to receive any of the three Slender Profile Rail Pivot Inserts, ordered separately, that allow you to use overhead door closers, floor mounted door closers, or pivots. All Slender Profile Rails can be fitted with our 7150 Series Cam Lock for use in display case applications. Other locking options may be available on special order.


All Slender Profile Rails are designed for field installation and are easily adjusted to compensate for unexpected installation issues. Rails feature aluminum construction, clad in alloy 304 stainless steel for a durable, lasting finish.

ORDERING INFORMATION:
• Compatible Pivots: CRL9040WBP Top Pivot 1NT402 Bottom Pivot.
• End Caps are included with all Slender Profile Door Rails.
• Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
• When 7150 Series Cam Lock is required, handing of the door must be specified.
• Slender Profile Rails are prepped to receive any of the Slender Profile Door Rail Pivot Inserts.
• Installation Instructions and Adjustment Wrenches are included.


Product Warning:

Custom Rails are made to your specified size and finish and are not returnable.

Glass fabrication is needed for a lock. Please see the template.

Maximum width for the Slender Profile Door Rail System is 42" (1.07 m).

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Slender Profile Door Rail CAD Drawings.dwg
• Slender Profile Door Rail CAD Drawings.pdf
• Slender Profile Door Rails Installation Instructions
