CRL SPS36CPS Polished Stainless 36" Square Glass Clamp for 180 Post Railing Kit

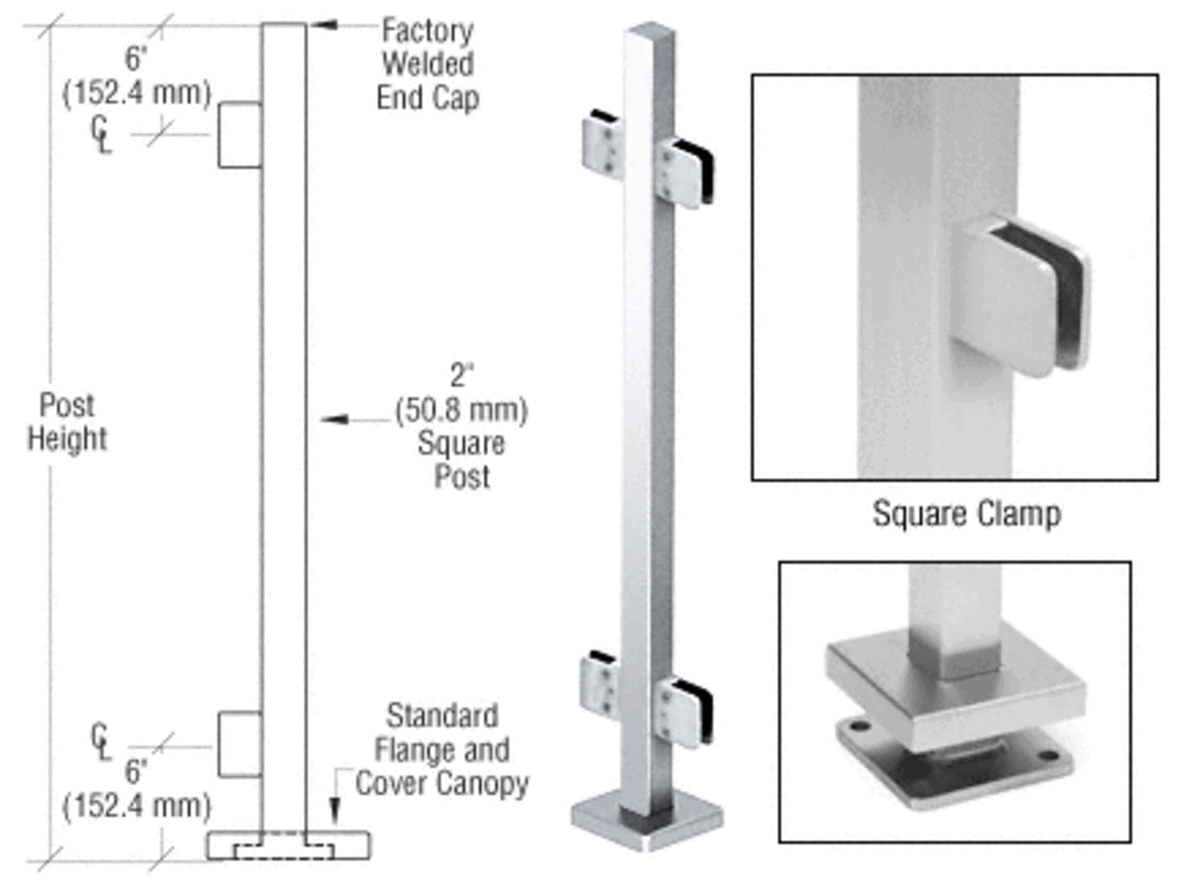

C.R. Laurence SPS36CPS Polished Stainless 36" Steel Square Glass Clamp 180 Degree Center Square Post Railing Kit is a robust solution for both commercial and residential applications. Crafted from durable Schedule 40 2" (51 mm) stainless steel tubing, this railing kit is engineered to accommodate 1/2" (12 mm) tempered glass, ensuring a secure and stylish installation. The kit comes complete with a base plate, base plate cover canopy, welded top cap, and Z-Series glass clamps already attached to the post, allowing for a ready-to-install experience. Available in standard post heights of 36" (914 mm) and 42" (1.07 m), custom post heights can also be requested to meet specific project requirements. With two standard stainless finishes and the option for custom powder paint finishes, this product allows for a personalized touch. The base plate features a length and width of 5 inches (127 mm) and a thickness of 3/8 inch (10 mm), with four mounting holes for easy installation. It’s important to note that this product is not designed for guard rail or hand rail applications. For optimal maintenance, periodic care is recommended to preserve the polished stainless steel finish. Enhance your architectural design with the reliable performance of the C.R. Laurence SPS36CPS.

Polished Stainless 36" Steel Square Glass Clamp 180 Degree Center Square Post Railing Kit

• 2" (51 mm) Square Posts
• Square or Round Z-Series Glass Clamps
• Ready-to-Install for Both Commercial and Residential Applications
• Designed to Accept 1/2" (12 mm) Tempered Glass
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes
• Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• SPS36 SPS42 Glass Fabrication Template.pdf
• Windscreen and Pool Fencing Systems Product Information
