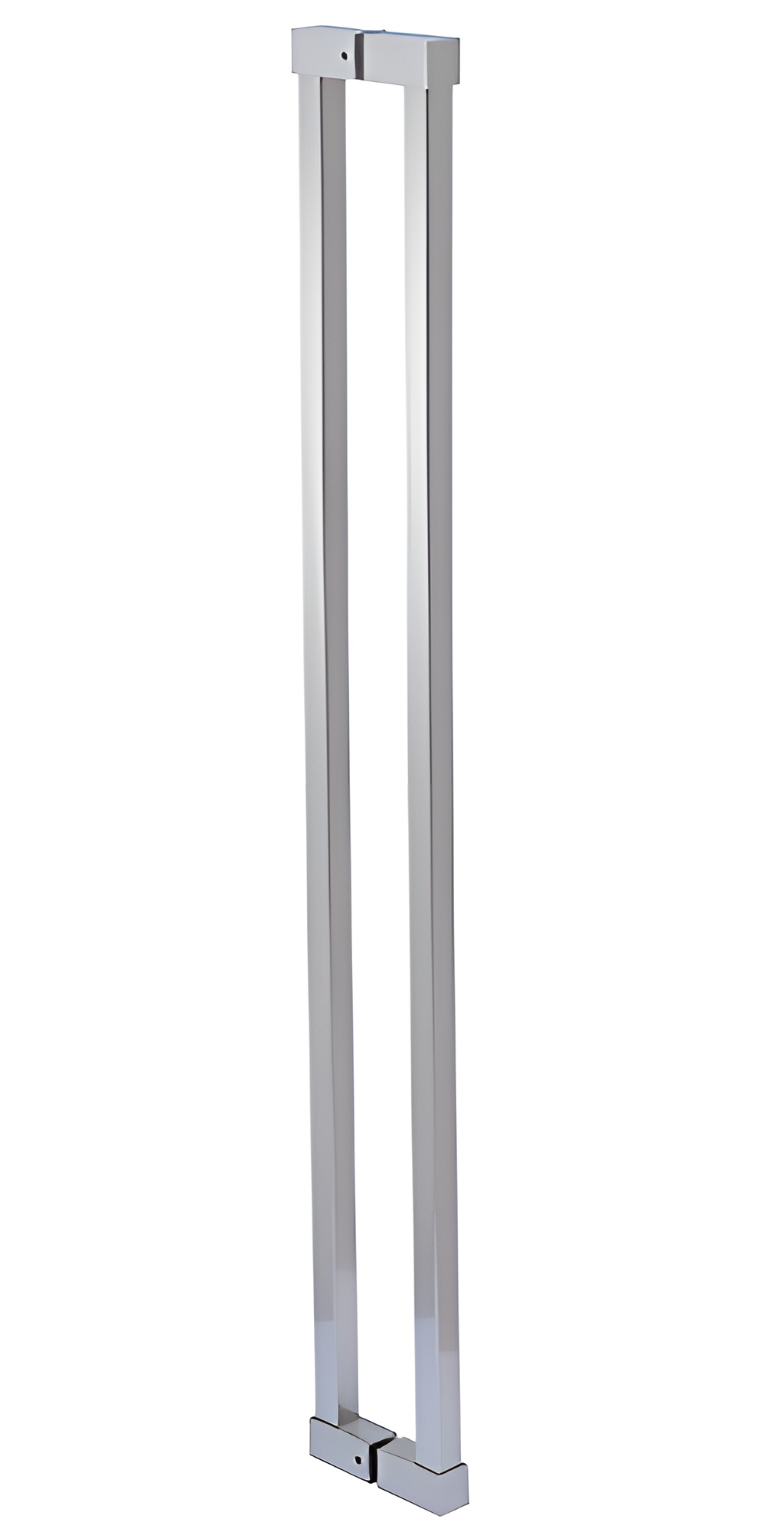

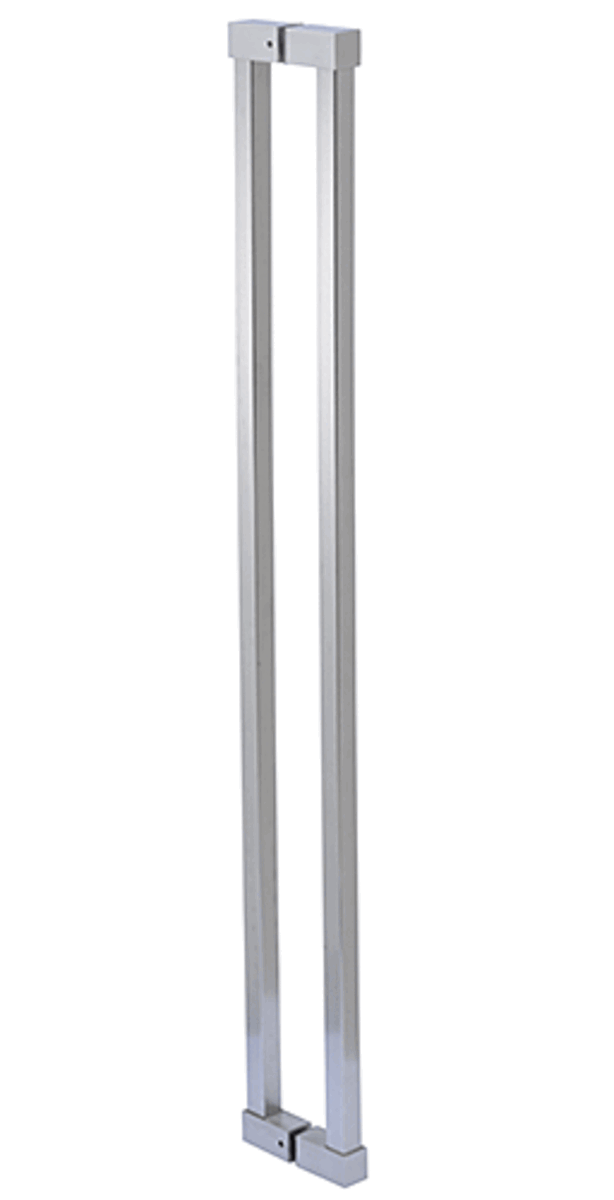

CRL SQC42X42BS Brushed Stainless Square Ladder Pull Handle with Mounting PostsC.R. Laurence SQC42X42BS Brushed Stainless Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts offers a sleek, modern solution for any glass door application. Designed for back-to-back mounting, this pull handle is constructed from durable 1" square stainless steel tubing, ensuring both strength and a polished appearance. With an overall length of 43" (1092 mm), it can be easily cut to meet specific project requirements, allowing for versatile installation options. This pull handle is compatible with monolithic tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) thick, making it ideal for a variety of glass doors. The handle system includes two 5/8" (16 mm) diameter holes for seamless glass mounting, with supplied through-bolts and an 1/8" Allen wrench for easy installation. Available in a brushed stainless steel finish, this handle not only enhances the aesthetic of any entrance but also provides long-lasting performance. Regular maintenance is recommended to preserve its factory finish, as stainless steel is resistant to corrosion but not entirely stain-proof. Elevate your architectural design with the C.R. Laurence Square Ladder Style Pull Handle, a perfect blend of style, functionality, and durability.
Brushed Stainless Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts
- Back-to-Back Handles You Cut to Size, Comes 43" (1092 mm) Overall Length
- Square Mounting Posts
- Use Monolithic Tempered Glass 3/8" to 3/4" (10 to 19 mm)
CRL Square Ladder Style Pull Handle are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" tempered glass. Stock size is 43" overall length and can be cut down per job specifications. The pulls are constructed of 1" square stainless-steel tubing. Available in three standard finishes.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Tempered Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Posts
1" (25 mm) Square Stainless Steel Tubing Handle
43" (1092 mm) Overall Length to be Cut Down per Job Specifications.
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
1 Each: 1/8" Allen Wrench
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 43 in. (1092 mm)
Shipping Limitations: None
