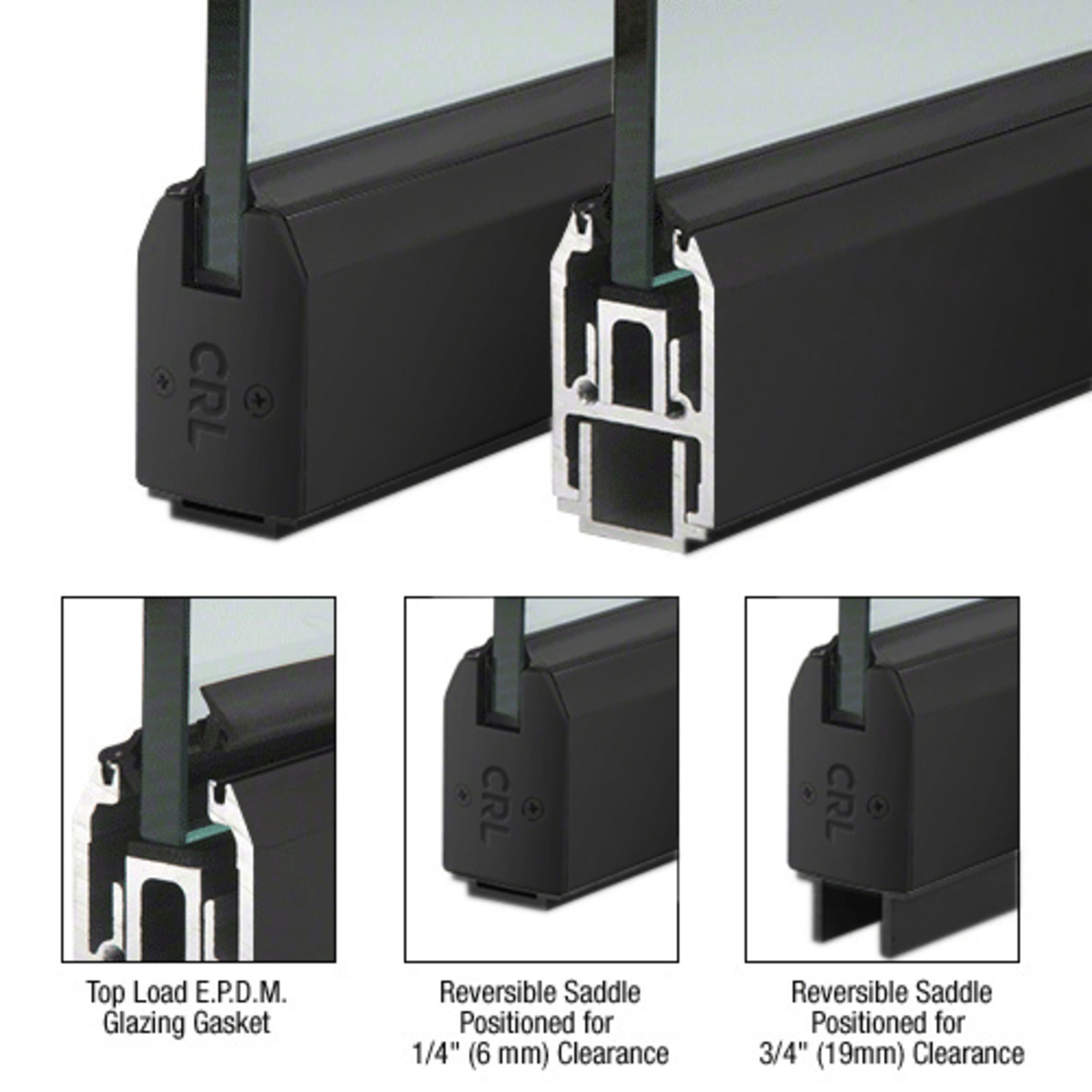

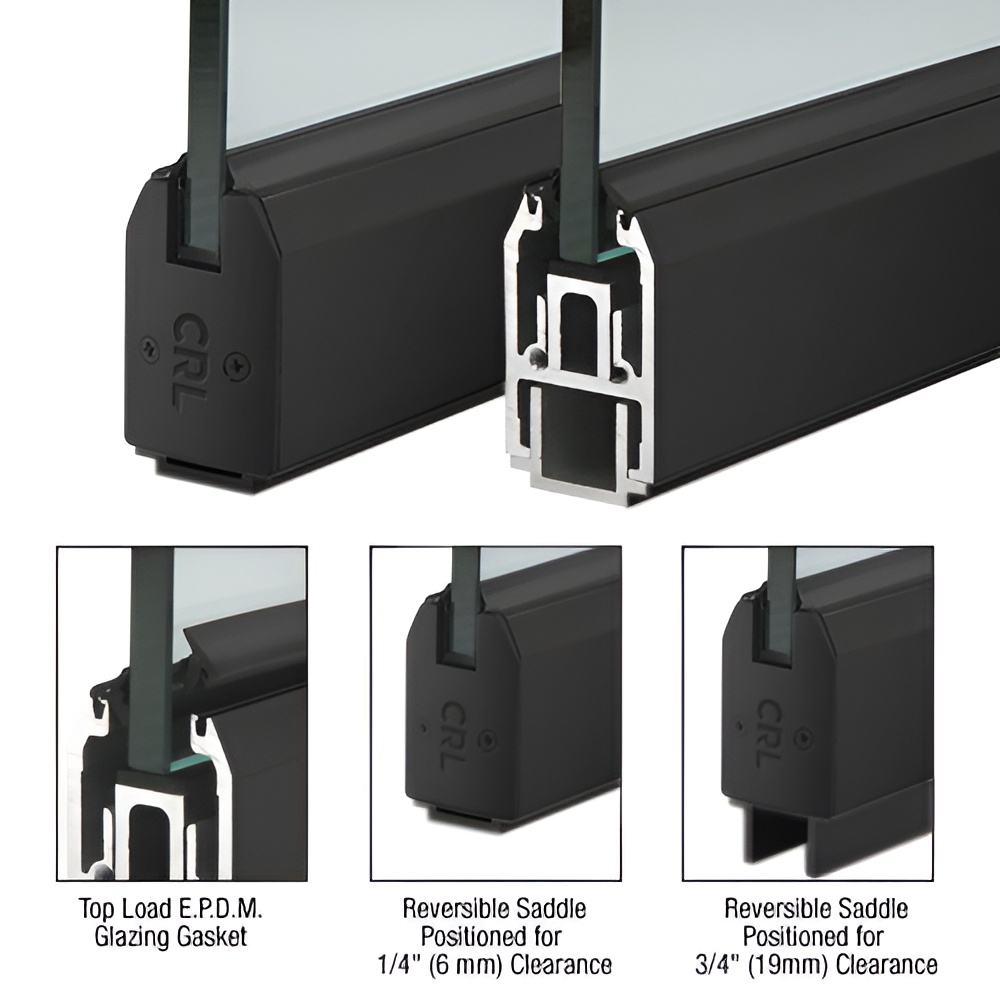

C.R. Laurence SR2TMBL12240 Matte Black 2-5/16" x 240" Length Low Profile Tapered Sidelite Rail With Saddle offers a sleek and modern solution for your architectural needs. Measuring just 2-5/16" (59 mm) tall and 1-1/2" (38 mm) wide, this low-profile rail seamlessly aligns with the DR2S Series Low Profile Door Rails, ensuring a consistent sight line throughout your design. The extruded saddle is reversible, accommodating both 1/4" (6 mm) and 3/4" (19 mm) door clearances, which enhances versatility in installation. Designed for use with 1/2" (12 mm) tempered glass, the rail includes vinyl for a secure and polished finish. With the option of eight architectural finishes plus custom painting, you can achieve a tailored look that complements your project’s aesthetic. Ready-to-ship models are available from CRL inventory, streamlining your procurement process. For those requiring special lengths or finishes, custom orders can be easily arranged. Please note that ordering additional components, such as SREC2T Series End Caps and UCSB4 Setting Blocks, is necessary for a complete setup. Elevate your architectural designs with the C.R. Laurence SR2TMBL12240, where functionality meets refined style.
Matte Black 2-5/16" x 240" Length Low Profile Tapered Sidelite Rail With Saddle
CRL Low Profile Sidelite Rails measure only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, a perfect match for our Low Profile Door Rails. The included Reversible Saddle allows you to maintain a perfect sight line even when using a 1/2" (13 mm) threshold under the door. Choose from eight architectural finishes or custom painted. For additional information, contact Commercial Hardware Technical Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Floor Mount Saddle Included: FMS2BL
Glazing Thickness: 3/8 in. or 1/2 in. (10 mm or 12 mm)
Height: 2-5/16 in. (59 mm)
Length: 240 in. (6096 mm)
Shipping Limitations: No UPS - Common Carrier Only
Width: 2 in. (51 mm)
