CRL SR6SBL3812240 Black Powder Coat 240" x 6" Square Sidelite Rail

CRL SR6SBL3812240 Black Powder Coat 240" x 6" Square Sidelite Rail

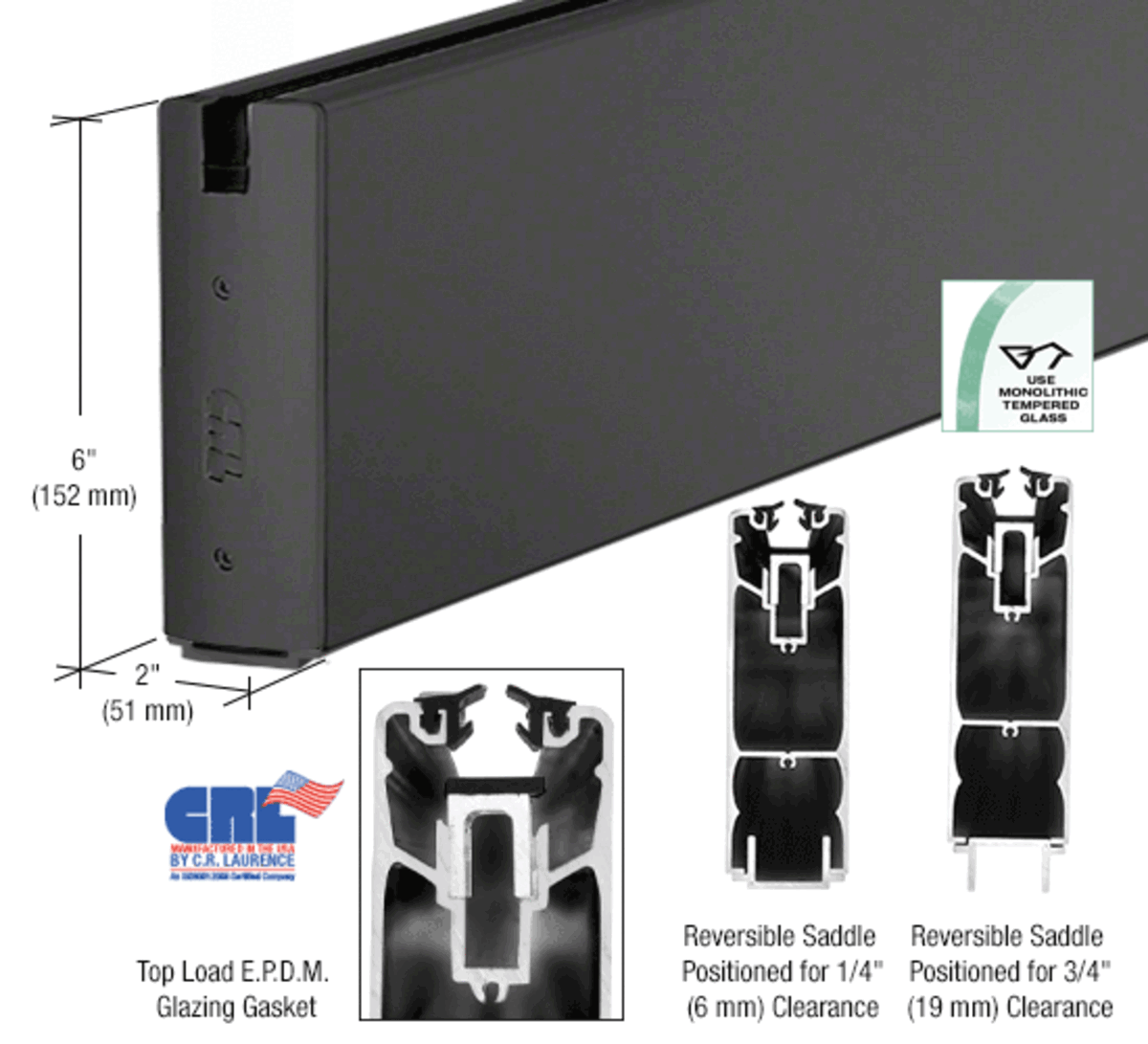

C.R. Laurence SR6SBL3812240 Black Powder Coat 240" x 6" Square Sidelite Rail offers a robust solution for securing fixed glass panels in office and storefront settings. Designed for versatility, this sidelite rail features a reversible extruded saddle compatible with both 1/4" and 3/4" door clearances, ensuring a seamless integration with existing door rails for a cohesive aesthetic. Constructed from stainless steel cladded aluminum, the SR6SBL3812240 is finished in an elegant gloss black, providing durability and a modern look. It accommodates monolithic tempered glass, featuring a roll-in glazing gasket for 1/2" (12 mm) glass, while optional vinyl for 3/8" (10 mm) glass is available separately. The installation process is straightforward, utilizing the 'lift and drop' method, and is complemented by 4" aluminum and neoprene setting blocks for optimal support. With a height of 6" (152 mm) and a width of 1-7/8" (48 mm), this sidelite rail not only meets functional needs but also enhances visual appeal. Matching door rails are available to ensure an even sightline throughout your project. Please note that end caps and specific setting blocks must be ordered separately. For cutting, a cold saw is recommended to maintain the finish integrity.

Black Powder Coat 240" x 6" Square Sidelite Rail

• Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
• Provides Even Sightline With Our Door Rails
• Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
• Ready-to-Ship Models From CRL Inventory
• Use Monolithic Tempered Glass
• Matching Door Rails Available for an Even Sightline

The CRL 6" (152 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.


Roll-In Glazing Gasket for 1/2" (12 mm) glass is included. Both 3/8" (10 mm) Roll-In Glazing Gasket and End Caps are sold separately.

ORDERING INFORMATION:
• Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.1 m) lengths.
• Custom lengths and finishes are also available.
• SREC6S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.


Product Warning:

Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.

Resources

• CRL Dry Glazed Sidelite Rail Report
• Top 4 inch Square Sidelite Rail with Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.dwg
• Top 4 inch Square Sidelite Rail with Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.pdf
• Top 6 inch Square Sidelite Rail Clad or Non Clad with Bottom 10 inch Square Sidelite Rail Clad Only CAD Drawings.dwg
• Top 6 inch Square Sidelite Rail Clad or Non Clad with Bottom 10 inch Square Sidelite Rail Clad Only CAD Drawings.pdf
• Top 6 inch Square Sidelite Rail Mounted on Header with Glazing Pocket Non Clad CAD Drawings.dwg
• Top 6 inch Square Sidelite Rail Mounted on Header with Glazing Pocket Non Clad CAD Drawings.pdf
• Top 6 inch Square Sidelite Rail Non Clad CAD Drawings.dwg
• Top 6 inch Square Sidelite Rail Non Clad CAD Drawings.pdf
• Top 6 inch Square Sidelite Rail Non Clad with Header Non Clad CAD Drawings.dwg
• Top 6 inch Square Sidelite Rail Non Clad with Header Non Clad CAD Drawings.pdf
• Top Non Clad Header with Glazing Pocket with Bottom 6 inch Square Sidelite Rail Non Clad CAD Drawings.dwg
• Top Non Clad Header with Glazing Pocket with Bottom 6 inch Square Sidelite Rail Non Clad CAD Drawings.pdf
• Top U-Channel with Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.dwg
• Top U-Channel with Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.pdf
• Top and Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.dwg
• Top and Bottom 6 inch Square Sidelite Rail Clad or Non Clad CAD Drawings.pdf
