CRL SR6SBL3812SL Black Powder Coat 6
Images may not represent actual product and finish

CRL SR6SBL3812SL Black Powder Coat 6"x120" Square Sidelite Rail

Your Price: $1,150.19
Retail Price:$1,376.98
Your Savings:$226.79(16%)
The CRL Black Powder Coat Square Sidelite Rail offers a sleek, versatile solution for securing glass panels in commercial settings.
Part Number : CRL_SR6SBL3812SL
Availability: 2 In Stock

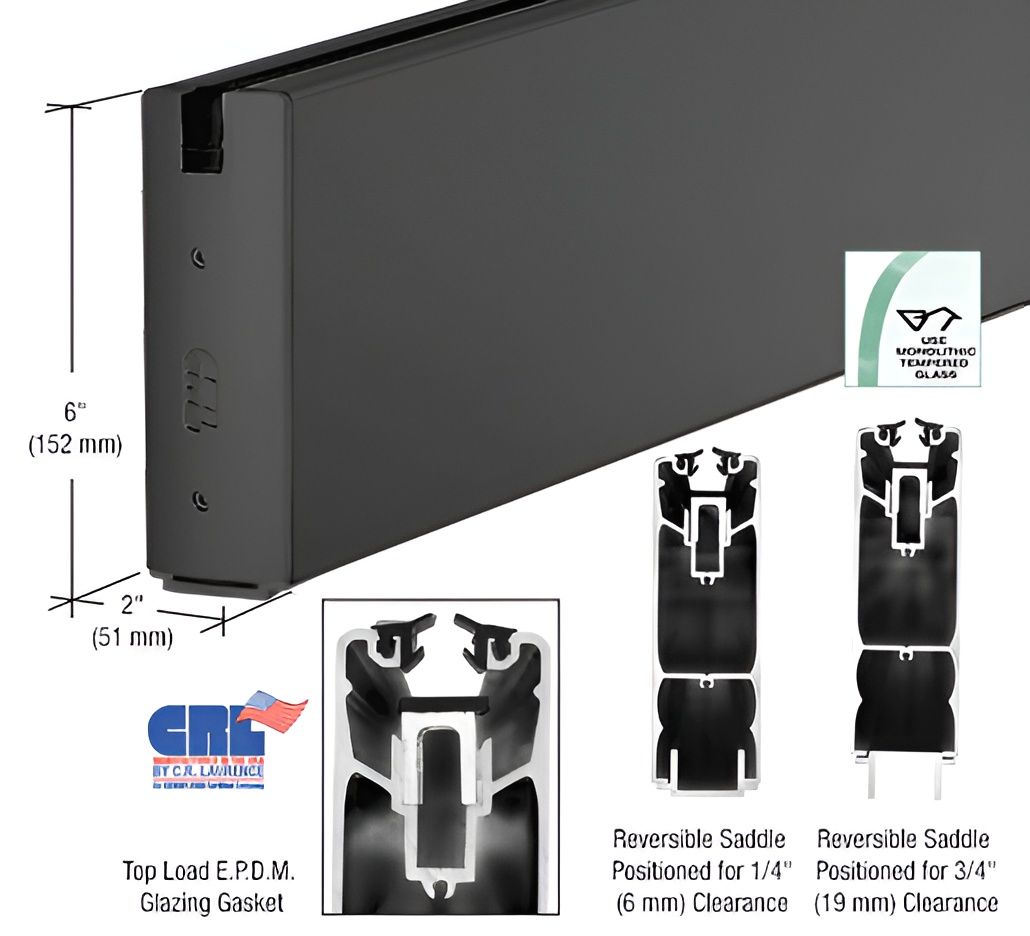

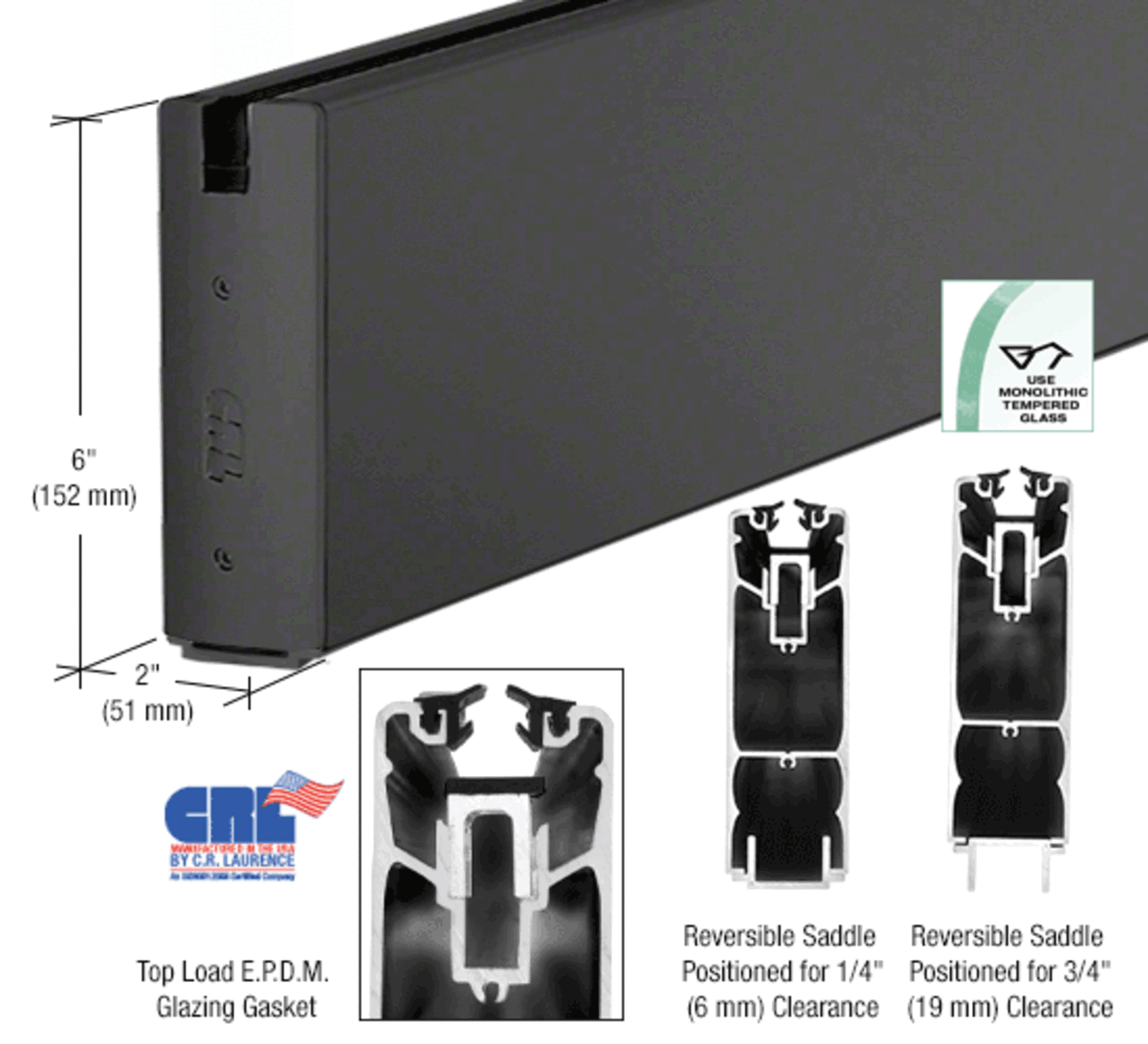

CRL SR6SBL3812SL Black Powder Coat 6"x120" Square Sidelite Rail

Black Powder Coat 6" x 120" Length Square Sidelite Rail

  • Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
  • Provides Even Sightline With Our Door Rails
  • Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
  • Ready-to-Ship Models From CRL Inventory
  • Use Monolithic Tempered Glass
  • Matching Door Rails Available for an Even Sightline

The CRL 6" (152 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.


Roll-In Glazing Gasket for 1/2" (12 mm) glass is included. Both 3/8" (10 mm) Roll-In Glazing Gasket and End Caps are sold separately.

ORDERING INFORMATION:
• Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.1 m) lengths.
• Custom lengths and finishes are also available.
• SREC6S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.


Product Warning:

Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Gloss Black

Floor Mount Saddle Included: FMS2BL

Glazing Thickness: 3/8 in. (10 mm)

Height: 6 in. (152 mm)

Shipping Limitations: No UPS - Common Carrier Only

Width: 1-7/8 in. (48 mm)
