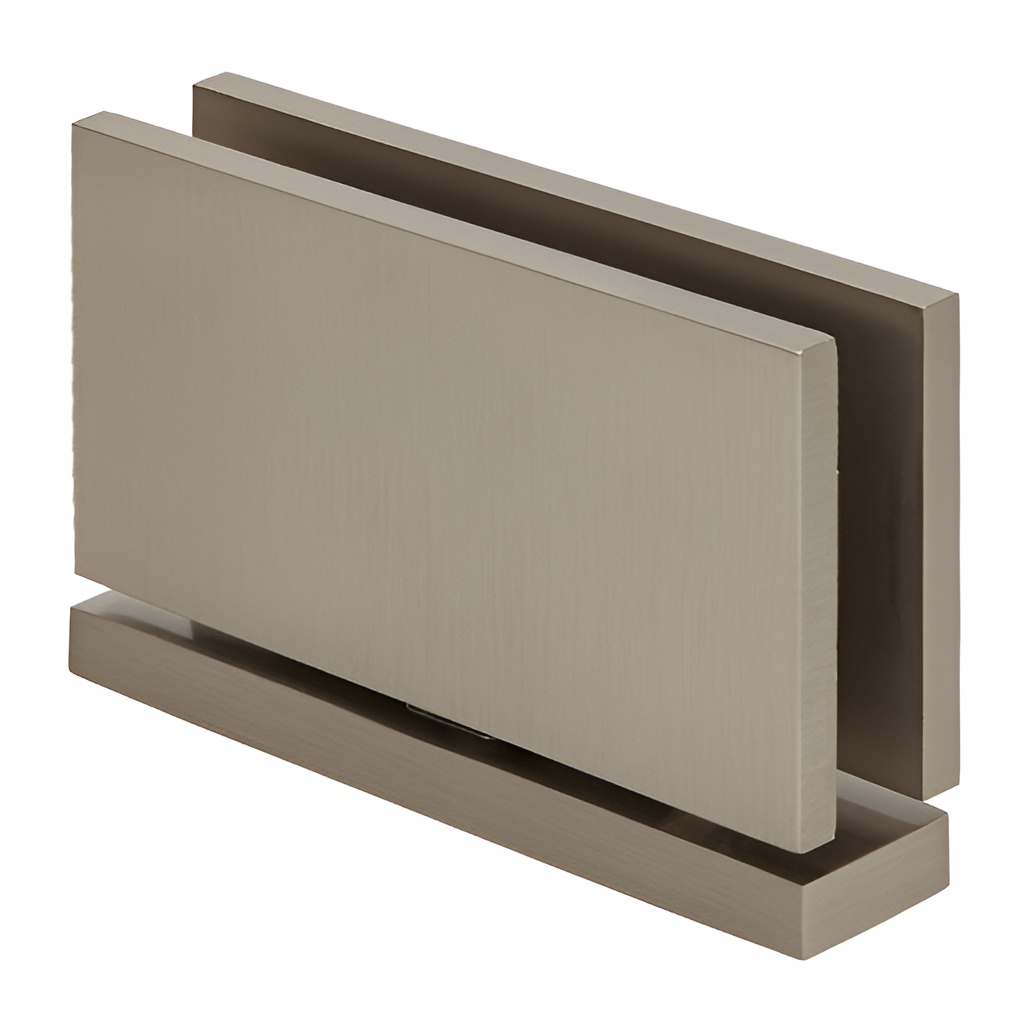

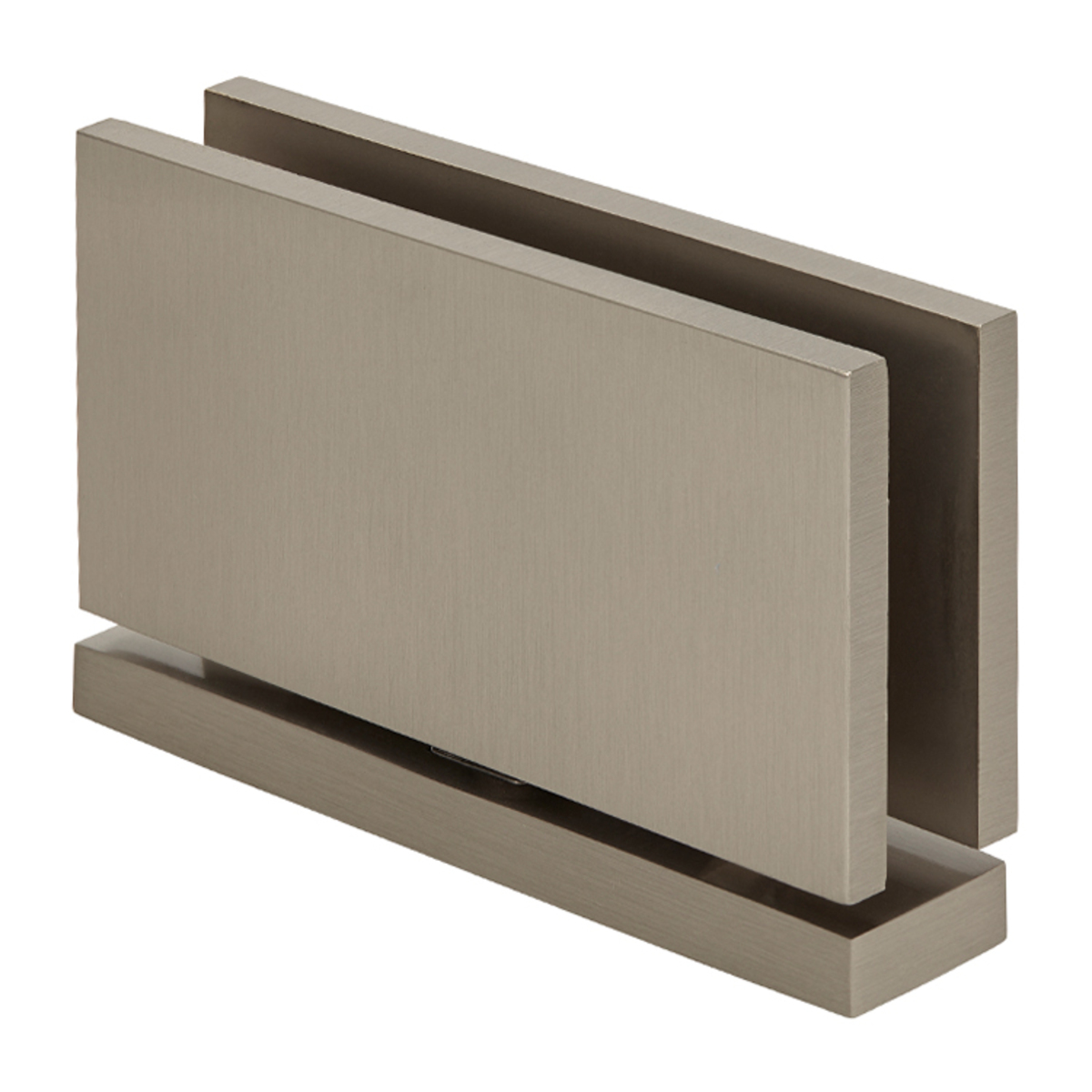

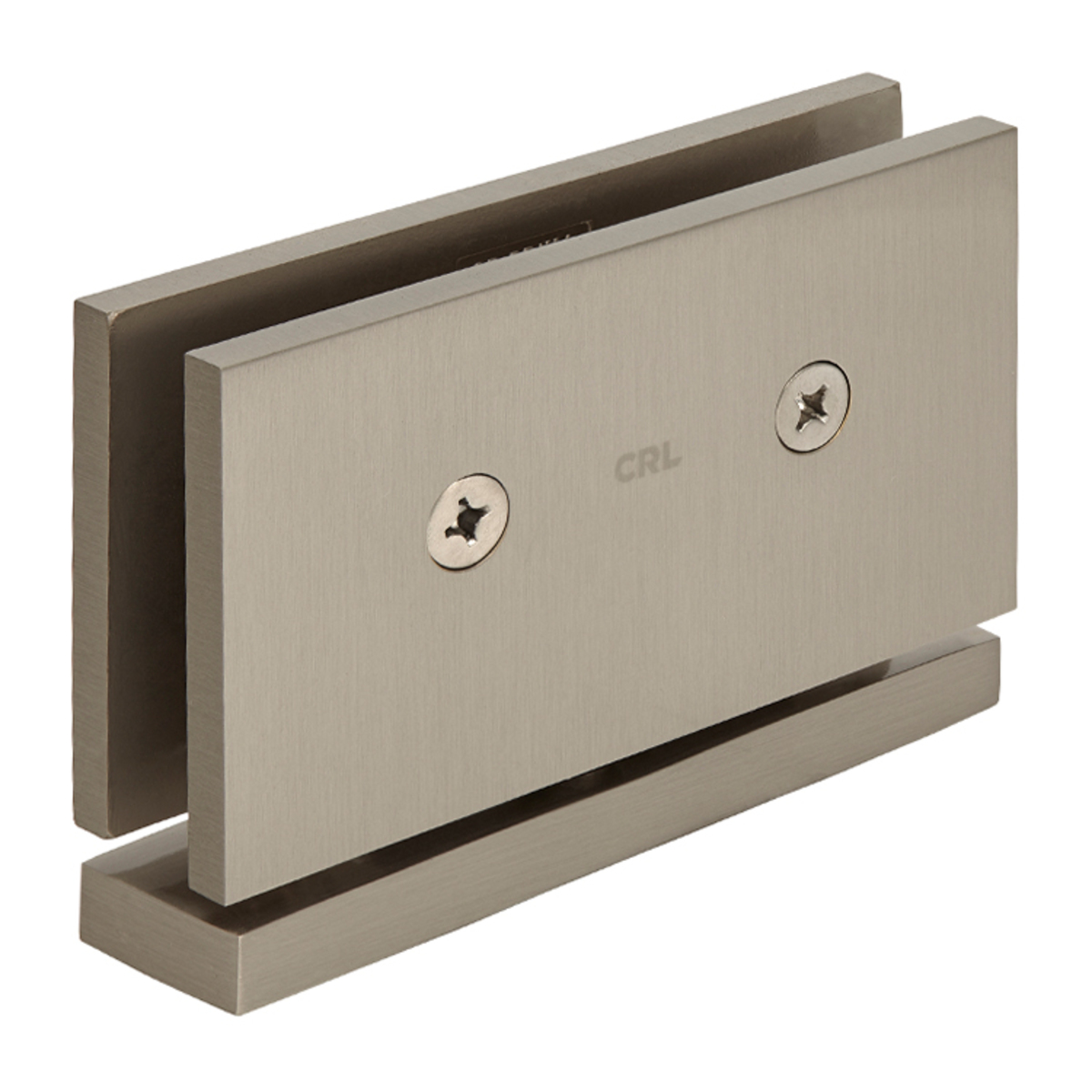

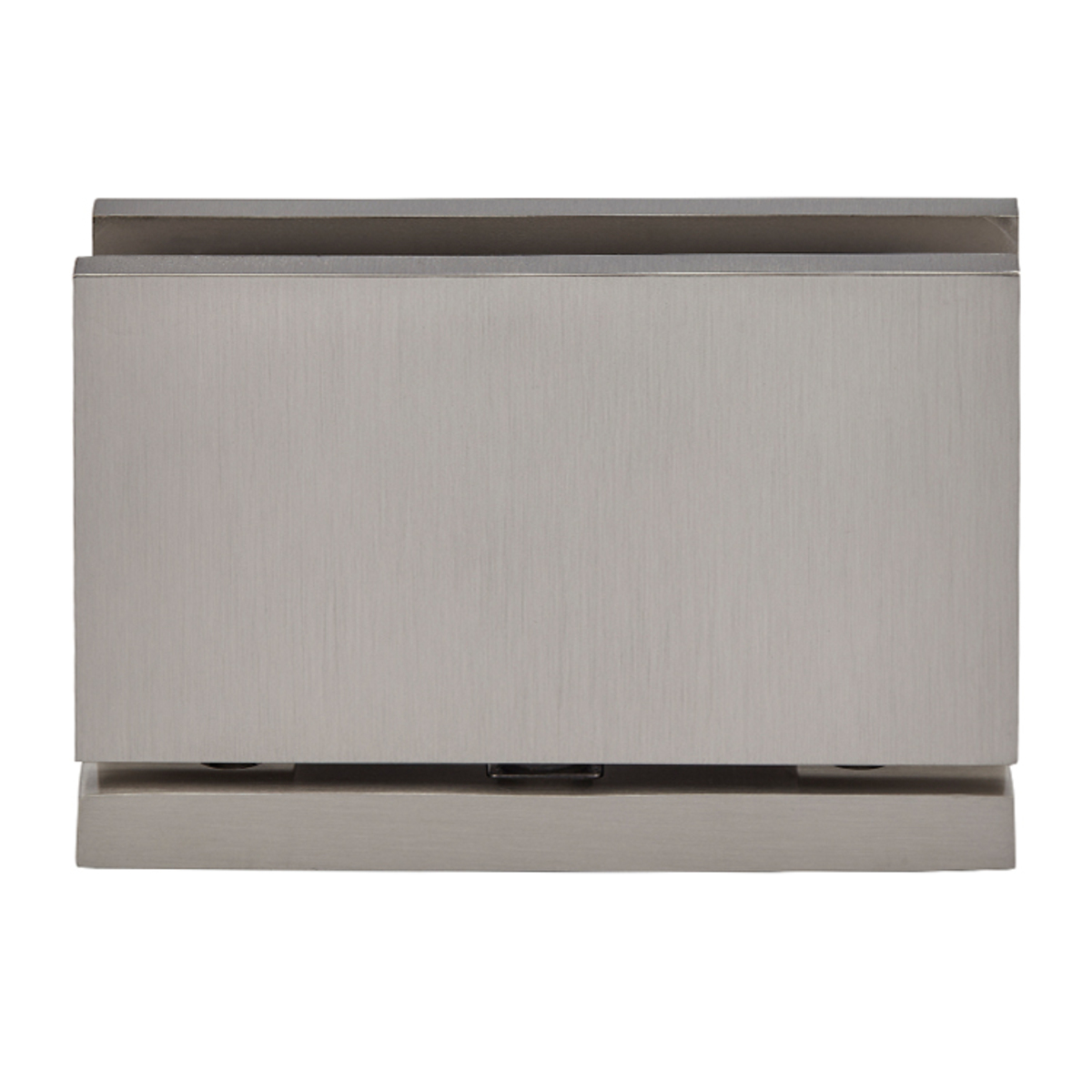

CRL SRCAR01BN Brushed Nickel Cardiff Series Senior Hinge

CRL SRCAR01BN Brushed Nickel Cardiff Series Senior Hinge

C.R. Laurence SRCAR01BN Brushed Nickel Senior Cardiff Series Hinge is expertly crafted to support 1/2" (12 mm) tempered safety glass, making it an ideal choice for both residential and hotel shower applications. This larger version of the popular Cardiff Series hinge accommodates heavier glass while delivering a sharp, traditional aesthetic with its square corners. Designed for versatility, the SRCAR01BN can be top or bottom mounted and is adaptable to the CRL Deluxe Header System using the optional Senior Adapter Block (sold separately). It features self-centering capabilities with four robust springs, ensuring maximum retention strength and a smooth operation. With a maximum door weight of 145 lbs. (66 kg) and a width of up to 36" (914 mm), this hinge is built for durability. The solid brass construction not only enhances its strength but also allows it to be stocked in various popular hardware finishes to match your design needs. Installation is straightforward, including gaskets, screws, and precise glass fabrication dimensions. The hinge supports full rotation, providing flexibility in usage, and is engineered to offer more glass exposure, potentially reducing fabrication costs compared to side mount glass-to-glass hinges. Choose the C.R. Laurence SRCAR01BN for a reliable and stylish solution for your glass door needs.

Brushed Nickel Senior Cardiff Series Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
• Square Corners for a Sharp, Traditional Look
• Use Monolithic Tempered Glass
• Adaptable to CRL Deluxe Header System
• Stocked in Many Popular Hardware Finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.


Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
