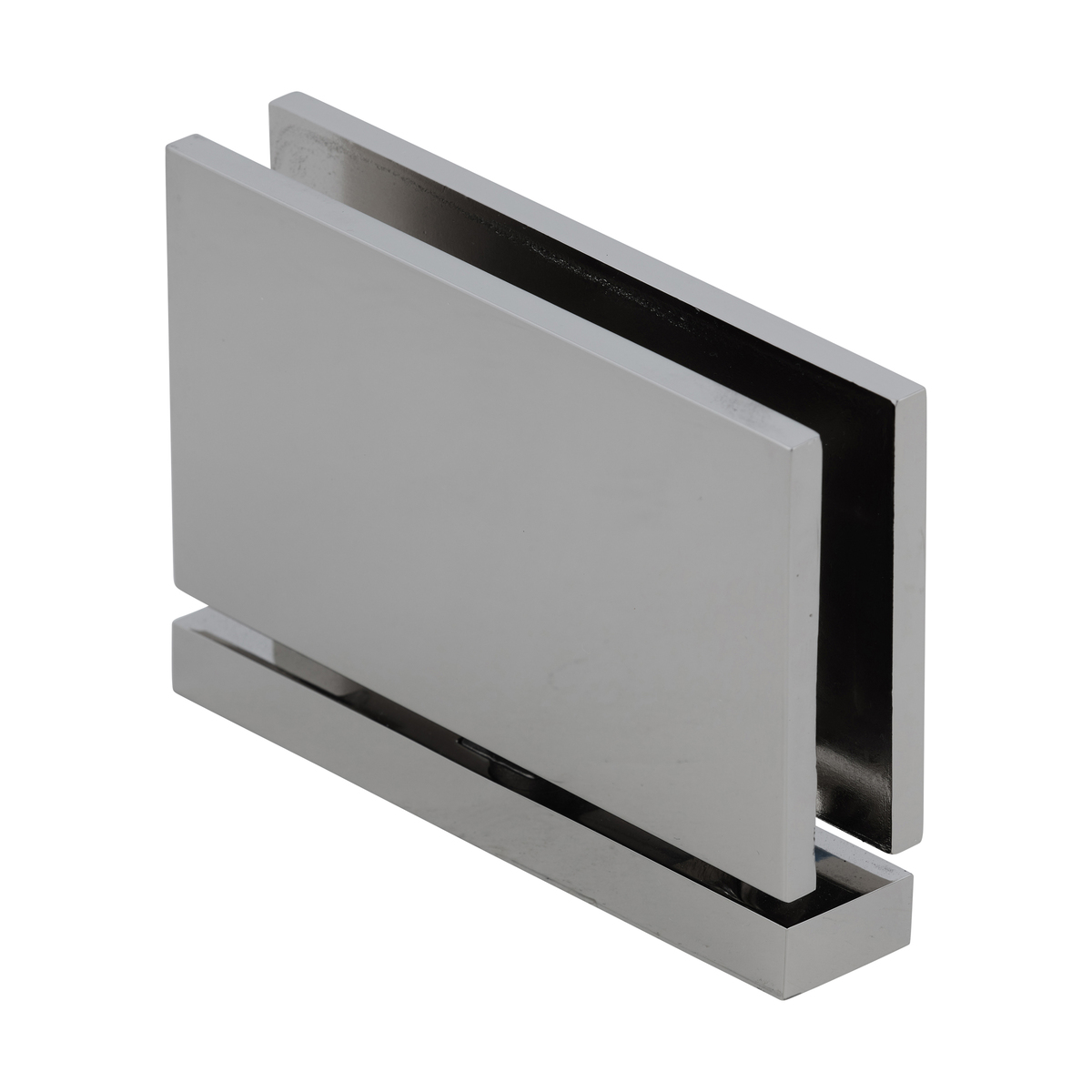

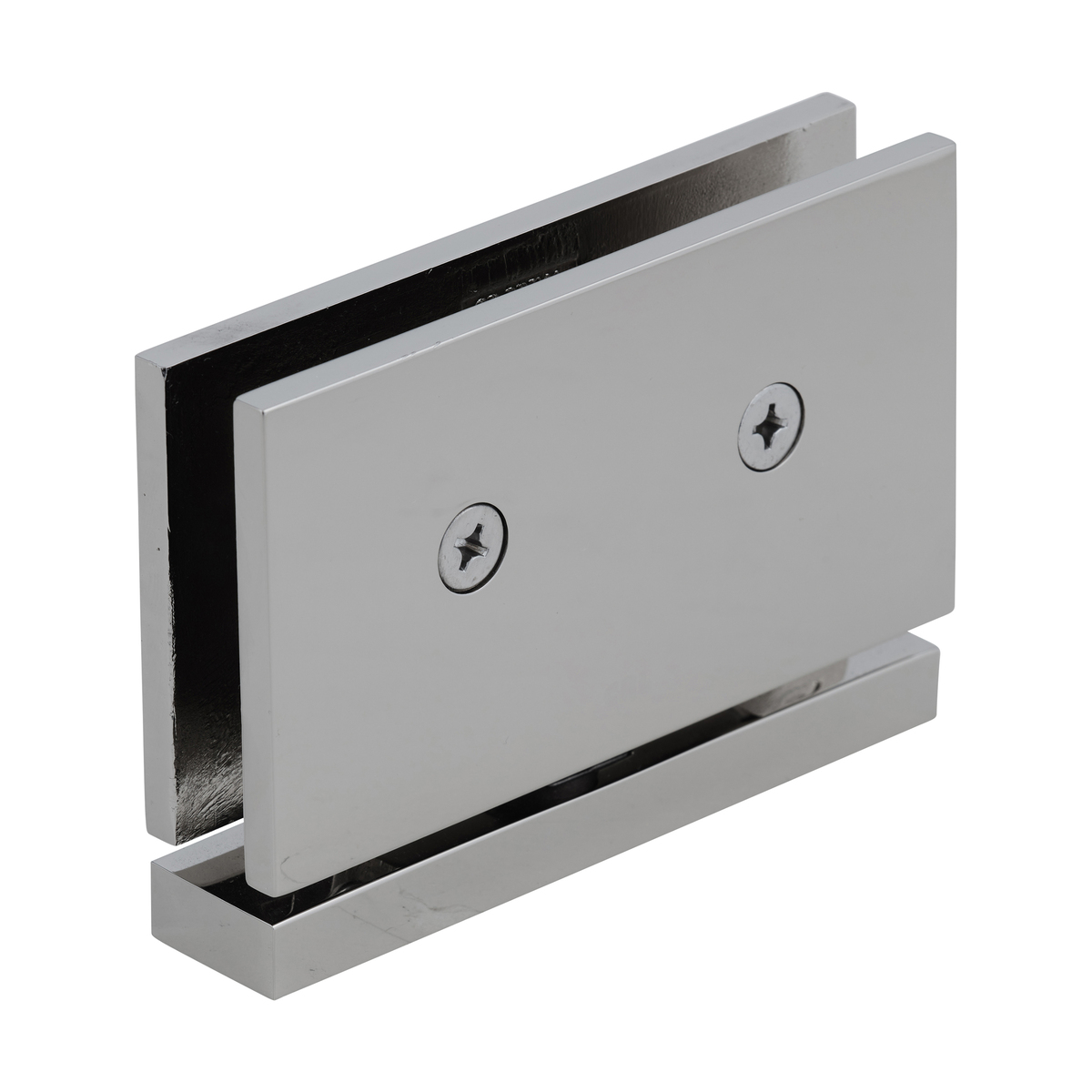

CRL SRCAR01PN Polished Nickel Cardiff Series Senior Hinge

CRL SRCAR01PN Polished Nickel Cardiff Series Senior Hinge

C.R. Laurence SRCAR01PN Polished Nickel Senior Cardiff Series Hinge is engineered for superior performance and aesthetic appeal in glass installations. This robust hinge accommodates 1/2" (12 mm) thick monolithic tempered glass, making it an ideal choice for both residential and hotel shower applications. Its top and bottom mount design allows for greater glass exposure while simplifying glass fabrication, as it requires fewer cut-outs compared to traditional side mount options. With a solid brass construction and a polished nickel finish, this hinge not only provides durability but also a sleek look that complements a variety of design styles. The self-centering mechanism ensures smooth operation and reliability, even with doors weighing up to 145 lbs. (66 kg) and a maximum width of 36" (914 mm). The hinge features square corners that enhance its traditional aesthetic, making it an attractive addition to any shower enclosure. Adaptable to the CRL Deluxe Header System, the SRCAR01PN can be easily installed with the optional SRHAB01 Adaptor Block for non-ceiling reaching enclosures. The package includes gaskets, screws, and precise glass fabrication dimensions for efficient installation. Elevate your glass applications with the quality and sophistication of the C.R. Laurence Senior Cardiff Series Hinge.

Polished Nickel Senior Cardiff Series Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
• Square Corners for a Sharp, Traditional Look
• Use Monolithic Tempered Glass
• Adaptable to CRL Deluxe Header System
• Stocked in Many Popular Hardware Finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.


Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
