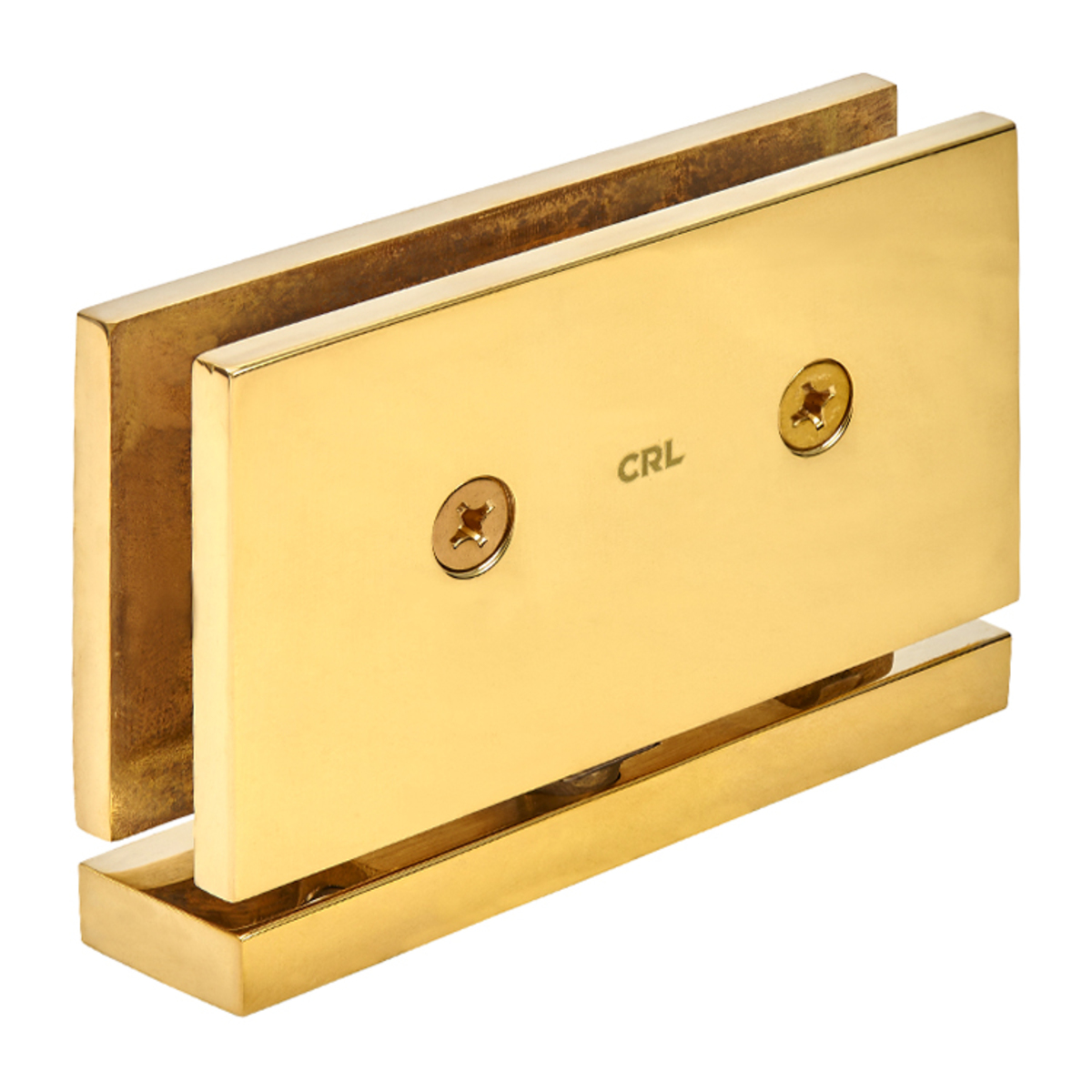

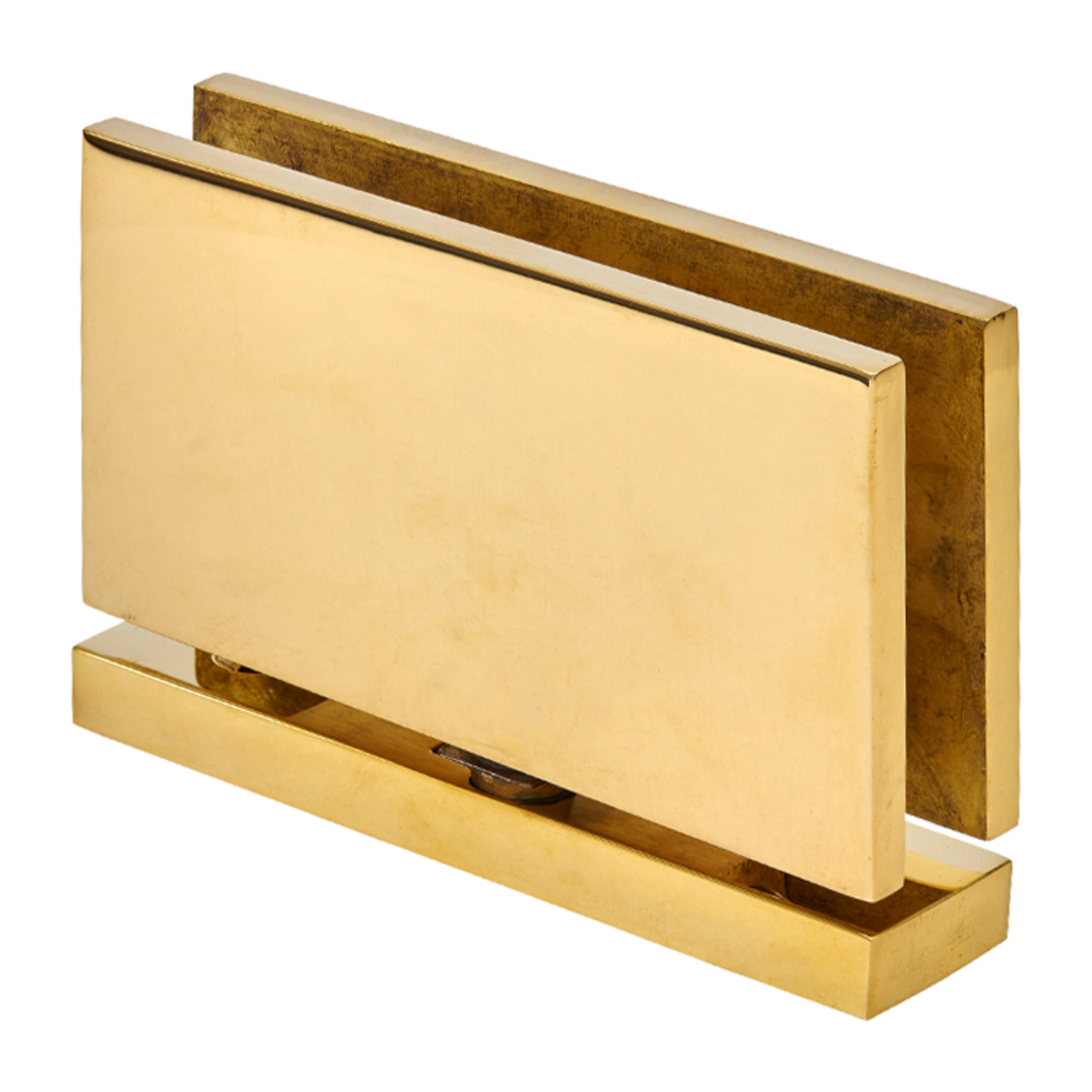

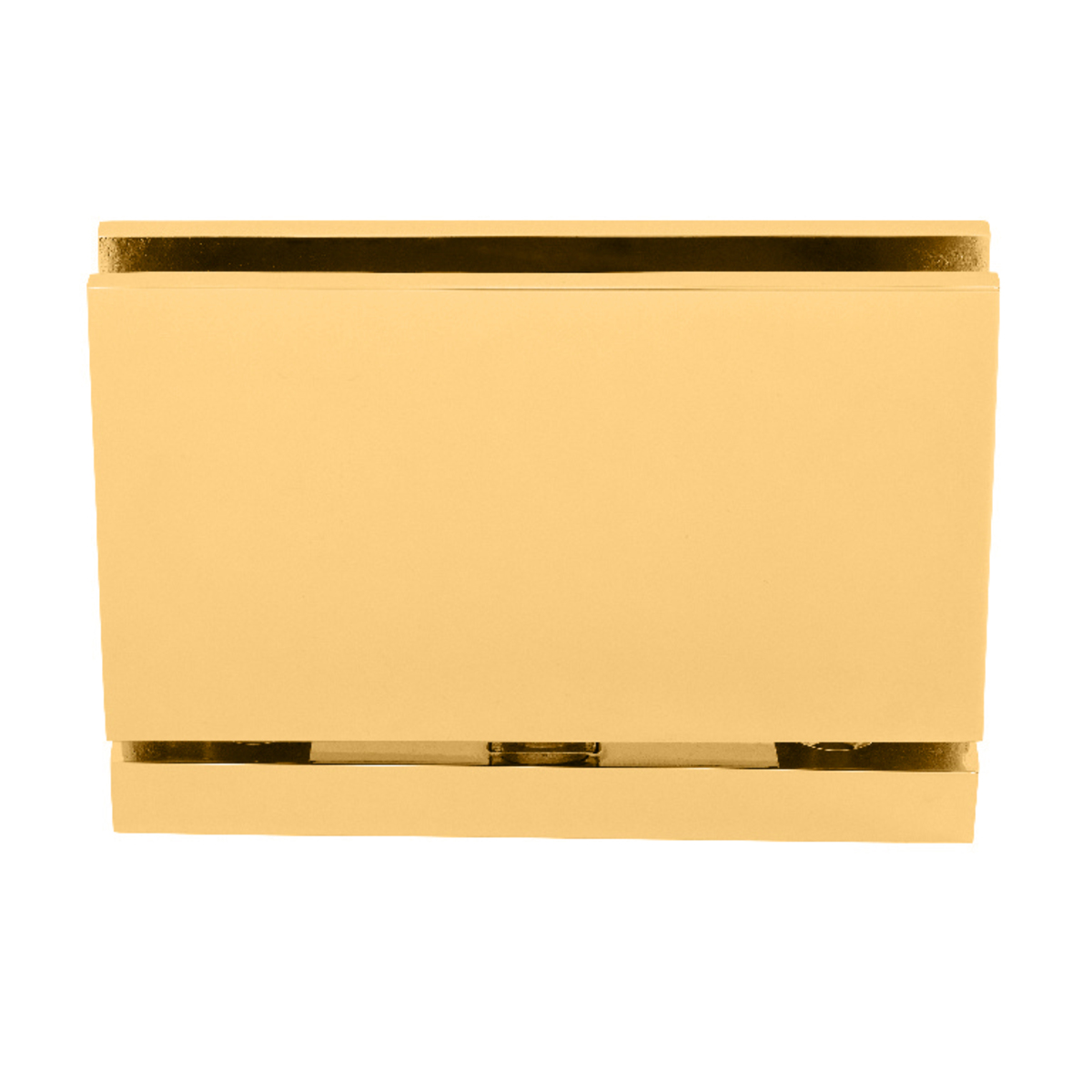

CRL SRCAR01ULBR Unlacquered Brass Cardiff Series Senior Hinge

CRL SRCAR01ULBR Unlacquered Brass Cardiff Series Senior Hinge

C.R. Laurence SRCAR01ULBR Unlacquered Brass Senior Cardiff Series Hinge offers an elegant and robust solution for accommodating 1/2" (12 mm) thick tempered glass. This larger version of the popular Cardiff Series hinge is designed for top or bottom mounting, providing versatility for various installations, including adaptability to the CRL Deluxe Header System. With its sharp square corners, this hinge delivers a traditional aesthetic while ensuring strength and durability through solid brass construction. It features self-centering functionality, backed by four strong springs that maintain maximum retention strength. The hinge is capable of supporting doors weighing up to 145 lbs. (66 kg) and measuring up to 36" (914 mm) in width, making it ideal for both residential and hotel shower applications. For added convenience, the hinge comes with gaskets, screws, and glass fabrication dimensions. The top and bottom mount design enhances glass exposure and can reduce glass fabrication costs compared to traditional side mount hinges. Note that the SRHAB01 Adapter Block must be ordered separately for ceiling-height installations. As a patented product, the Senior Cardiff Series Hinge combines functionality with style, ensuring a reliable and visually appealing solution for glass door systems.

Unlacquered Brass Senior Cardiff Series Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
• Square Corners for a Sharp, Traditional Look
• Use Monolithic Tempered Glass
• Adaptable to CRL Deluxe Header System
• Stocked in Many Popular Hardware Finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.


Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block.

NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Brass Finish Advisory:
