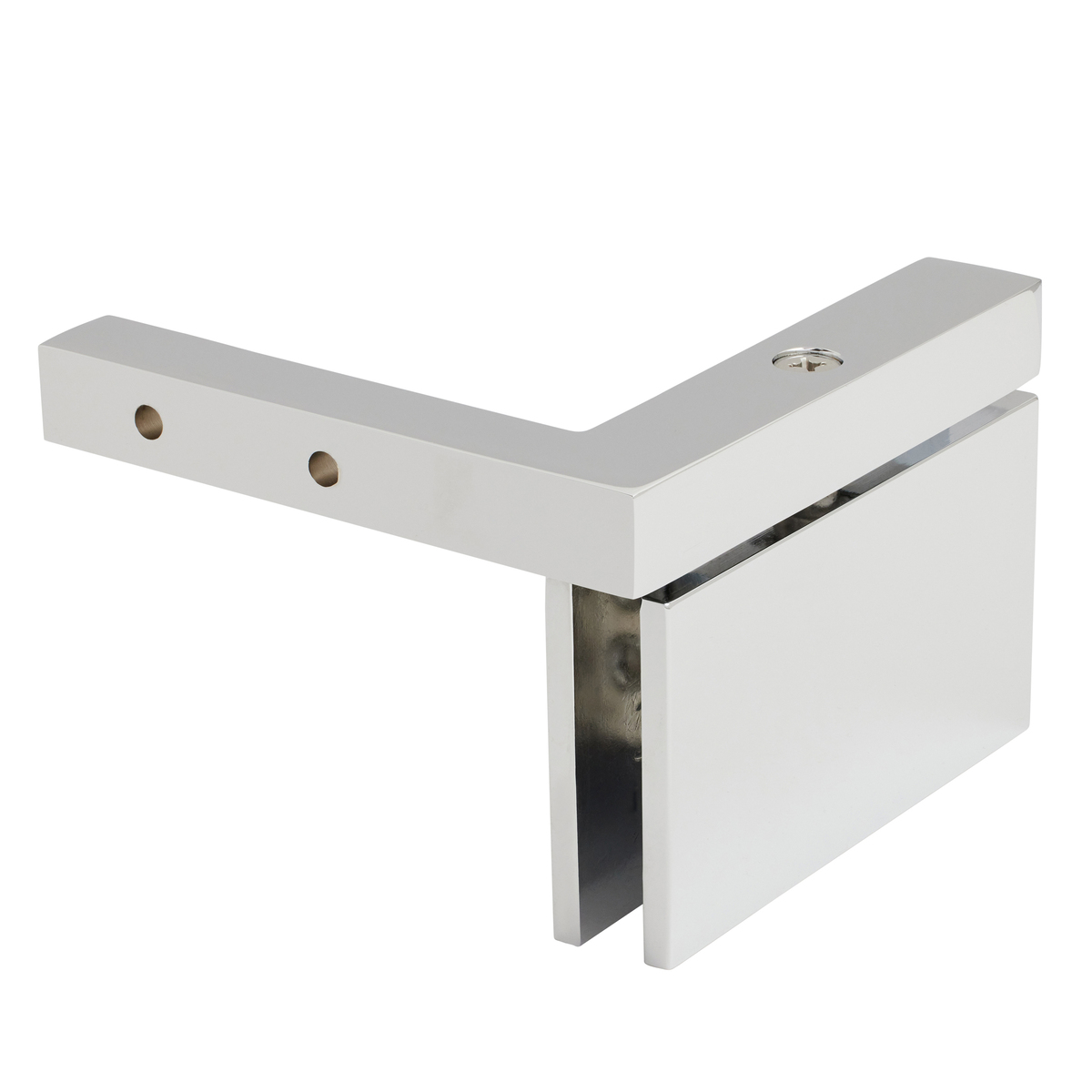

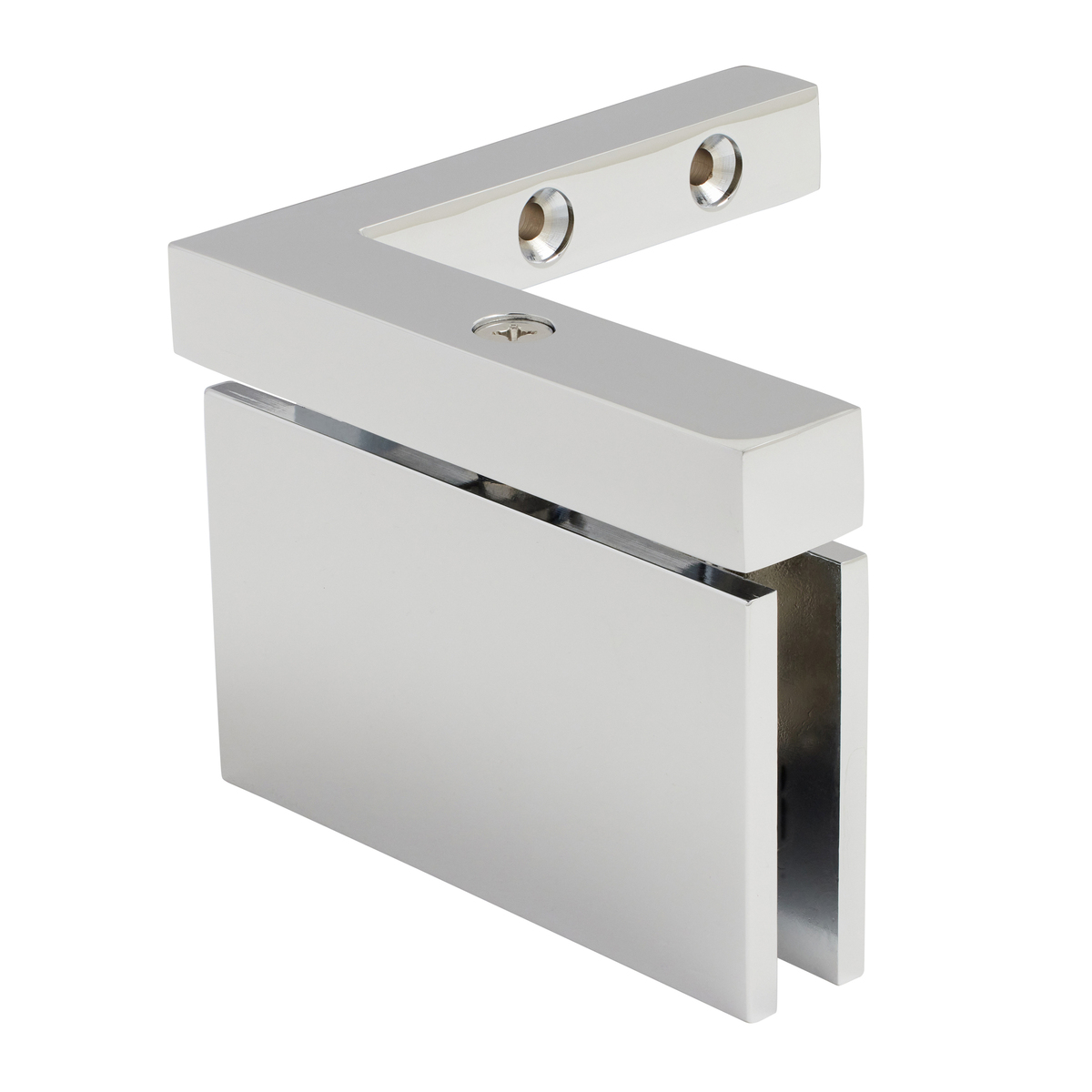

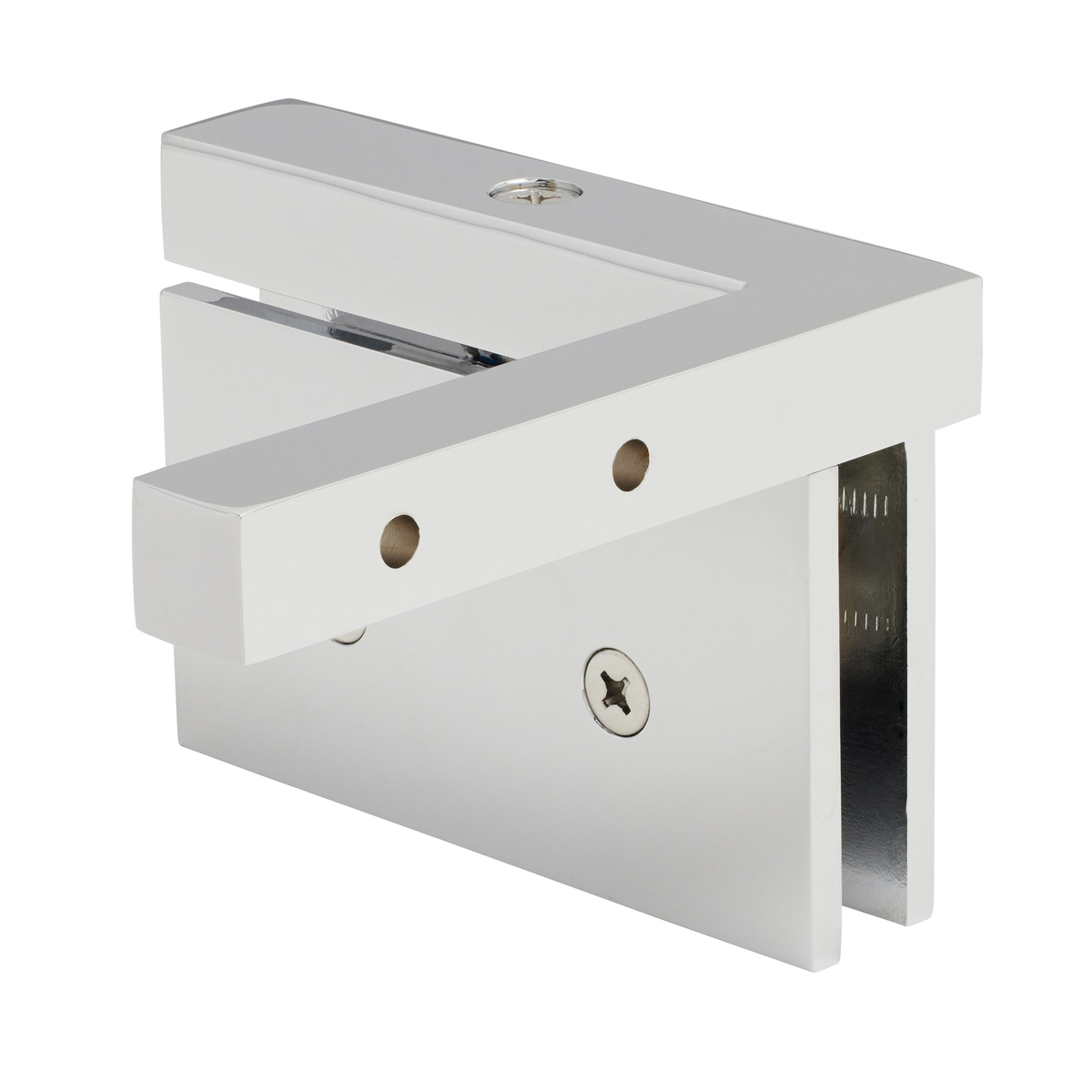

CRL SRCAR05LCH Chrome Cardiff Senior Wall Mount Offset Hinge Back Plate

C.R. Laurence SRCAR05LCH Chrome Cardiff Senior Wall Mount Offset Back Plate Hinge offers a robust and stylish solution for glass door installations. Designed specifically for 1/2" (12 mm) glass, this left-hand mount hinge provides an offset bracket that allows for greater clearance, accommodating towel bars and other projections without compromising functionality. Constructed from durable brass and finished in polished chrome, this hinge not only enhances the aesthetic appeal of any shower or glass enclosure but also ensures longevity and reliability. It features a self-centering mechanism, enhanced by an optional 5-degree pivot pin set, which allows for smooth operation and secure closure. The hinge is engineered to support doors weighing up to 145 lbs (65.8 kg) and is suitable for doors with a maximum width of 36 in. (914 mm). Additionally, the SRCAR05LCH hinge is equipped with four springs for optimal retention strength and can be used in movable transom installations when placed vertically. With its combination of strength, style, and functionality, this hinge is an excellent choice for both building professionals and discerning homeowners looking to enhance their interior spaces.

Chrome Cardiff Senior Wall Mount Offset Back Plate Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• For use with 1/2" (12 mm) glass
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Finishes

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• SRCAR05L SRCAR05R Template
