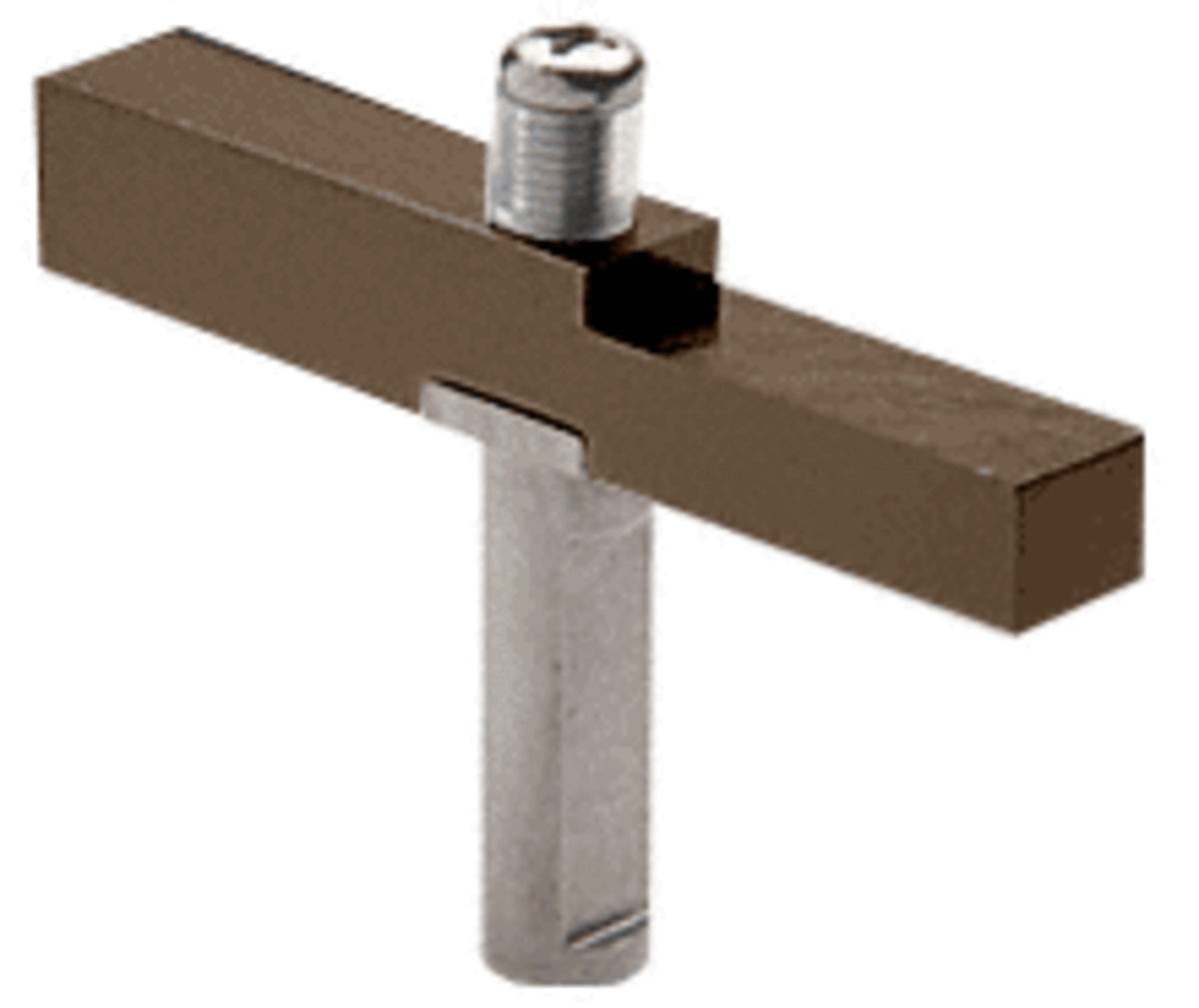

CRL SRHAB010RB Oil Rubbed Bronze Adaptor Block for Senior Prima Hinges

C.R. Laurence SRHAB010RB Oil Rubbed Bronze Adaptor Block is expertly designed for use with Senior Prima and Senior Cardiff Series hinges, providing a reliable solution for mounting these hinges into Deluxe Header Kits. This adaptor block is engineered to accommodate monolithic tempered glass, ensuring durability and safety for your installations. One of the standout features of the SRHAB010RB is its versatility; it can be adjusted sideways to any required position, allowing for precise alignment. The clearance notch is particularly useful, as it enables the block to fit seamlessly under the wall bracket when the hinge is mounted close to a wall. For installation, a drilled 1/4" (6 mm) hole in the header is required, and the hinge base plate must be removed prior to mounting. Each adaptor block comes individually packed with a screw, utilizing a robust M6X1 Pan Head screw that measures 1-1/8" long. Available in an elegant oil rubbed bronze finish, this adaptor block not only serves a functional purpose but also enhances the aesthetic of your glass installations. Constructed from high-quality brass, it is built to last, making it an essential component for any professional-grade glazing project.

Oil Rubbed Bronze Adaptor Block Used with Senior Prima Hinges

• Allows Hinges to be Mounted Into Deluxe Header Kits
• Use Monolithic Tempered Glass
• Fits Senior Prima, and Senior Cardiff Series Pivot Hinges
• Available in Several Finishes

This CRL Senior Adapter Block is commonly used with the Senior Prima (not Junior or Regular series), and Senior Cardiff Series of hinges. The Senior Adapter Block allows the hinge to be mounted directly into the Shower Deluxe Header Assembly and can be adjusted sideways to any position required. The Adapter Block has a clearance notch which allows it to fit under the wall bracket when the hinge is mounted close to a wall. A drilled 1/4" (6 mm) hole in the header is required for installation and the hinge base plate must be removed to mount the hinge to the header. Each Senior Adapter Block is individually packed with a screw and uses a M6X1 Pan Head screw, 1-1/8" long.
