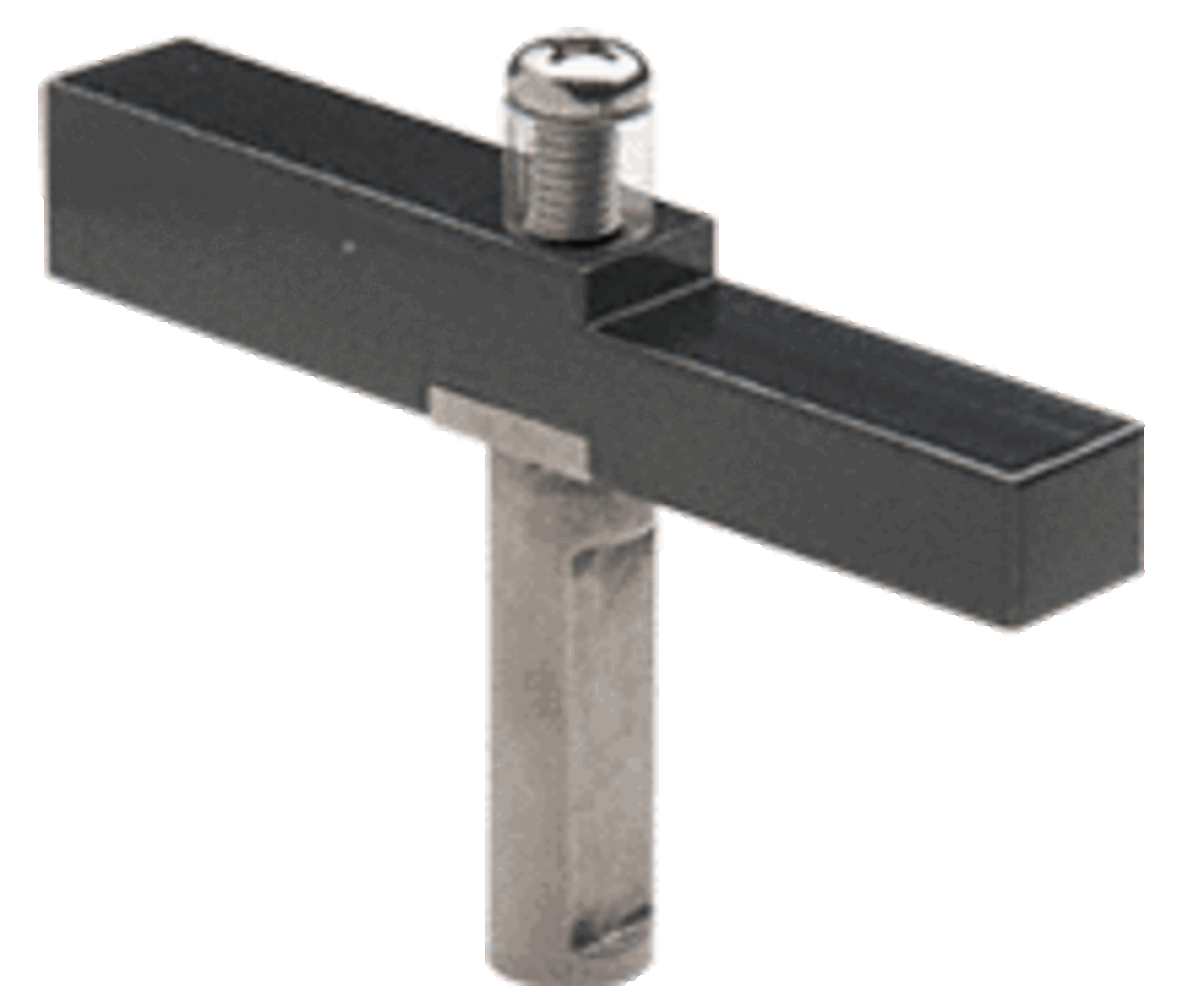

CRL SRHAB01MBL Matte Black Adaptor Block for Senior Prima Hinges

C.R. Laurence SRHAB01MBL Matte Black Adaptor Block is a vital component designed for use with Senior Prima and Senior Cardiff Series hinges. This adaptor block facilitates the seamless mounting of hinges into Deluxe Header Kits, ensuring a secure and precise installation. Crafted from durable brass, it is engineered to accommodate monolithic tempered glass with a glazing thickness of 1/2 inch (12 mm). One of the standout features of the SRHAB01MBL is its adjustable design, allowing it to be positioned sideways to meet specific installation needs. Additionally, the block includes a clearance notch, enabling it to fit conveniently under wall brackets when the hinge is placed close to a wall. Installation is straightforward, requiring a drilled 1/4 inch (6 mm) hole in the header and the removal of the hinge base plate for mounting. This adaptor block comes in a sleek matte black finish, adding a modern touch to any bathroom or shower setup. Each unit is individually packaged with a screw, utilizing an M6X1 Pan Head screw that is 1-1/8 inches long. With no shipping limitations and a professional-grade construction, the C.R. Laurence SRHAB01MBL is an essential tool for builders and homeowners looking for quality and reliability in their glazing projects.

Matte Black Adaptor Block Used with Senior Prima Hinges

• Allows Hinges to be Mounted Into Deluxe Header Kits
• Use Monolithic Tempered Glass
• Fits Senior Prima, and Senior Cardiff Series Pivot Hinges
• Available in Several Finishes

This CRL Senior Adapter Block is commonly used with the Senior Prima (not Junior or Regular series), and Senior Cardiff Series of hinges. The Senior Adapter Block allows the hinge to be mounted directly into the Shower Deluxe Header Assembly and can be adjusted sideways to any position required. The Adapter Block has a clearance notch which allows it to fit under the wall bracket when the hinge is mounted close to a wall. A drilled 1/4" (6 mm) hole in the header is required for installation and the hinge base plate must be removed to mount the hinge to the header. Each Senior Adapter Block is individually packed with a screw and uses a M6X1 Pan Head screw, 1-1/8" long.
