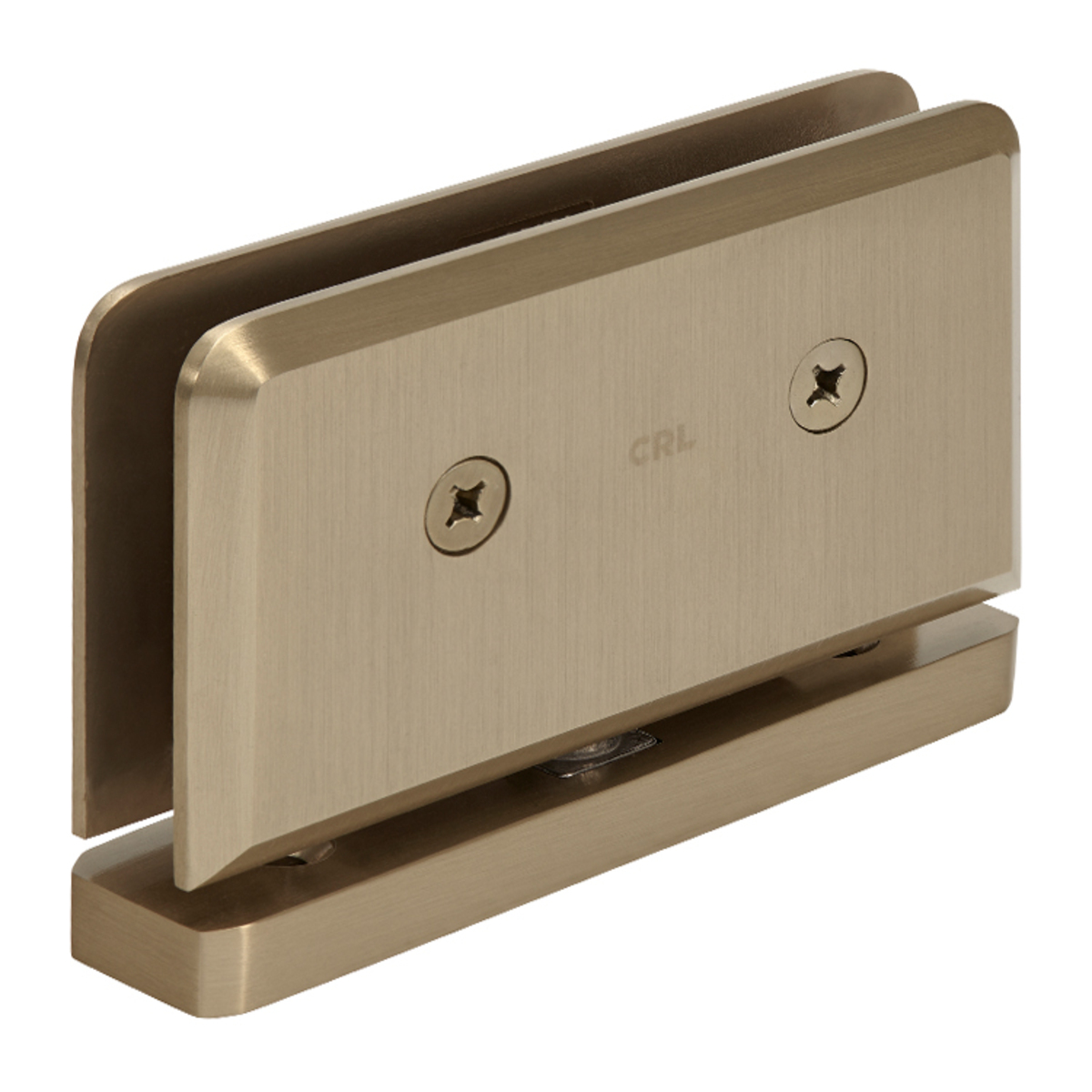

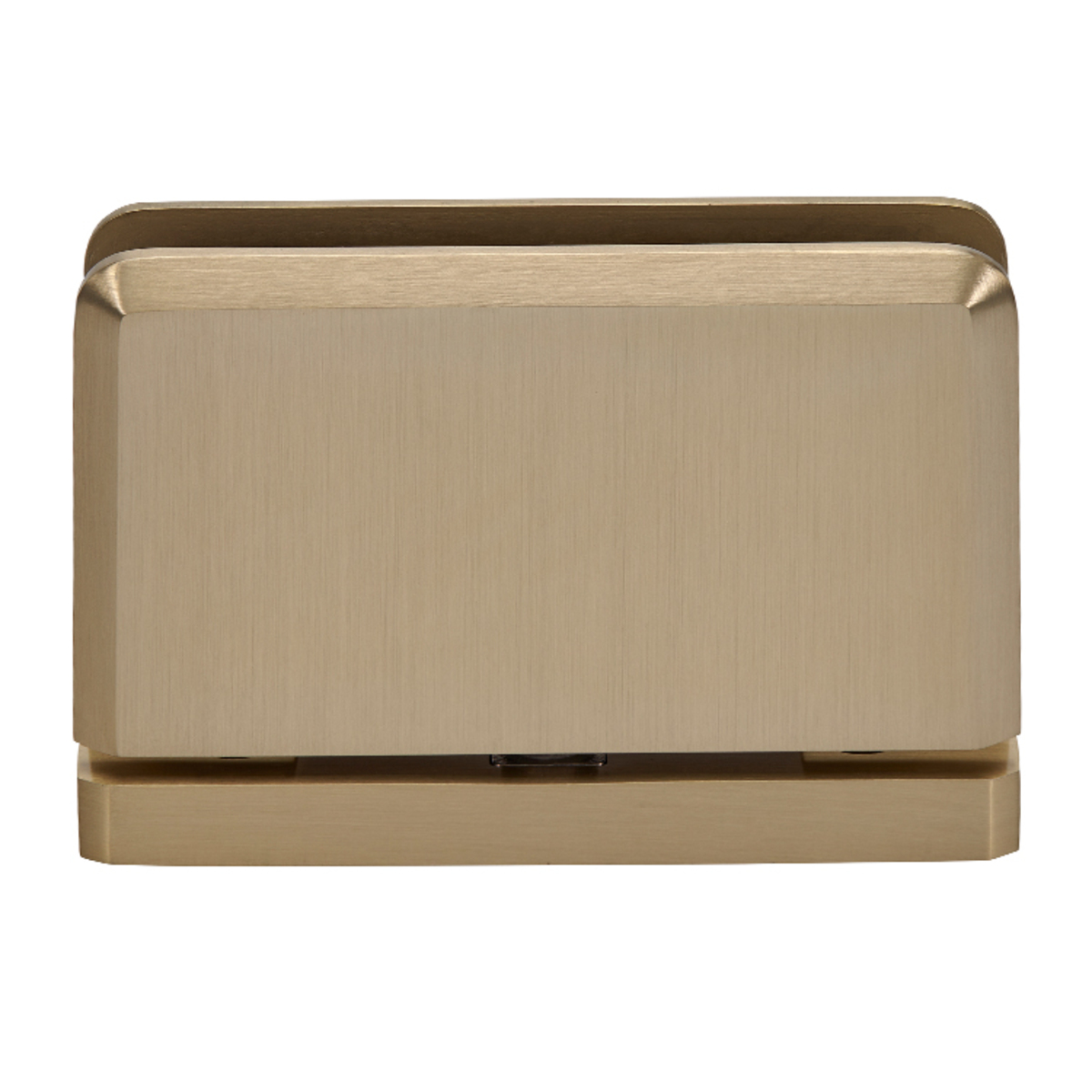

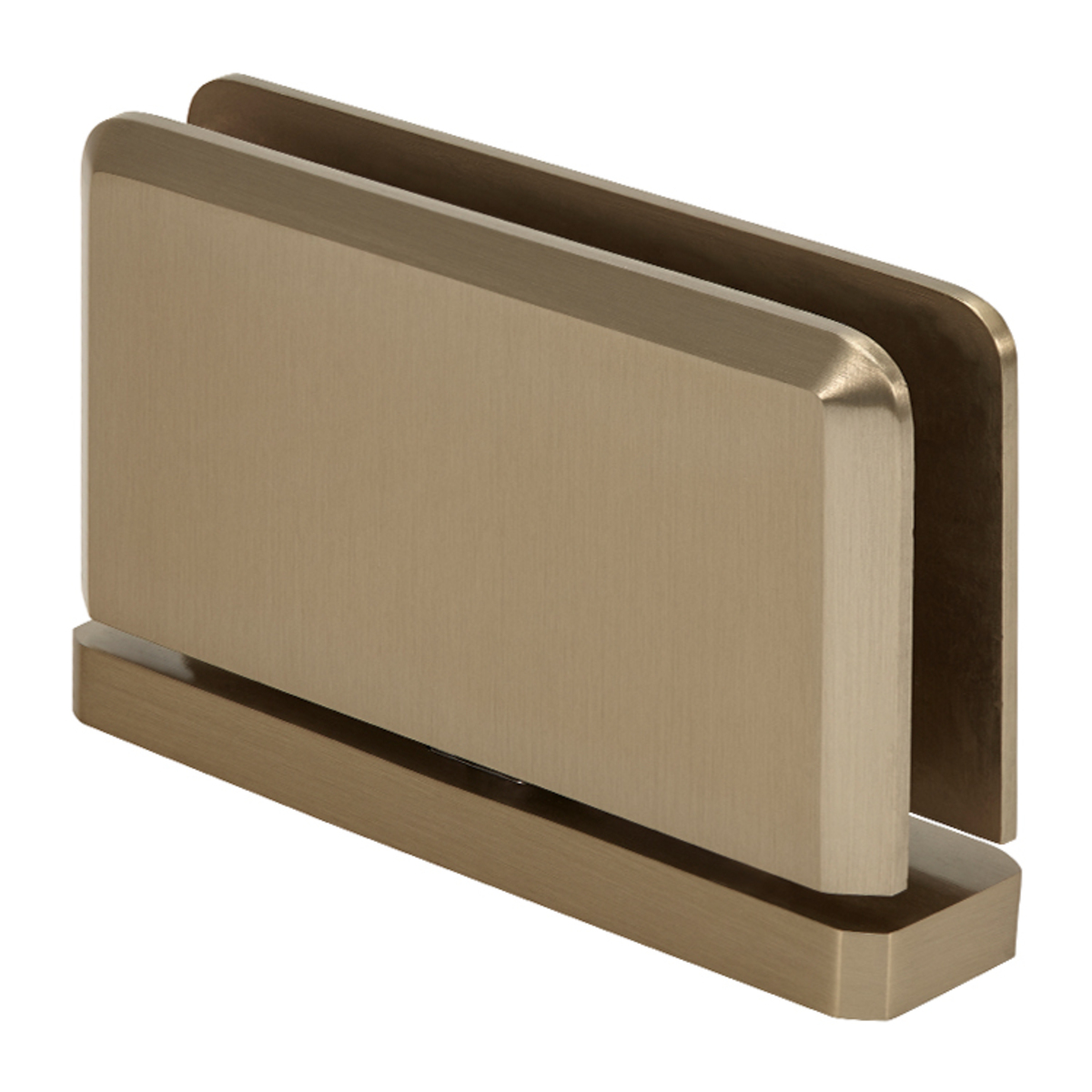

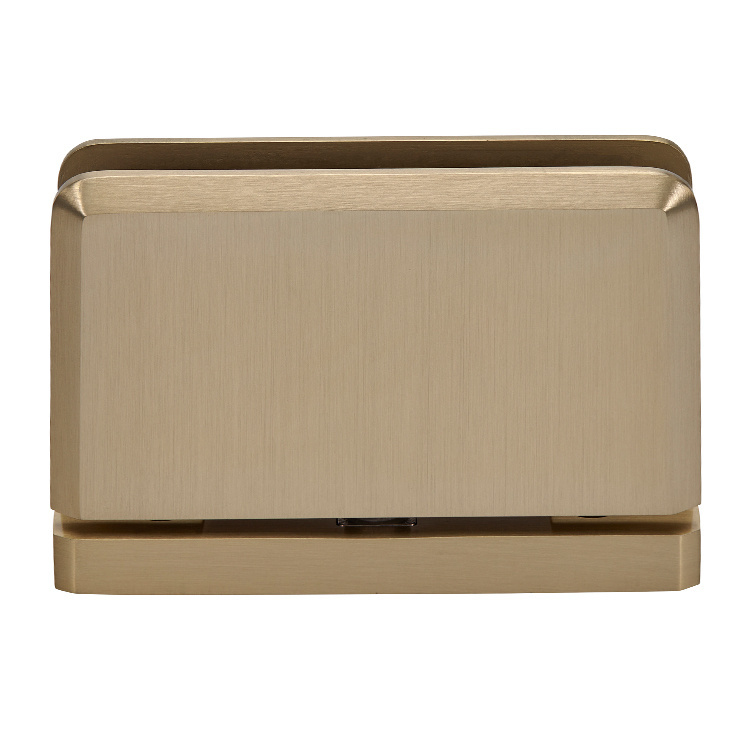

CRL SRPPH01BBRZ Brushed Bronze Prima 01 Series Top/Bottom Mount Hinge

CRL SRPPH01BBRZ Brushed Bronze Prima 01 Series Top/Bottom Mount Hinge

C.R. Laurence SRPPH01BBRZ Brushed Bronze Senior Prima 01 Series Top or Bottom Mount Hinge offers an elegant solution for mounting glass doors, suitable for both top and bottom installations. Designed specifically for 1/2" (12 mm) tempered safety glass, this robust hinge can support a maximum door weight of 145 lbs. (66 kg) and accommodates doors up to 36" (914 mm) wide. One of the standout features of the Senior Prima hinge is its innovative design that places the majority of the weight at the bottom, allowing for a cleaner aesthetic with more glass exposure. This configuration also permits the hinge to be inset from the wall, creating additional clearance for towel bars and other wall projections. With self-centering capabilities and four springs for enhanced retention strength, this hinge ensures smooth operation and durability. Crafted from solid brass and available in a beautiful brushed bronze finish, the SRPPH01 model is not only functional but also stylish. It includes gaskets, screws, and precise glass fabrication dimensions for easy installation. The hinge is compatible with the Deluxe Header System and must be paired with the SRHAB01 Senior Adaptor Block, ordered separately. With a three-year warranty and U.S. Patent 5,297,313, this hinge exemplifies quality and reliability for residential or hotel shower applications.

Brushed Bronze Senior Prima 01 Series Top or Bottom Mount Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System.


NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
