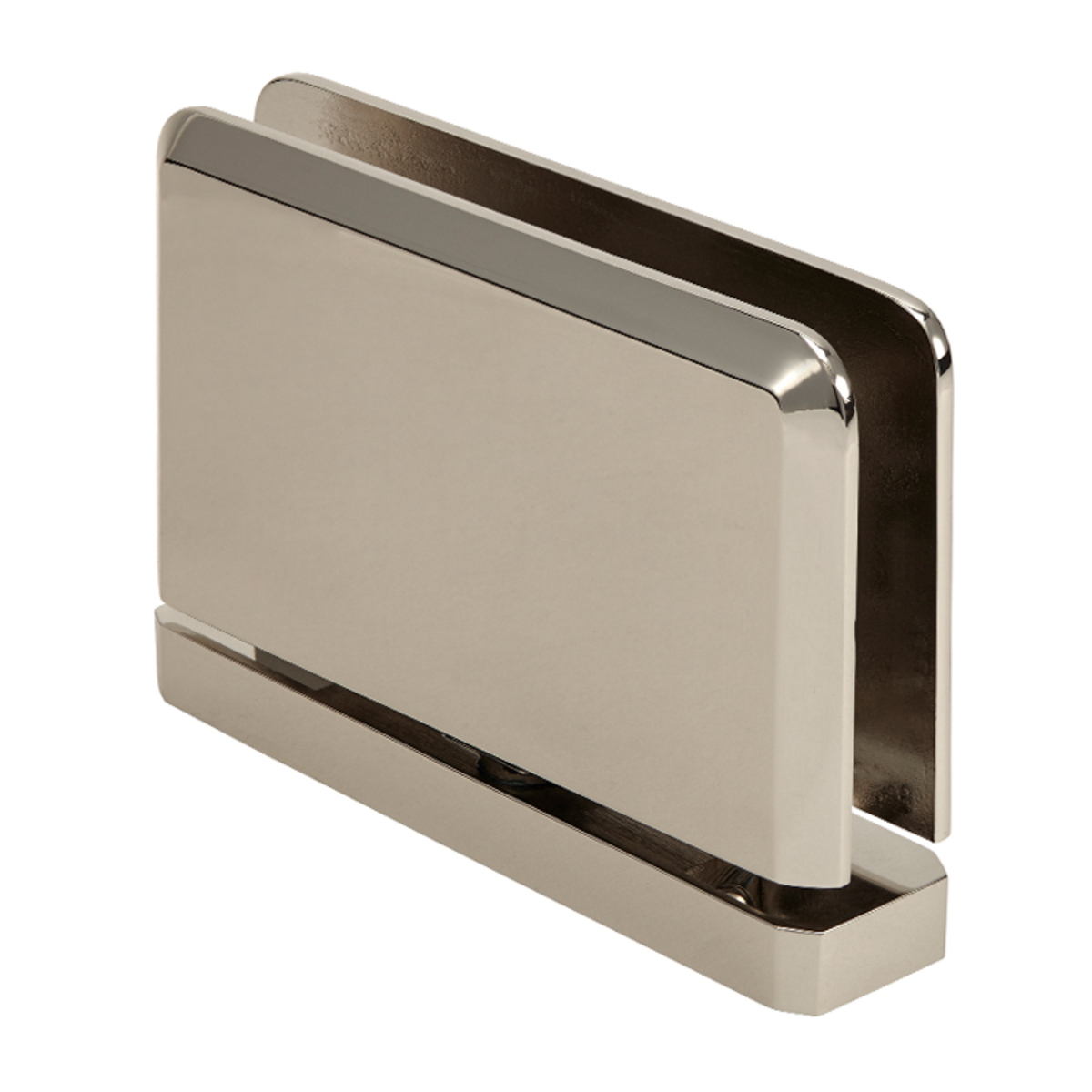

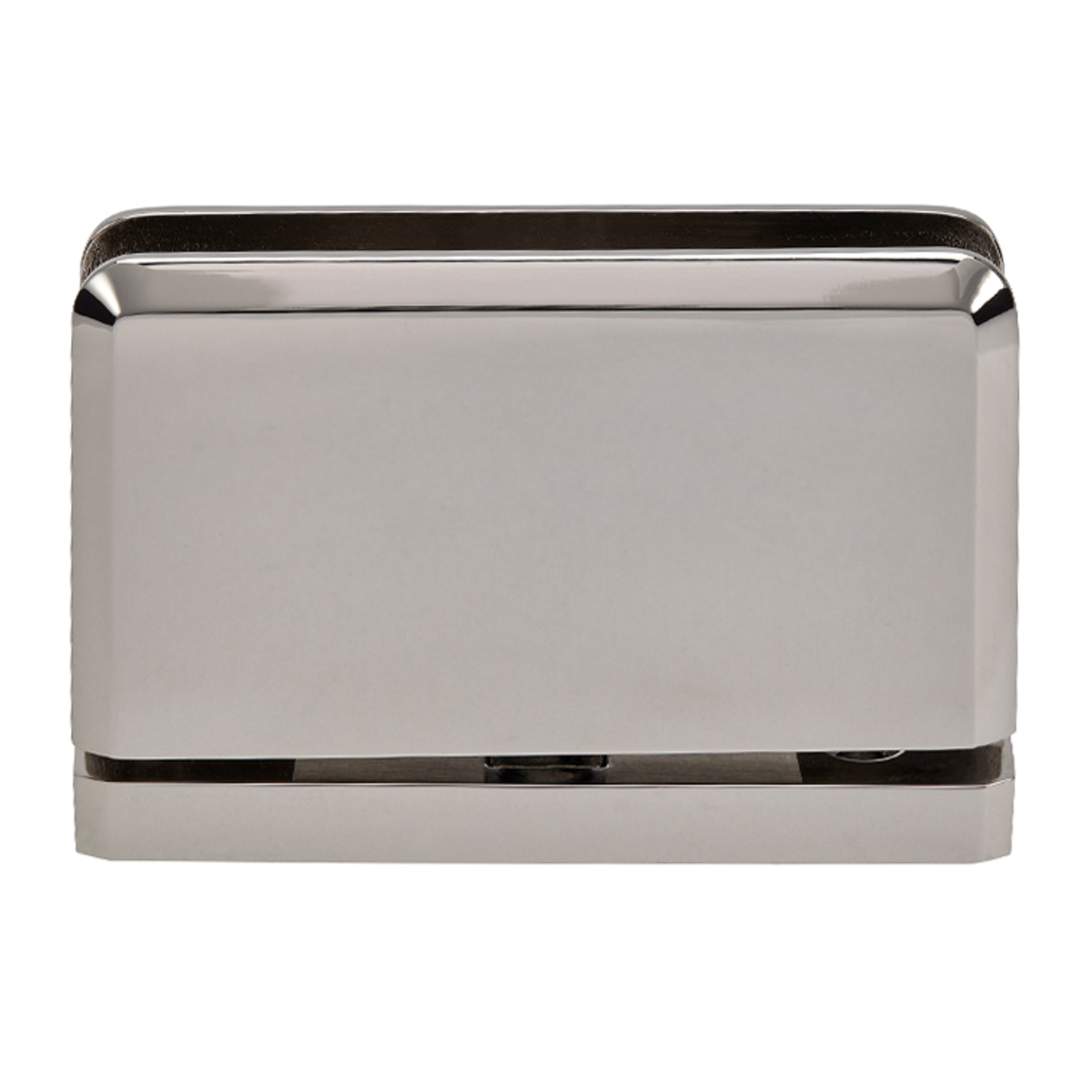

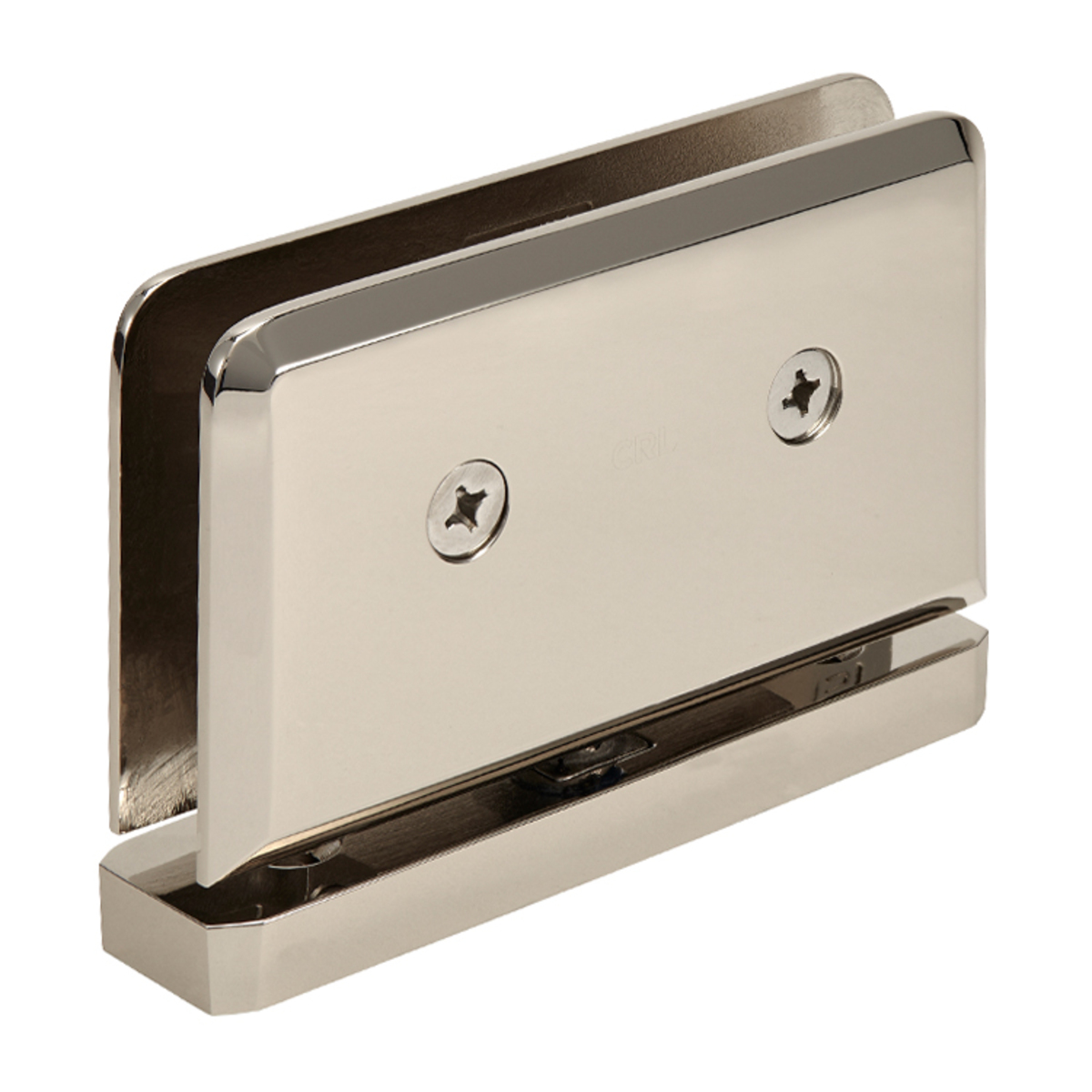

CRL SRPPH01PN Polished Nickel Prima 01 Series Top/Bottom Mount Hinge

CRL SRPPH01PN Polished Nickel Prima 01 Series Top/Bottom Mount Hinge

C.R. Laurence SRPPH01PN Polished Nickel Senior Prima 01 Series Top or Bottom Mount Hinge offers exceptional performance and elegant design for your glass installations. Engineered for 1/2" (12 mm) tempered safety glass, this hinge is a reliable choice for shower doors, providing a maximum weight capacity of 145 lbs. (66 kg) and accommodating doors up to 36" (914 mm) wide. The innovative top or bottom mount design allows for greater glass exposure and can help reduce fabrication costs compared to side mount options. With self-centering technology, the hinge ensures smooth operation and stability, closing automatically when within 15° of the closed position. Crafted from solid brass and available in a stunning polished nickel finish, this hinge is both durable and stylish, complementing various interior designs. The SRPPH01 model is compatible with the Deluxe Header System and includes gaskets and screws for easy installation. Please note that the Senior Adaptor Block (SRHAB01) must be ordered separately for optimal functionality. Make a sophisticated statement in your glass applications with the C.R. Laurence Senior Prima hinge, backed by a 3-year warranty and protected by U.S. Patent 5,297,313.

Polished Nickel Senior Prima 01 Series Top or Bottom Mount Hinge

• Top or Bottom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System.


NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
