CRL SRPPH02GP Gold-Plated Prima 02 Glass-to-Glass Mount Hinge

CRL SRPPH02GP Gold-Plated Prima 02 Glass-to-Glass Mount Hinge

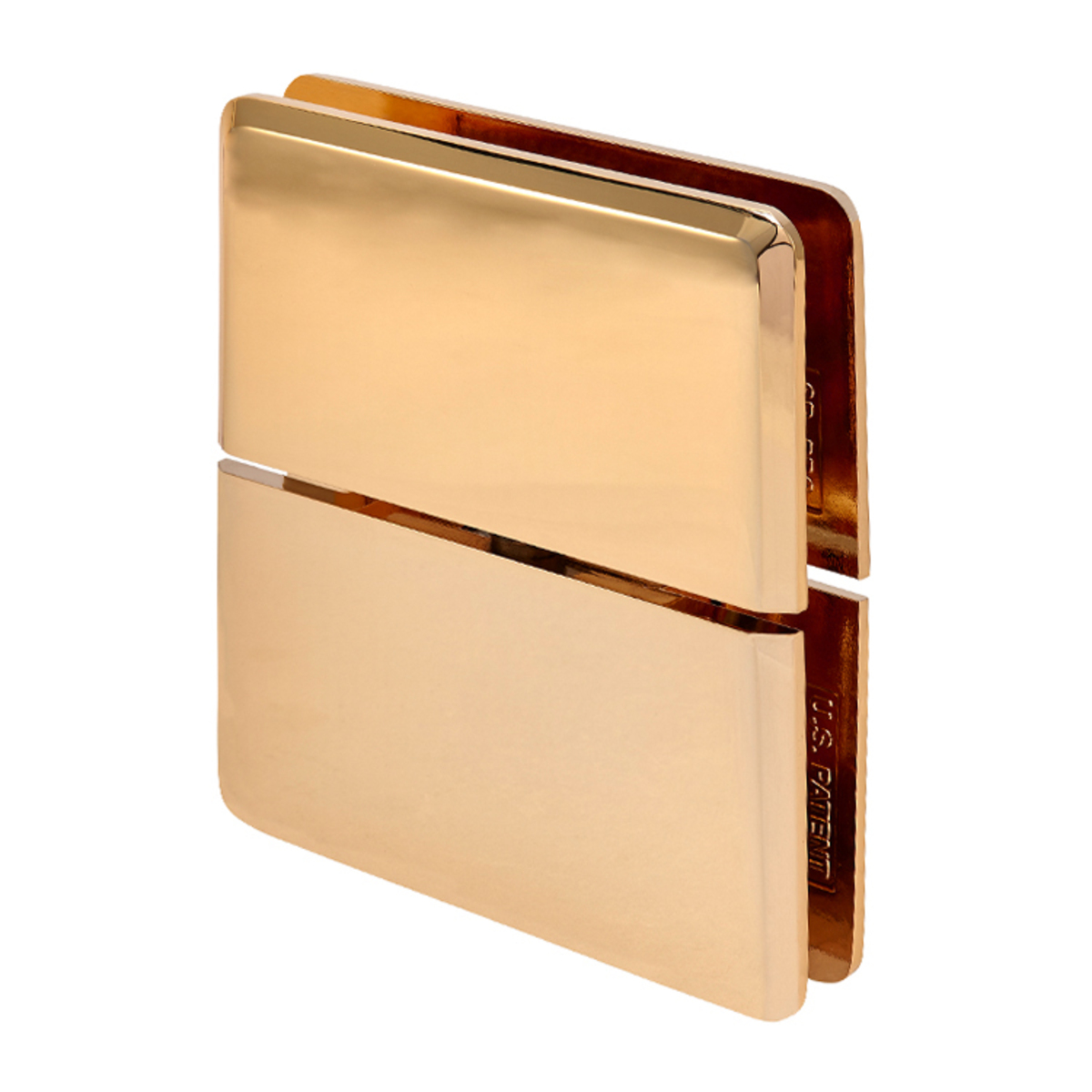

C.R. Laurence SRPPH02GP Gold Plated Senior Prima 02 Series Glass-to-Glass Mount Hinge combines elegance and functionality for your glass installations. Specifically designed for use with 1/2" (12 mm) tempered safety glass, this hinge supports a maximum door weight of 145 lbs. (66 kg) and accommodates door widths up to 36" (914 mm). The hinge features a glass-to-fixed transom mount, offering a clean and modern look while providing superior structural support. The self-centering design ensures the door returns smoothly to the closed position, enhancing user experience. With solid brass construction and a stunning gold-plated finish, this hinge not only performs well but also adds a touch of luxury to any space. Installation is straightforward, as the hinge includes gaskets and screws, along with precise glass fabrication dimensions. It is adaptable to both the Deluxe and EZ-Adjust Header Systems, making it versatile for various applications. The top and bottom mount configuration allows for greater glass exposure and can reduce fabrication costs compared to side mount hinges. Backed by a three-year warranty, the C.R. Laurence SRPPH02GP hinge is an exceptional choice for residential and hotel shower doors, ensuring lasting performance and style. Custom finishes are available upon request, making it easy to match your design vision.

Gold Plated Senior Prima 02 Series Glass-to-Glass Mount Hinge

• Glass-to-Fixed Transom Mount
• For Use with 1/2" (12 mm) Glass
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.


SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
